Description
UR-ZG-GC Instruction.pdf
--

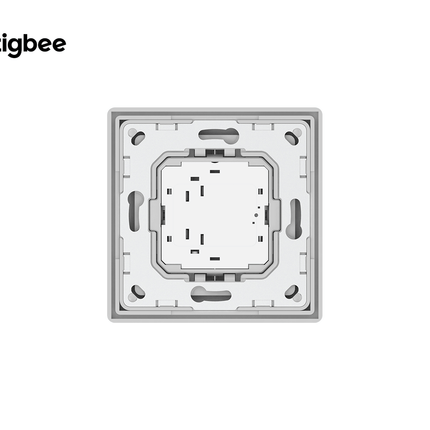

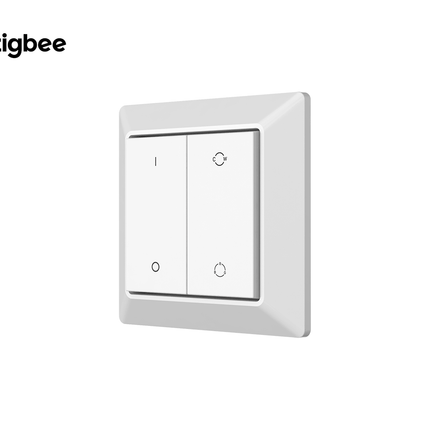

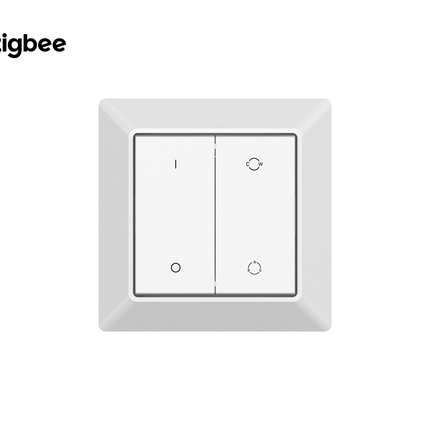

ZigBee Kinetic Eco Green Power Switch
Download UR-ZG-GC Instruction.pdf for installation support.
Features
- Self sufficient, self powered ZigBee EGP switch, no battery replacement or re-installation costs.
- Kinetic energy switch, no wires, no batteries, no worries. Hakuna Matata
- 2.5 GHz global operation
- Ultra adaptable, 1 switch can control 4 styles of light devices: DIM (single colour dimming), CCT (Dual White), RGBW (RGB + White), RGBCW (RGB + CCT)
- Transmission range of between 10M and 30M
- Super efficient with low energy consumption. Eco green power technology makes it ideal for environmentally friendly commercial fitouts.
- Tenacious, ultra long life allows for over 1 million button pushes
- Simple, quick pairing to ZigBee lighting compatible devices, no gateway needed
- Every light device can be paired to a maximum of 20 EGP switches
- UK standard size, compatible with existing frames and adapter switches
Specifications
General
-
Part Number: UR-ZG-GC
-
Product Type: ZigBee Kinetic Eco Green Power Switch (Self-reliant)
-
IP Rating: IP20
-
Brand: Uprise
Electrical
-
Power Supply: Kinetic Power (Self click operation)
-
Input Voltage: 12-24VDC
-
Output Current: 5CH, 4A/CH
-
Output Power: 240-480W
-
Output Type: Constant Voltage
Product Data
-
Protocol: ZigBee 3.0
-
Channels: 5 channels
-
Transmission Frequency: 2.4GHz
-
Transmission Range: 10-30M
Dimensions
-
Width: 46.5mm
-
Height: 16mm
-
Length: 145mm
Guarantee
-
Certification: CE, RoHS
-
Warranty: 5 Years
Packaging
-
Packaging: White cardboard box
-
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
