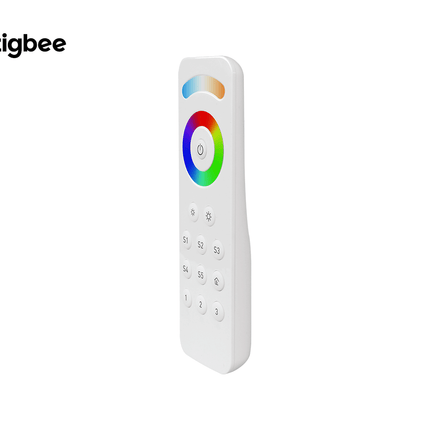

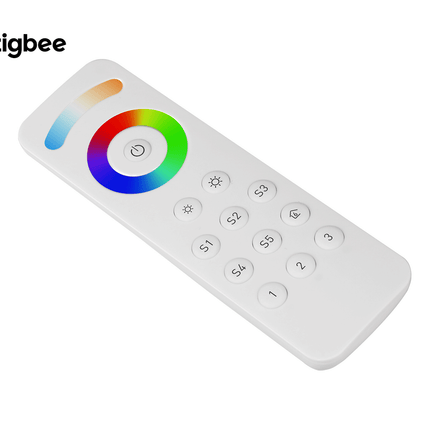

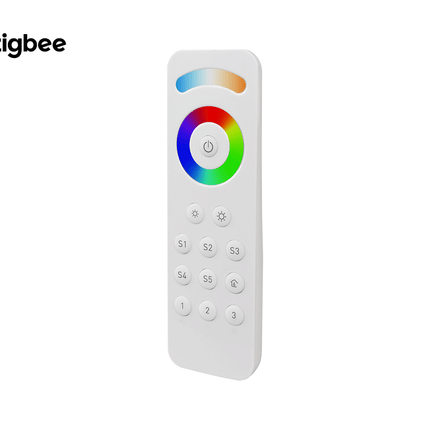

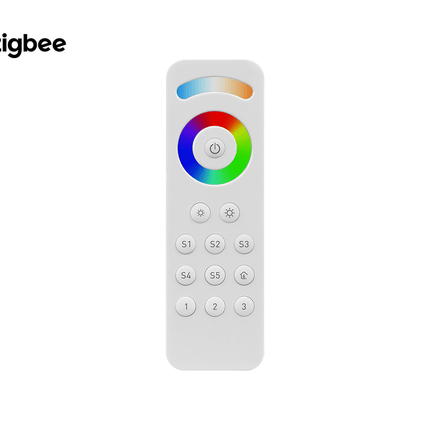

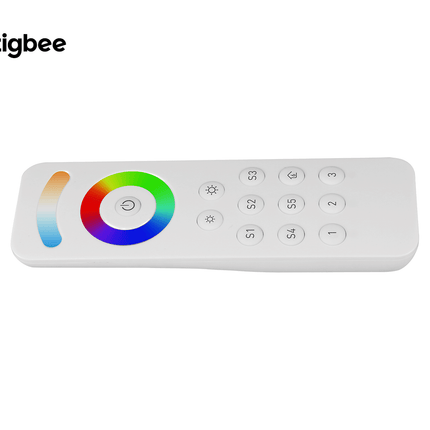

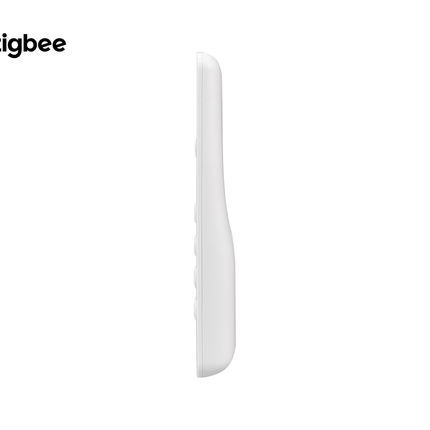

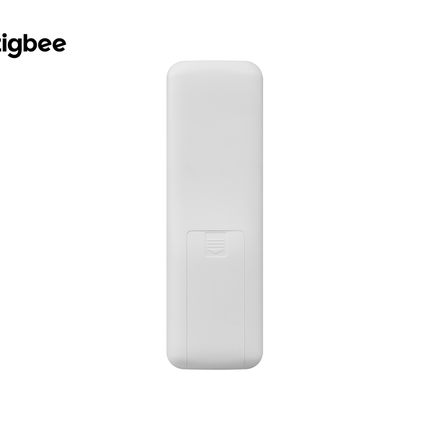

ZigBee RGBCW (RGB + CCT + DIM) LED Remote

UR-ZGR Instruction.pdf

ZigBee RGBCW (RGB + CCT + DIM) LED Remote

Download UR-ZGR Instruction.pdf for installation support.

Features

• ZigBee 3.0 compatible RGBCW (RGB + CCT + DIM) remote


• Instant touch reactive colour wheel that offers fast, precise colour selection and control


• Efficient battery powered remote with low energy consumption


• Pair ZigBee lighting devices via TouchLink commissioning


• Supports easy finding and binding mode with ZigBee compatible devices


• Establish 3 separate groups for binding max. Plus 30 lighting devices.


• 6 stunning preset scenes, save and recall 5 scenes.


• 2.4 GHz global operation


• A transmission range of upto 30m


• ZigBee Gateway product universally compatible


• Bind and control universal single colour DIM, dual white (CCT), RGBCW (RGB + CCT), RGBW and RGB ZigBee lighting devices.

Specifications

General

• Part Number: UR-ZGR


• Product Type: ZigBee Compatible LED Remote Controller (Handset)


• IP Rating: IP20


• Brand: Uprise

Product Data

• Protocol: ZigBee 3.0


• Operation Voltage: 3V(2*AAA battery)


• Transmission Frequency: 2.4GHz


• Transmission Range (free field): 30m


• Dimming Range: 0.1%-100%

Dimensions

• Width: 44mm


• Height: 17mm


• Length: 140mm

Guarantee

• Certification: CE, RoHS


• Warranty: 5 Years

Packaging

• Packaging: White cardboard box


• Net Weight: 375g

Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.

What style of LED tape lights is this compatible with?

This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.

How can I buy?

You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.

What support will I receive once I’ve purchased?

Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
