*Priced per meter, for IP68 (sealed) choose quantity x5 as supplied in 5M sealed reel. All lengths come with standard 500mm tail which can be extended on request.
This flexible, high output RGBW LED tape light uses the highest quality branded LEDs for excellent light performance. 19.2W/M (Max wattage potential), 5M Reel.
60LED RGBW LED tape light. All in one colour, for fuller light visuals.

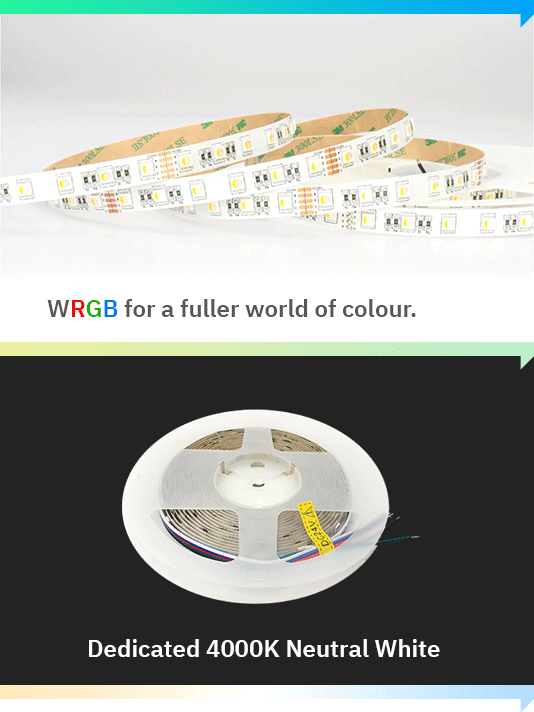

This 20-watt (4 in 1) RGBW (4000K) LED strip lighting is a continuous LED light source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED tape, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, emits up to 1178.11 lumens per meter, while drawing only 20 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
RGBW offers all the advantages of RGB colour changing LED tapes with the added dimensions of a dedicated 4000K white chip. Also available in RGB + 2700K / 3000K / 6000K. Simply put this enterprise class RGBW LED tape light provides rich, vivid colours, washed out pastel hues and shades and along with a solid dedicated white option. Ideal for both high-end and general commercial applications where quality in colour, longevity and brightness is required.
We also supply RGB and RGBTW colour changing LED strips if added white visual effects are desired.
Colour Rendering Index (CRI)
This slim LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this radiant LED strip light emits 1178.11 (RGB+4000K) lumens per meter.
Light Diffusion
As standard our LED strips offer a smooth linear effect when illuminating any surface.
Optionally, you can use these LED tapes together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strips light source will be evenly diffused.
Wiring Example
Choose your length
Uprise’s 20-watt LED tape light, like our alternative bendable strip light series, comes in standard 5M reels and may be cut at every 100mm copper pads cut point. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is just 12mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This LED tape is available in IP20, IP65(H), IP65(S) and IP68. Feel free to contact us on 0116 406 2959 or email us via sales@upriseled.com to talk to an expert. We’ll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments
This slim LED tape provides excellent lighting for commercial applications, perfect for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGBW LED Tape
Colour: RGBW (RGB+4000K neutral white)
IP Rating: IP20 / IP65H / IP65S / IP68
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1178.11Lm/m (RGB+4000K)
Lumens/w: 59Lm/w (RGB+4000K)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 20W
Input Voltage: 24V
Current (A): 0.8A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 5 Core Flat Cable
Mounting: 3M backing tape / VHB Bonding tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Year Warranty, Upto 7 years.
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*Priced per meter. This flexible, high output RGBW LED tape light uses the highest quality branded LEDs for excellent light performance. 19.2W/M (Max wattage potential). Typically supplied on a 5M reel (add qty x5), lengths include 500mm tail as standard.
60LED RGBW LED tape light. All in one colour, for fuller light visuals.
This 20-watt (4 in 1) RGBW (4000K) LED strip lighting is a continuous LED light source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED tape, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, emits up to 1178.11 lumens per meter, while drawing only 20 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
RGBW offers all the advantages of RGB colour changing LED tapes with the added dimensions of a dedicated 4000K white chip. Also available in RGB + 2700K / 3000K / 6000K. Simply put this enterprise class RGBW LED tape light provides rich, vivid colours, washed out pastel hues and shades and along with a solid dedicated white option. Ideal for both high-end and general commercial applications where quality in colour, longevity and brightness is required.
We also supply RGB and RGBTW colour changing LED strips if added white visual effects are desired.
Colour Rendering Index (CRI)
This slim LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this radiant LED strip light emits 1178.11 (RGB+4000K) lumens per meter.
Light Diffusion
As standard our LED strips offer a smooth linear effect when illuminating any surface.
Optionally, you can use these LED tapes together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strips light source will be evenly diffused.
Wiring Example
Choose your length
Uprise’s 20-watt LED tape light, like our alternative bendable strip light series, comes in standard 5M reels and may be cut at every 100mm copper pads cut point. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is just 12mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This LED tape is available in IP20, IP65(H), IP65(S) and IP68. Feel free to contact us on 0116 406 2959 or email us via sales@upriseled.com to talk to an expert. We’ll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments
This slim LED tape provides excellent lighting for commercial applications, perfect for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGBW LED Tape
Colour: RGBW (RGB+4000K neutral white)
IP Rating: IP20 / IP65H / IP65S / IP68
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1178.11Lm/m (RGB+4000K)
Lumens/w: 59Lm/w (RGB+4000K)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 20W
Input Voltage: 24V
Current (A): 0.8A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 5 Core Flat Cable
Mounting: 3M backing tape / VHB Bonding tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Year Warranty, Upto 7 years.
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*Priced per meter. This flexible, high output RGBW LED tape light uses the highest quality branded LEDs for excellent light performance. 19.2W/M (Max wattage potential). Typically supplied on a 5M reel (add qty x5), lengths include 500mm tail as standard.
60LED RGBW LED tape light. All in one colour, for fuller light visuals.

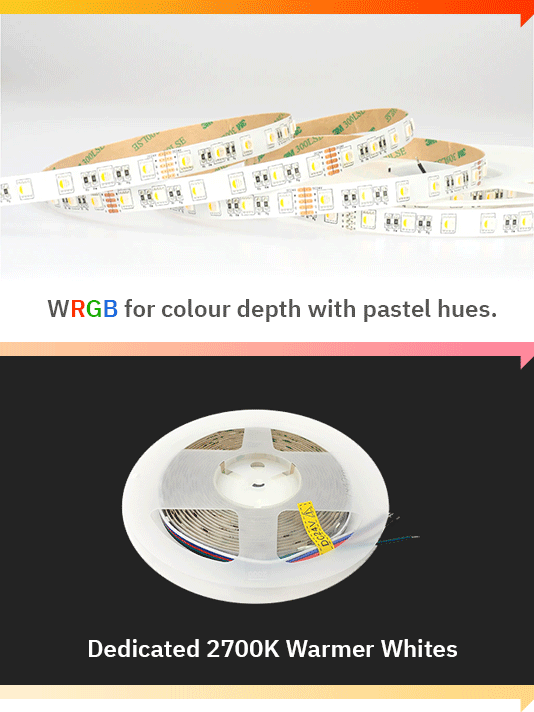

This 20-watt (4 in 1) RGBW (2700K) LED strip lighting is a continuous LED light source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED tape, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, emits up to 1075.13 lumens per meter, while drawing only 20 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
RGBW offers all the advantages of RGB colour changing LED tapes with the added dimensions of a dedicated 2700K white chip. Also available in RGB + 3000K / 4000K / 6000K. Simply put this enterprise class RGBW LED tape light provides rich, vivid colours, washed out pastel hues and shades and along with a solid dedicated white option. Ideal for both high-end and general commercial applications where quality in colour, longevity and brightness is required.
We also supply RGB and RGBTW colour changing LED strips if added white visual effects are desired.
Colour Rendering Index (CRI)
This slim LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this radiant LED strip light emits 1075.13 (RGB+2700K) lumens per meter.
Light Diffusion
As standard our LED strips offer a smooth linear effect when illuminating any surface.
Optionally, you can use these LED tapes together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strips light source will be evenly diffused.
Wiring Example
Choose your length
Uprise’s 20-watt LED tape light, like our alternative bendable strip light series, comes in standard 5M reels and may be cut at every 100mm copper pads cut point. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is just 12mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This LED tape is available in IP20, IP65(H), IP65(S) and IP68. Feel free to contact us on 0116 406 2959 or email us via sales@upriseled.com to talk to an expert. We’ll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments
This slim LED tape provides excellent lighting for commercial applications, perfect for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGBW LED Tape
Colour: RGBW (RGB+2700K warmer white)
IP Rating: IP20 / IP65H / IP65S / IP68
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1075.13Lm/m (RGB+2700K)
Lumens/w: 56Lm/w (RGB+2700K)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 20W
Input Voltage: 24V
Current (A): 0.8A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 5 Core Flat Cable
Mounting: 3M backing tape / VHB Bonding tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Year Warranty, Upto 7 years.
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

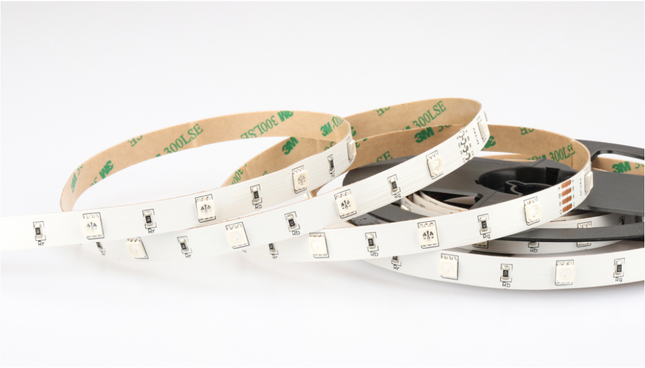

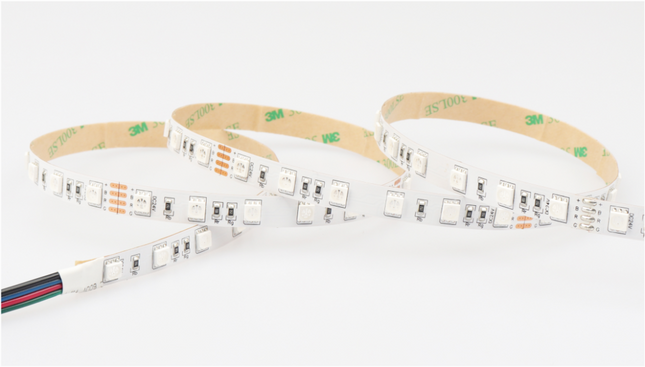

13mm IP67 colour changing RGB LED tape. Scenic colours with added splash resistant protection.
A roll-out LED lighting source that’s slim and super flexible, this 7.2-watt RGB LED tape light is ideal for a wide range of uses. Incorporating 30 5050 SMD branded LEDs and engineered to a high quality standard, this high lumen LED ribbon emits upto 316.08 (RGB) lumens (per meter), consuming just 7.2 watts a meter. Life expectancy of 50,000 hours continued use is typical.
Colour Temperatures
Our professional, long lasting RGB colour changing LED tapes are the standard in creating exciting, vibrant shades throughout your space. With millions of emotion inducing colours to choose from you get to set the scene. Ideal for commercial applications where fit and forget is a must.
We also supply RGBW and RGBTW colour changing LED tapes if added white visual effects are desired.
Colour Rendering Index (CRI)
This radiant LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this bright LED strip light outputs 316.08 (RGB) lumens per meter.
Light Diffusion
When illuminating any surface, our flexible LED strips provide a seamless linear effect as standard. Our LED strips can be used in combination with our aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise’s 7.2-watt LED tape, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 167mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED ribbon is just 13mm wide (IP67) and also available in IP20 (10mm) for internal applications. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is IP67. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
This LED tape provides excellent lighting for commercial applications, ideal for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGB LED Tape
Colour: RGB
IP Rating: IP67
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 30LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 316.08Lm/m (RGB)
Lumens/w: 43.9Lm/w (RGB)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 7.2W
Input Voltage: 24V
Current (A): 0.3A
Cable in: 150mm 2 core (as standard)
Dimensions
Width: 13mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points:
Cable: 4 Core Flat Cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
This flexible, high output IP68 waterproof RGB LED tape light uses the highest quality Epistar LEDs for excellent light performance. 15W/M, 5M Reel.
12mm colour changing RGB LED tape. Beautiful colours that set the mood.
This 15-watt RGB LED tape light is a continuous LED lighting source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED ribbon, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, outputs up to 635.13 (RGB) lumens per meter, while consuming only 15 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
Our professional, long lasting RGB colour changing LED tapes are the standard in creating exciting, vibrant shades throughout your space. With millions of emotion inducing colours to choose from you get to set the scene. Ideal for commercial applications where fit and forget is a must.
We also supply RGBW and RGBTW colour changing LED tapes if added white visual effects are desired.
Colour Rendering Index (CRI)
This radiant LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this bright LED ribbon outputs 635.13 (RGB) lumens per meter.
Light Diffusion
When illuminating any surface, our flexible LED strips provide a seamless linear effect as standard. Our LED strips can be used in combination with our aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise’s 15-watt LED tape, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 50mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED ribbon is just 12mm wide (IP68) and also available in IP20 (10mm) for internal applications. An IP68 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is IP68. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
This LED tape provides excellent lighting for commercial applications, ideal for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGB LED Tape
Colour: RGB
IP Rating: IP68
PCB Colour: Black
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 635.13Lm/m (RGB)
Lumens/w: 44.11Lm/w (RGB)
CRI: >90
Beam angle: 120°
Electrical
LED Wattage (Per meter): 15W
Input Voltage: 12V
Current (A): 1.2A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 4 Core Flat Cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A white cob led tape light that offers seamless light throughout the strip. 9W per meter with a 2700K / 3000K / 4000K / 6000K temperature, it's ideal for cabinets or shelves.
How to connect COB LED tape lights simply.
--

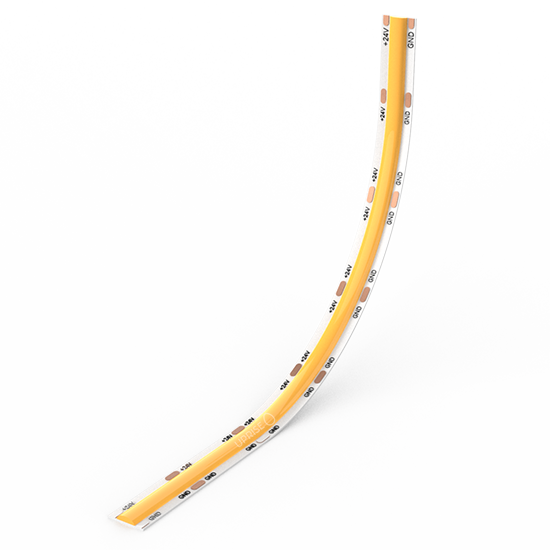

Seamless COB LED Tape 9W/M
*Priced per meter. Supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by UpriseMED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
This 24V COB LED tape strip is just 9W/M offering excellent efficiency and upto a respectable 900 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available in 4 colours 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 50mm cut points. 8mm wide. 24V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That’s why we ensure carefully selected high tolerance components are utilised. This means we’ve done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade San’an LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal) / IP65 Heat Shrink (splash proof)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 900lm/m
Lumens/w: 80-120lm/W
High CRI: 85+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W
Input Voltage: 24V DC
Current (A): 0.375A/m
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.

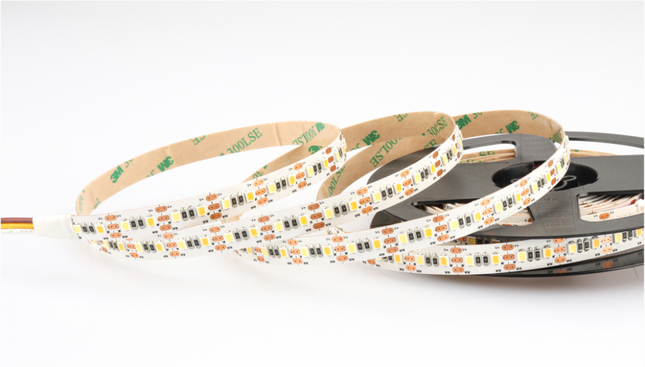

This mini cutting tunable white LED tape allows for perfect cut and fit. Apply within retail window displays, watch & jewellery cabinets. Bright 19W/m, 24V.
This flexible, high output RGB LED tape light uses the highest quality Epistar LEDs for excellent light performance. 15W/M, 5M Reel.
10mm colour changing RGB LED tape. Beautiful colours that set the mood.
This 15-watt RGB LED tape light is a continuous LED lighting source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED ribbon, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, outputs up to 635.13 (RGB) lumens per meter, while consuming only 15 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
Our professional, long lasting RGB colour changing LED tapes are the standard in creating exciting, vibrant shades throughout your space. With millions of emotion inducing colours to choose from you get to set the scene. Ideal for commercial applications where fit and forget is a must.
We also supply RGBW and RGBTW colour changing LED tapes if added white visual effects are desired.
Colour Rendering Index (CRI)
This radiant LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this bright LED ribbon outputs 635.13 (RGB) lumens per meter.
Light Diffusion
When illuminating any surface, our flexible LED strips provide a seamless linear effect as standard. Our LED strips can be used in combination with our aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise’s 15-watt LED tape, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 50mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Simply enter your custom lengths during the online purchasing process, call us, or use our LED project configurator to add UP60-S5050RGB-10MM-15W-12V-5M and obtain an estimate in seconds.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED ribbon is just 10mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is available in the IP20 , IP52 , IP65H , IP65 , IP67 & IP67E versions. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
This LED tape provides excellent lighting for commercial applications, ideal for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGB LED Tape
Colour: RGB
IP Rating: IP20 / IP52 / IP65H / IP65 / IP67 / IP67E
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 635.13Lm/m (RGB)
Lumens/w: 44.11Lm/w (RGB)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 15W
Input Voltage: 12V
Current (A): 1.2A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 4 Core Flat Cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*Supplied on 5M reel. Flexible, cuttable, stickable and colourfully flowable. This bright 60 LED per meter RGBW (4000K) digital LED tape is ideal for creating artistic light visuals. 5V.

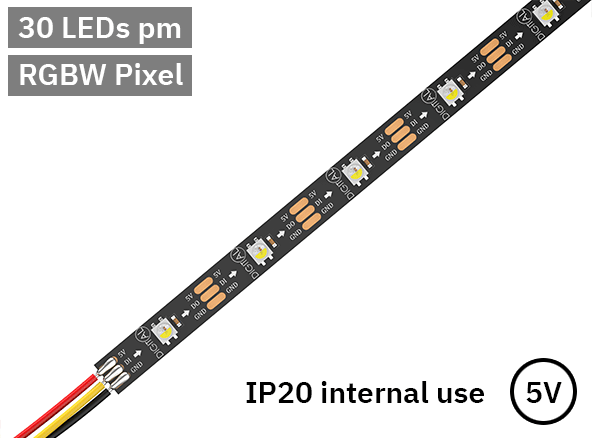

*Supplied on 5M Reel. This individually controllable RGBW (4000K) pixel LED tape offers fluid, exciting effects. Create full colour strobes, flows and pixel patterns easily. 5V
Specifications
Voltage: 5VSupplied Length: 5MWattage: 12W per meterLEDs per meter: 30IC Type: WS2811Cut Points: 33mmLED Spacings: 33mmColour: RGB-NWPCB Colour: WhitePCB Thickness: 2 OunceVoltage drop: 4M trail off (Power both ends)Data Flow: Arrow points away from data/power source.Cable: 3 core flat cableCable Colours: Red +, Black -, Yellow DataCut to length service: Available on request
Wiring Diagram
Our digital RGBW LED strip is a flexible full colour pixel LED strip light. It has amongst the widest range of uses out of all types of flex tape strips. Championing individually addressable pixels that can each be controlled with the widest gamut of colour, full RGBW. This means you can reach the full colour spectrum whilst also having precision control over every single LED. This level of control allows for a wide scope of both colour generation and kinetic visual effects. Animations such as roasting flames, night sky twinkles, sparkles, static and moving gradients along with cross fades, bounces, pulses, comets and even low resolution video to name a few examples.
Uprise's tried and tested digital LED strip is made to a high standard using the best components. We call this pioneer grade. Within the make up of our strip is a diffused LED offering superior colour mixing. Use this strip as a feature light within alcoves, bars, restaurants in the home for kitchen entertaining, lounges for relaxation or even in home cinemas for dramatic effect. Due to the intelligent range of colour our pixel strip is also ideal within custom lights boxes to improve mood and wellbeing. Studies show that introducing smart lighting that mimics the bodies natural circadian rhythm can improve emotional and psychological wellbeing.
Our Digital LED Strip 30 RGBW strip is available in two IP rated types.
IP20 - For internal non waterproof fit outs.
IP65 - For splash proof applications such as bars, clubs or other areas where splashes of water or liquid ingress may be present.
In addition our pixel LED strip comes is available in two PCB paint finishes, white or black.
White - Typical for everyday applications such as in coves, within aluminium profiles or within lights boxes. When in an enclosure white finish helps reflect the light to improve overall brightness and wash out of visual.
Black - This is ideal for areas that are finished in black and the desire is to only see the pixel LEDs. The result? An almost ghost like visual.
Should you require something brighter or a higher definition of pixel LEDs, we have the following products available.

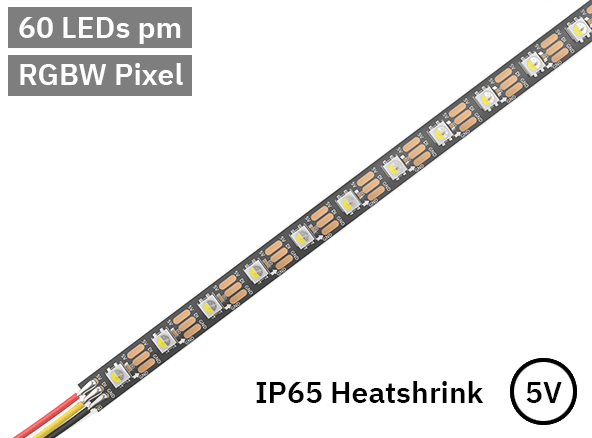

Digital LED Strip RGBW 60 - Our 60LED per meter digitally addressable RGBW LED strip packs a serious punch. Consisting of of twice as many LEDs as our 30LED version it's ideal when you need extra brightness.
Q) Are these digital LED strips pixel mappable?A) Yes these can be pixel mapped via any leading control software.
Q) What is pixel mapping?A) Pixel mapping is when each LED is used as a controllable pixel in a larger grid or matrix. Imagine a lower resolution but bright display. Now imagine that display is a single yet flexible line, that's an addressable pixel LED strip. Pixel LEDs can come in many different product forms including batons, large domes, orbs and even IP rated nodes.
Q) How do I install and program an RGBW digital LED strip?A) Please our installation and setup guide.
Q) What do "channels" mean? I notice you mention each LED uses 4 channels, what does this actually mean?A) A channel is assigned to control different parameters also known as a (personality) of a light. Traditionally this could be a colour, rotation or strobe and have values of 0-255. In our case it's the 4 colours of each individual pixel LED, red, green, blue and white. 4 channel.
Q) What is sACN or Artnet?A) For more information on sACN or Artnet checkout art-net.org.uk
Q) What is DMX?A) DMX stands for digital multiplex. See this article for more information
Q) What is DMX universe 512?A) A DMX universe consists of 512 channels, remember how we answered what channels were before? Well a single universe is made up of 512 channels. This means that 1 dmx universe can control 512/3 (RGB) = 170 RGB pixels or 512/4 (RGBW) = 128 RGBW pixels.
Q) What power supply do I need to run these strips?A) This particular strip is 5v and consumes 12W/M or 60W per 5M supplied reel. You will require a 5V 100W / 200W / 320W or larger power supply.
Q) What controller do I need to control these strips?A) Feel to contact us on 0116 406 2959 to discuss your project needs, we can assist you in bring your ideas to life.
Q) How do I control these lights from my mobile or iPad?A) There are several ways of achieving this and it will depend on the overall goal of your project. Contact us today, we're here to help.

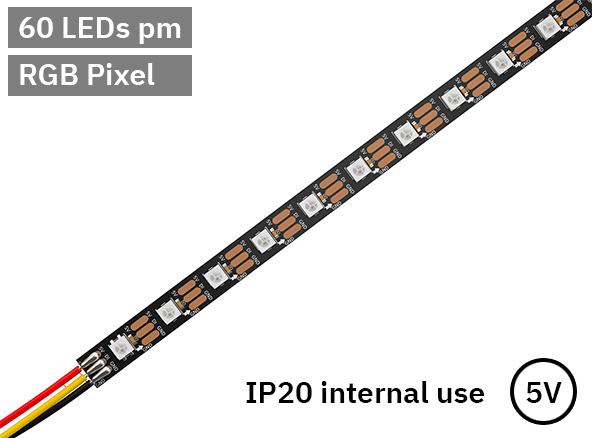

*5M Reel. A professional 60 LED per meter RGB digital LED tape light. Pixel programmable, dynamic and versatile, this 18W/M LED strip is ideal for gym spin studios, clubs, bars and for stage backlighting or events. 5V.
*5M Reel. A professional RGB digital LED tape strip that is single pixel addressable. Create beautiful artistic visuals for entertainment, leisure and fitness spin studios. 30LED/M.

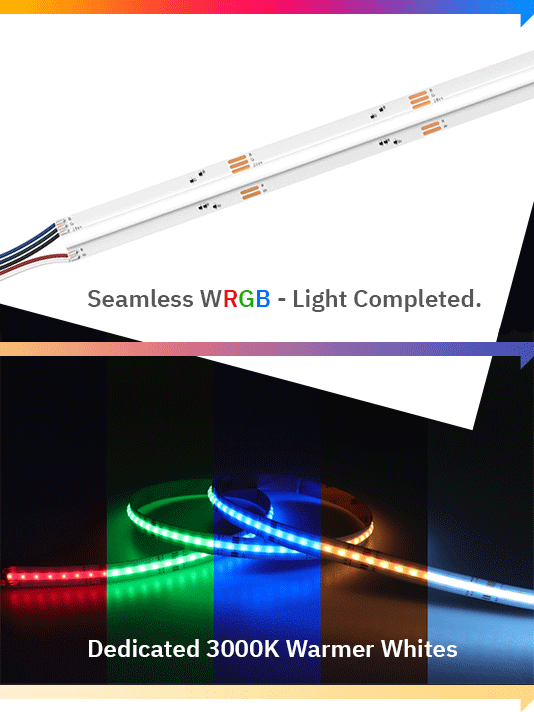

RGBW COB LED Tape. Light completion.
Working on a big or small project that requires custom lengths and expert advise? Send us an email via sales@upriseled.com or Whatsapp us details to 07957 180 481.
*Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure seamless "no dot" RGBW LED strip light solution.
Create a colour changing light line that's seamless on the eye. Ideal for undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
This 16-watt per meter RGBW COB LED strip is slim, flexible, offering excellent brightness and colour output. Utilising the latest in flip chip COB technology with a long expected life of 50K hours.
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGBW colour changing (5 wire) LED Strip LightSolder Cable to RGBW colour changing (5 wire) LED Strip Light
Colour Temperatures
This strip offers a dedicated 3000K warm white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "no dot" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 560LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K+6000K)
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 16W
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A white cob led tape light that offers seamless light throughout the strip. At 10W and available in 3000K, 4000K, 6000K, it's ideal for cabinets or shelves.
--
Seamless COB LED tape 10W
*Priced per meter. Supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by UpriseMED. A revolutionary new PCB design mounted LED strip light with a uniform "tiny dot" LED configuration for the most beautiful light line you've ever witnessed. Our 10 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
This 24V COB LED tape strip is just 10W/M offering excellent efficiency and upto a respectable 900 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available in 4 colours 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 50mm cut points. 8mm wide. 24V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade San'an LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (10W)
Colour: Warm White (3000K)
IP Rating: IP20
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 900lm/m
Lumens/w: 80-120lm/W
High CRI: 85+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W (10W buffered)
Input Voltage: 24v DC
Current (A): 0.38A/m
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
