HD RGBW COB LED Tape. Light completion.
*Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure seamless "no dot" (when placed within any aluminium channel / LED profile) RGBW LED strip light solution.
Create a colour changing light line that's seamless on the eye. Ideal for undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
Wiring Diagram & Best Practises
[PDF] Branded - How to install 24V RGBW COB LED Tape Lights - 2 x 4M Lengths (840LED/M RGBW No Dot 24V)
[PDF] Unbranded - How to install 24V RGBW COB LED Tape Lights - 2 x 4M Lengths (840LED/M RGBW No Dot 24V)
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Vienna No Dot RGBW Kits - It's Seamless Lighting Made Simple
6M 840LED No Dot RGBW 3000K COB LED Tape Kit With Wireless Handset
This 20-watt per meter RGBW COB LED strip is slim, flexible, offering excellent brightness and colour output. Utilising the latest in flip chip COB technology with a long expected life of 50K hours.
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGBW colour changing (5 wire) LED Strip LightSolder Cable to RGBW colour changing (5 wire) LED Strip Light
Colour Temperatures
This strip offers a dedicated 3000K warm white / 4000K neutral white / 6000K cool white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "no dot" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+4000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 840LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K)
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 20W (19.2 actual)
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 33.3mm
Cable: 5 core flat cable (20 AWG)
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Update 13-10-22: Wattage changed from 18-watt per meter to 20-watts per meter (19.2W/m actual) to build in tolerances based on new information.- Stephen Watts
controThis wireless 5 channel LED remote handset works with our UP-WT5 smart wireless LED controller receiver. Allowing for simple wireless control over RGB, CCT or RGBWW (RGB + Warm White + Cool White) colour scenes.
Smart Wifi 5-Channel CCT & RGBTW LED Strip Controller (12V-24V)
Features
Wireless control with UP-WT5 LED controller-receiver.
Beautiful aesthetic, sleek modern remote design.
Weighty & durable for long term usage.
Sleek, soft finish for pleasurable touch experience.
4 zone control, set upto 4 controllable lighting zones easily.
Inner RGB wheel for vibrant colours including RGB white mixing (RGB all on)
Outer smart white touch sensitive wheel for CCT dual white colour selection.
Multi-scene selection button for colour scroll, colour fade in/out and warm-cool white scrolling.
Simply tap for brightness up/down.
Includes simple screwable bracket mount for remote resting.
Setup
Compatible with Tuya application for simple wireless control via mobile or tablet device. Download for installation support.
Plays well with
Seamless "No Dot" 840LED/M RGBW COB LED Tape
Quick fit RGBW LED tape kits: 6M 840LED No Dot RGBW 3000K COB LED Tape Kit With Wireless Handset
Specifications
General
Part Number: UP-WT5
Product Type: Wifi 5CH LED Remote Handset
IP Rating: IP20
Brand: Uprise
Electrical
Battery Supply: 2 x triple A batteries (AAA)
Mobile Application
Required Application: Tuya Smart App (works with UP-WT5)
Dimensions
Width: 38mm
Height: 23mm
Length: 124mm
Installation
Bracket Mounting: x2 Screws for mounting remote bracket mount to wall or other surface.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: White cardboard box
Net Weight: 65g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V/24V single colour, RGB, RGBW LED tape lights or RGBTW LED strips. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
High Definition RGB COB LED Tape. Colour Completed.
This RGB "no dot" LED strip light provides a seamless LED light line that can be colour changed. Ideal for undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.Looking a continuous light line with extra dedicated white? Check out our RGBW No Dot LED strip light.
*Priced per meter, typically supplied as 5M reel with 2000mm 5 core flat cable as standard. Can be cut to length. Contact us for made to measure seamless RGB LED solution. Comes with an IP65 heat shrink protective coating as standard.
At 14-watt per meter, this RGB COB LED strip is slim, flexible, offering excellent brightness and colour output. Utilising the latest in flip chip COB technology with a long expected life of 50K hours.
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGB colour changing (4 wire) LED Strip Light
Colour Temperatures
This strip offers full RGB colour changing for millions of colour combination. When all on you can also generate a nice white which can be toned and adjusted.
Colour Rendering Index (CRI)
This versatile "no dotting" LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 650lm/m (RGB all on).
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 5M increments with a 2000mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in IP65 (splashproof) or IP20 (internal) at 10mm.
IP Rating Options
This bright LED tape is available in the IP65 (splashproof) or IP20 (internal) versions. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGB LED Tape
Colour: RGB colour mixing (white achieved with 100% all on)
IP Rating: IP65 / IP20
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 768 LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 650Lm/m (RGB all on)
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 14W
Input Voltage: 24V
Current (A): N/A
Cable in: 2000mm 2 core (as standard)
Cable out: 0mm as standard
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard), can be cut to size.
Installation
Cut points: 50mm
Cable: 4 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

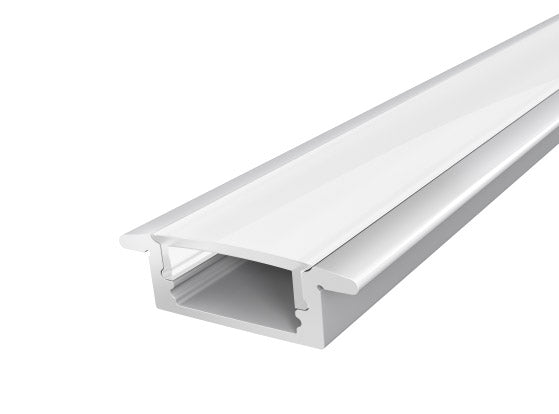

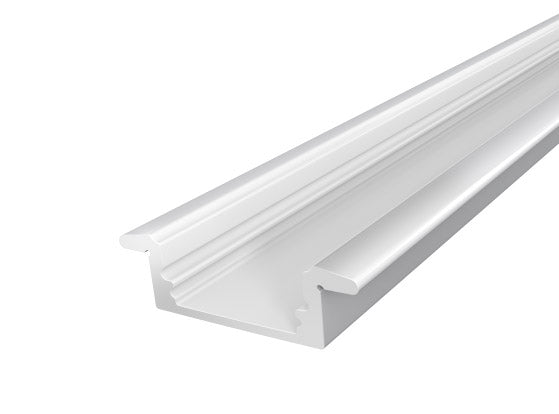

This is an LED aluminium extrusion designed for slim recessed lighting applications. This LED profile also acts as a heatsink, offering greater thermal management.
Supplied with plastic end caps and both, metal or plastic fix clips. The profile comes complete with a Semi Diffused PC Cover. Compatible with LED strips that are up to 12mm wide.
The cutout hole size is 17.1mm wide, 8mm high, 23.2mm (outer flange width). The internal width is 12mm. The length of this LED Profile is 2M. Available bespoke cut lengths also include 0.5M/1.5M/2.5M/3M. The base of the construction is 6063 T5 Aircraft Aluminium, which makes it tough and fit for purpose.
Additional detail is the silver finish that provides a professional look.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product Type: Slim Recessed
Compatible with: Suitable for LED tape width: <12mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal/Plastic optional
Finish: Silver
PC Cover: Semi Diffused
Width: 17.1mm
Outer Flange Width: 23.2mm
Internal Width: 12mm
Height: 8mm
Length: 2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
1 meter package size: 125PCS/Carton,102X13X17CM
2 meter package size: 125PCS/Carton, 202X13X17CM
G.W (Per meter): 0.14KG
Warranty: 5 Year Warranty
Available in black and silver.

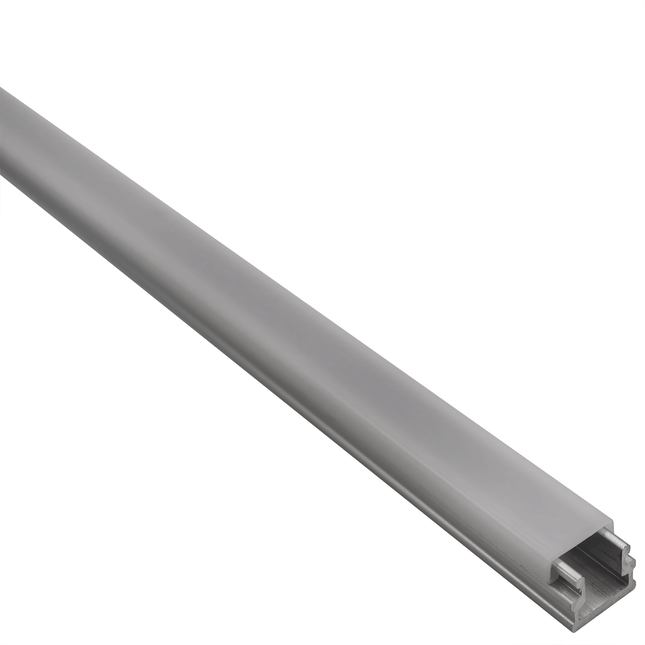

This is an 8mm micro LED aluminium profile (U shape) designed for surface mount applications, including cabinet, recess and integrated LED light lines. This aluminium LED profile is known for its thermal management of LED strips, sleek size, simple mounting and easy to clean diffuser. It also provides a more "complete look" for a better visual aesthetic.
It comes complete with plastic end caps and metal fix clips. Supplied with a professional Semi Clear Diffuser.
The size is 8mm wide and 7mm high. The internal width is 5.5mm. This LED channel comes in either 0.75M, 1M or 2.25M lengths. Bespoke cut lengths can be discussed. Aluminium constructed, which makes it durable and tough.
Aluminium extrusion finished in silver or black.
If you would like a custom length please get in touch via phone, text or whatsapp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Micro
Compatible with: Suitable for LED tape width :<5.5mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic (white end caps)
Fix Clips: Metal
Finish: Silver / Black
PC Cover: Semi Diffused
Width: 8mm
Internal Width: 5.5mm
Height: 7mm
Length: 0.75M / 1M / 2.25M as standard
Bespoke Cut Lengths: Get in touch to discuss.
Warranty: 5 Year Warranty
An aluminium LED profile, creating a stylish light along an external corner.
It includes plastic end caps and metal fix clips needed for a complete aluminium channel installation. In addition, there is a professional Semi Clear Diffuser.
This extruded aluminium LED profile is compatible with LED strip lights that are up to 11mm wide.
Both, width and height are 16mm. The internal width is 10mm. This LED profile comes in either 1M or 2M lengths. The construction of the extrusion is based on 6063 T5 Aircraft Aluminium.
Silver finish for a refined look.
If you would like a custom length please get in touch via phone, text or whatsapp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Corner
Compatible with: Suitable for LED tape width :<11mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal
Finish: Silver
PC Cover: Semi Diffused
Beam Angle: 45°
Width: 16mm
Internal Width: 10mm
Height: 16mm
Length: 1M / 2M as standard
Bespoke Cut Length: Contact us to discuss
1 meter package size: 100PCS/Carton 102X13X17CM
2 meter package size: 100PCS/Carton 202X13X17CM
G.W (Per meter): 0.16KG
Warranty: 5 Year Warranty
A slim silver aluminium extrusion profile designed for surface mounted LED lighting projects. This bendable LED profile produces a smoother light appearance.
It comes with plastic end caps and metal fix clips. Supplied with a professional Semi Clear Diffuser, which helps with the transmission of soft light.
Compatible with LED strip lights that are 13mm wide.
The size is 18mm wide and 5.7mm high. The internal width is 13.5mm. The length of this LED Channel is 2M. Available bespoke cut lengths also include 0.5M/1.5M/2.5M/3M. Constructed with 6063 T5 Aircraft Aluminum, which makes it tough and fit for purpose.
If you would like a custom length please get in touch via phone, text or whatsapp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Slim Bendable
Compatible with: Suitable for LED tape width :13mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal
Finish: Silver
PC Cover: Semi Diffused
Width: 18mm
Internal Width: 13.5mm
Height: 5.7mm
Length: 1M / 2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
G.W (Per meter): 0.14KG
Warranty: 5 Year Warranty
*In stock UK for next day delivery or same day collection (Lutterworth, Leicestershire).
Product System Compatibility
2M 3 Wire (CCT) Extension Lead - 2M Plug & Play 3 Core (3 Wire) CCT / Digital Pixel Extension Cable With Input-Output Micro Connectors
500mm 3 Wire (CCT) input cable - 0.5M 3 Core (3 Wire) CCT LED Extension Cable With Male Connector & Bare Ends
Features
1x 6 output splitter (3 wiring cores) for RGB 12V, 24V / 5V Digital Pixel / CCT LED tape, spotlights, lightbars and LED lamps.
Extend upto 6 lighting connections with this 6 way distributor
Small and sleek design for tidier integration.
Easy connection system for plug and play setup.
Works with 5V, 12V or 24V (5-50V) LED lights.
Uprise supply various compatible LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
Benefits
Quick and easy installation, plug and play.
Many configurable options, low cost.
International testing and certification makes it a safe option for commercial usage.
Very efficient resulting in greater energy saving along with time saved installing.
Sleek shape with small size for a tidy integration.
Connectivity Examples
Mains > 5V / 12V / 24V Power Supply (PSU) > *6 Way Splitter Distributor > [Male] 2M 3 Core Extensions Cable [Female] > [Male] 3 wire LED light source (CCT LED strip light or cabinet light).
Mains > 5V / 12V / 24V Power Supply (PSU) > Wifi LED Controller Receiver > *6 Way Splitter Distributor > [Male] 2M 3 Core Extensions Cable [Female] > [Male] 3 wire LED light source (CCT LED strip light or cabinet light).
Technical Specification
Voltage: 5V / 12V / 24V (5-50V)
Max Current: 3A (Entire splitter) or 0.5A per connection port.
Max Wattages: 5V (15W) / 12V (36W / 24V (72W) at 3A total system load.
Number of Ports: 6
Cable Gauge: 22 AWG
Wiring Cores: Max 4 wires per connection port.
Input Cable Length: 200mm
Input Cable Type: 3 wire 22AWG.
Material: Plastic
Colour: White
Guarantee: 3 Years
Certification: RoHS, CE
All products to be installed by a technically competent person in accordance with BS7671 and all other local regulations and safety standards.
*In stock UK for next day delivery or same day collection (Lutterworth, Leicestershire).
This sleek 2M (2000mm long) 3 core (CCT / Digital Pixel) extension cable allows you to extend the lighting cable attached to our multi-output 3 or 6 output 3 pole LED distributor. Please get in touch if you require any support with additional extension cable.This cable can also be attached to a bare ends 3 core male connector cable.
Features & Benefits
1x Male/Female output CCT (3 core) extension cables supplied
Smaller sleeker design than other 3 wire 2M extension cables for a tidier fitout.
This 2M lighting extension cable is used to achieve a longer run from your smart white (CCT) or digital pixel (5V - 3 core) LED light source to your driver.
These extension cables can also be joined together to create even longer lengths to your lights.
We supply various LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
Connectivity Examples
Mains > 12V / 24V Power Supply (PSU) > 6 Output 3 Core Distributor > [Male] 2M 3 Core Extensions Cable [Female] > [Male] 3 wire LED light source (CCT LED strip light or cabinet light).
Short Description
A 2M (2000mm) 3 pole (3 wire) extension cable with plug and play female (input) and male (output) micro connector.
*In stock UK for next day delivery or same day collection (Lutterworth, Leicestershire).
This sleek 3 core (CCT / Digital Pixel) extension cable allows you to extend the lighting cable attached to our multi-output 3 or 6 output 3 pole LED distributor. Please get in touch if you require any support with additional extension cable.
Features & Benefits
4x Male/Female output CCT (3 core) extension cables supplied
Smaller sleeker design than other 3 wire 2M extension cables for a tidier fitout.
This 2M lighting extension cable is used to achieve a longer run from your smart white (CCT) or digital pixel (5V - 3 core) LED light source to your driver.
These extension cables can also be joined together to create even longer lengths to your lights.
We supply various LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
Connectivity Examples
Mains > 12V / 24V Power Supply (PSU) > 6 Output 3 Core Distributor > [Male] 2M 3 Core Extensions Cable [Female] > [Male] 3 wire LED light source (CCT LED strip light or cabinet light).
Short Description
A 2M (2000mm) 3 pole (3 wire) extension cable with plug and play female (input) and male (output) micro connectors.
*Priced per meter. To order 5M you would add quantity 5, 1M qty 1, 2M qty 2 etc.. Made to measure lengths available on request. A bright white cob led tape light that offers seamless light throughout the strip. 12W per meter with a 2700K / 3000K / 4000K / 6500K temperature, it's ideal for cabinets or shelves. Contact us via sales@upriseled.com or on 0116 406 2959 to discuss your project today.
--
Seamless COB LED Tape 12W IP20
*Priced per meter. Supplied as 5M reel typically (Order x5 qty). Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise LED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 12 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 12W/M offering excellent efficiency and upto a respectable 1100 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 30,000+ hours of continuous use. 25mm cut points. 10mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (12W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal) / IP65 Heat Shrink (splash proof) (Available on request)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1000-1100lm/m
Lumens/w: 87.5lm/W
High CRI: 90+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 12W
Input Voltage: 12v DC
Current (A): 1A/m
Cable in: 200mm 2 core (as standard)
Cable out: 200mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: Strong adhesive backing tape (Blue)
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
100W MeanWell Constant Voltage LED Driver
This 100W constant voltage power supply offers a professional, reliable power source for 24V LED lighting products. It's available in standard 24V, 12V along with 5V, 36V and 48V options.
Features
Universal AC Input / Full Range
Isolation class II, no F.G
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
100% full load burn-in test
High reliability, Low cost
Output
24V +/- connection for connection with 24V LED lamps, marker LEDs or LED tape lights.
Power Consumption
100W rated.
Size
Small design at just 22mm depth for hidden installation. 95mm x 45mm x 24mm
Wiring
2 core cable connected to +/- connectors
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our LED power supplies are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 100W - 10% (90W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
IP Rating
This LED supply is fully encapsulated with IP67 level rating.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this 100W super small constant voltage LED driver with a range of our single colour & seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
General
Product Type: Constant Voltage LED driver
IP Rating: IP67 encapsulated
Brand: MeanWell
Electrical
Output Wattage: 100W
Input Voltage: 90~264VAC
Output Voltage: 24V + / - connection
Power Factor: 0.6
Efficiency: 83%
Dimmable Type: No
Safety Standards: Design refer to TUV EN60950-1, EN61347-2-13
Output Voltage Options: Single
Dimensions
Width: 52mm
Height: 37mm
Length: 190mm
Installation
Mounting: x2 Screws at corners
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: White cardboard box
Net Weight: 190g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A 1M (1000mm) extension 5 core flat cable length. Ideal for extending the cable tail of any of our RGBW seamless or standard LED tape lengths to 2M (2000mm). Cut to length with bare ends revealed ready for connection.
A 5M (5000mm) extension 5 core flat cable length. Ideal for extending the cable tail of any of our RGBW seamless or standard LED tape lengths to 5M (5000mm). Cut to length with bare ends revealed ready for connection.
A 2M (2000mm) extension 5 core flat cable length. Ideal for extending the cable tail of any of our RGBW seamless or standard LED tape lengths to 2M (2000mm). Cut to length with bare ends revealed ready for connection.
A 2.5M (2500mm) extension 5 core flat cable length. Ideal for extending the cable tail of any of our RGBW seamless or standard LED tape lengths to 2.5M (2500mm). Cut to length with bare ends revealed ready for connection.
*Priced per meter, for IP68 (sealed) choose quantity x5 as supplied in 5M sealed reel. All lengths come with standard 500mm tail which can be extended on request.
This flexible, high output RGBW LED tape light uses the highest quality branded LEDs for excellent light performance. 19.2W/M (Max wattage potential), 5M Reel.
60LED RGBW LED tape light. All in one colour, for fuller light visuals.
This 20-watt (4 in 1) RGBW (4000K) LED strip lighting is a continuous LED light source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED tape, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, emits up to 1178.11 lumens per meter, while drawing only 20 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
RGBW offers all the advantages of RGB colour changing LED tapes with the added dimensions of a dedicated 4000K white chip. Also available in RGB + 2700K / 3000K / 6000K. Simply put this enterprise class RGBW LED tape light provides rich, vivid colours, washed out pastel hues and shades and along with a solid dedicated white option. Ideal for both high-end and general commercial applications where quality in colour, longevity and brightness is required.
We also supply RGB and RGBTW colour changing LED strips if added white visual effects are desired.
Colour Rendering Index (CRI)
This slim LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this radiant LED strip light emits 1178.11 (RGB+4000K) lumens per meter.
Light Diffusion
As standard our LED strips offer a smooth linear effect when illuminating any surface.
Optionally, you can use these LED tapes together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strips light source will be evenly diffused.
Wiring Example
Choose your length
Uprise’s 20-watt LED tape light, like our alternative bendable strip light series, comes in standard 5M reels and may be cut at every 100mm copper pads cut point. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is just 12mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This LED tape is available in IP20, IP65(H), IP65(S) and IP68. Feel free to contact us on 0116 406 2959 or email us via sales@upriseled.com to talk to an expert. We’ll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments
This slim LED tape provides excellent lighting for commercial applications, perfect for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGBW LED Tape
Colour: RGBW (RGB+4000K neutral white)
IP Rating: IP20 / IP65H / IP65S / IP68
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1178.11Lm/m (RGB+4000K)
Lumens/w: 59Lm/w (RGB+4000K)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 20W
Input Voltage: 24V
Current (A): 0.8A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 5 Core Flat Cable
Mounting: 3M backing tape / VHB Bonding tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Year Warranty, Upto 7 years.
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*Priced per meter. This flexible, high output RGBW LED tape light uses the highest quality branded LEDs for excellent light performance. 19.2W/M (Max wattage potential). Typically supplied on a 5M reel (add qty x5), lengths include 500mm tail as standard.
60LED RGBW LED tape light. All in one colour, for fuller light visuals.
This 20-watt (4 in 1) RGBW (4000K) LED strip lighting is a continuous LED light source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED tape, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, emits up to 1178.11 lumens per meter, while drawing only 20 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
RGBW offers all the advantages of RGB colour changing LED tapes with the added dimensions of a dedicated 4000K white chip. Also available in RGB + 2700K / 3000K / 6000K. Simply put this enterprise class RGBW LED tape light provides rich, vivid colours, washed out pastel hues and shades and along with a solid dedicated white option. Ideal for both high-end and general commercial applications where quality in colour, longevity and brightness is required.
We also supply RGB and RGBTW colour changing LED strips if added white visual effects are desired.
Colour Rendering Index (CRI)
This slim LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this radiant LED strip light emits 1178.11 (RGB+4000K) lumens per meter.
Light Diffusion
As standard our LED strips offer a smooth linear effect when illuminating any surface.
Optionally, you can use these LED tapes together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strips light source will be evenly diffused.
Wiring Example
Choose your length
Uprise’s 20-watt LED tape light, like our alternative bendable strip light series, comes in standard 5M reels and may be cut at every 100mm copper pads cut point. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is just 12mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This LED tape is available in IP20, IP65(H), IP65(S) and IP68. Feel free to contact us on 0116 406 2959 or email us via sales@upriseled.com to talk to an expert. We’ll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments
This slim LED tape provides excellent lighting for commercial applications, perfect for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.

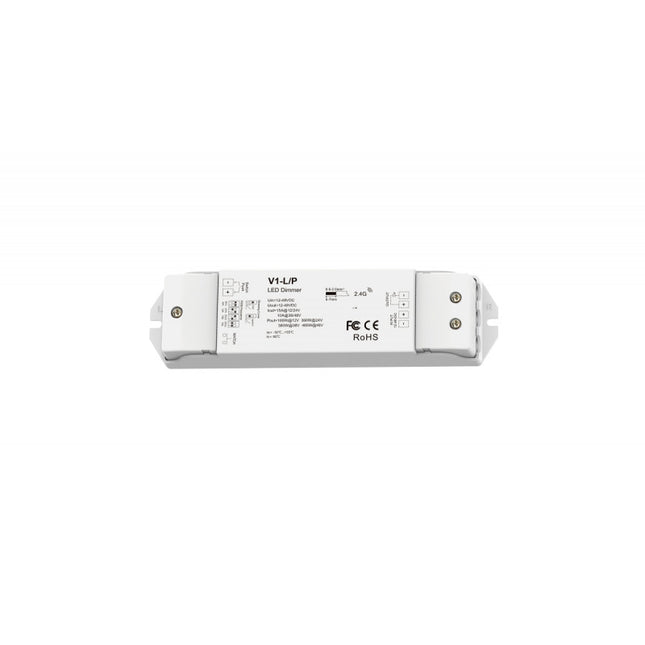

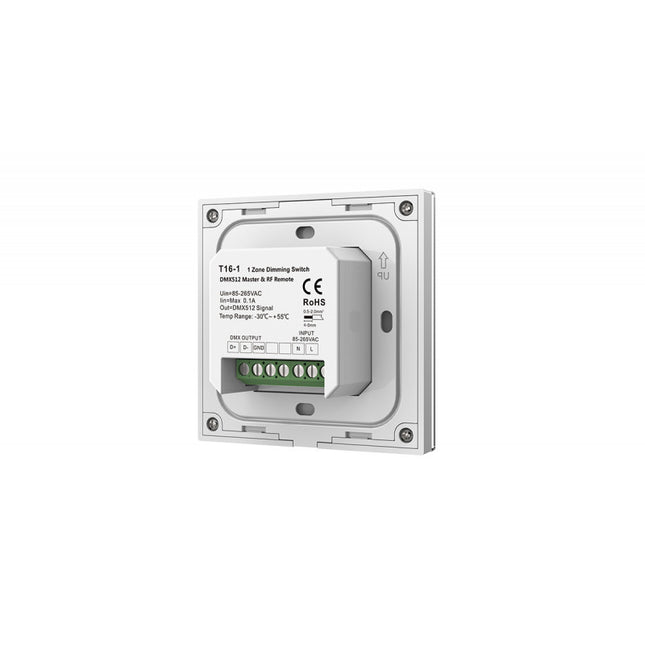

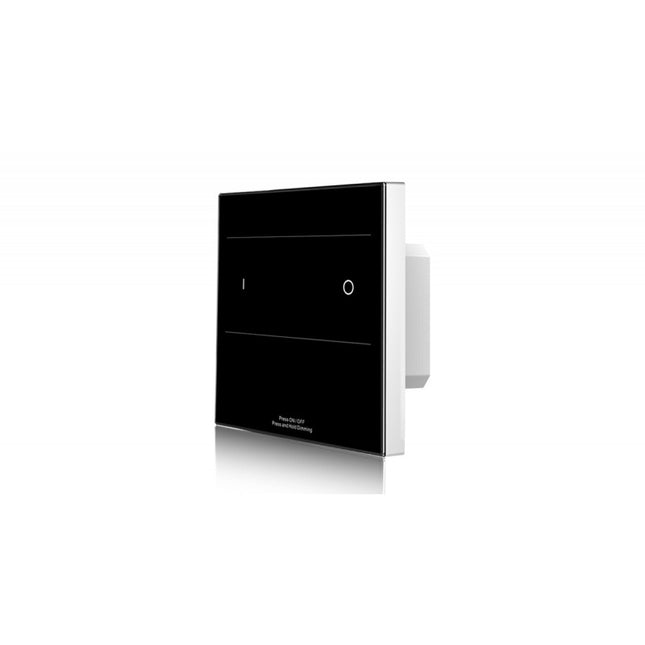

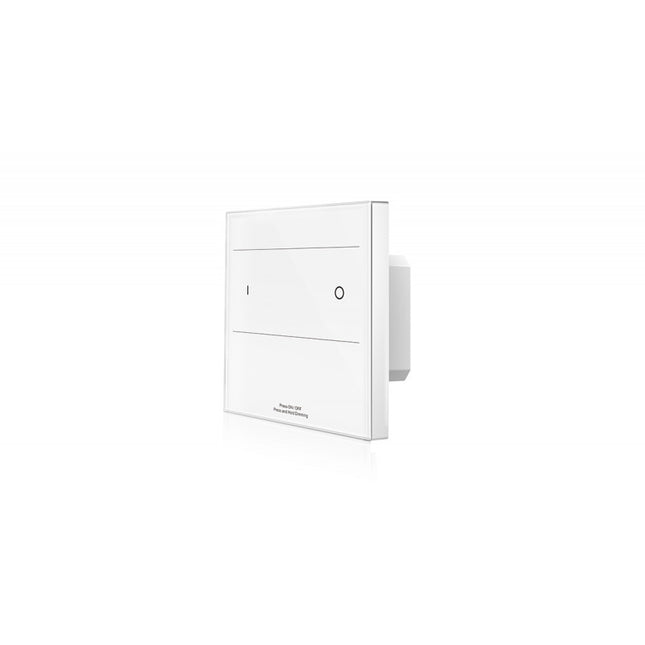

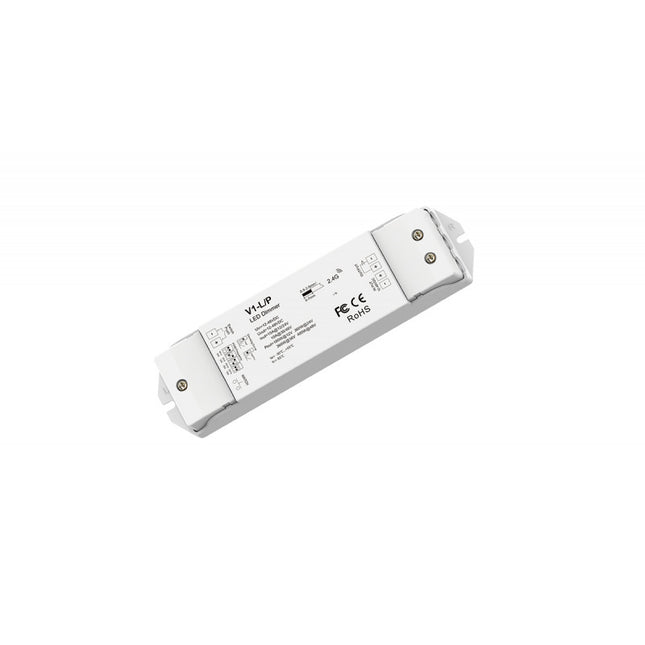

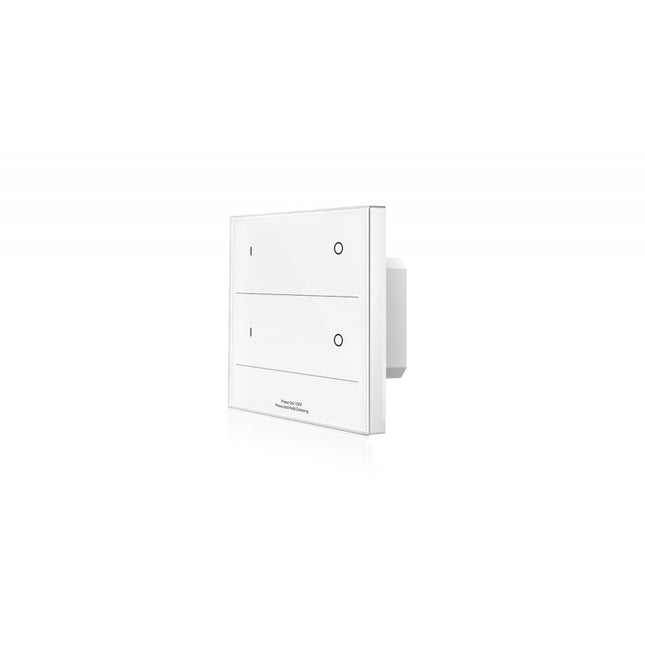

Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGBW LED Tape
Colour: RGBW (RGB+4000K neutral white)
IP Rating: IP20 / IP65H / IP65S / IP68
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1178.11Lm/m (RGB+4000K)
Lumens/w: 59Lm/w (RGB+4000K)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 20W
Input Voltage: 24V
Current (A): 0.8A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 5 Core Flat Cable
Mounting: 3M backing tape / VHB Bonding tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Year Warranty, Upto 7 years.
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
