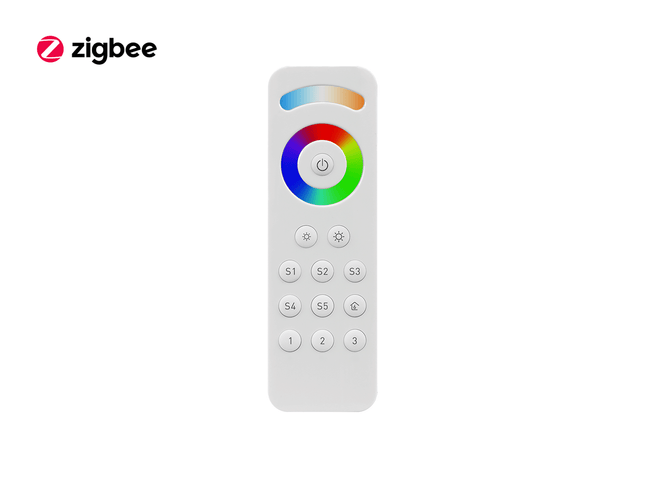

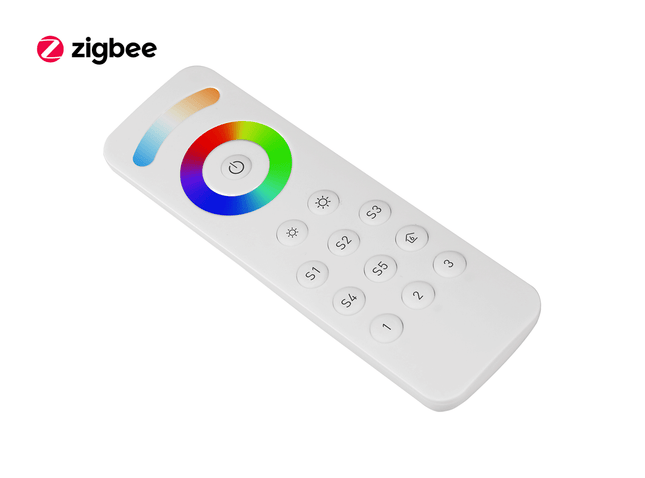

UR-ZGR Instruction.pdf--ZigBee RGBCW (RGB + CCT + DIM) LED Remote
Download UR-ZGR Instruction.pdf for installation support.
Features
ZigBee 3.0 compatible RGBCW (RGB + CCT + DIM) remote
Instant touch reactive colour wheel that offers fast, precise colour selection and control
Efficient battery powered remote with low energy consumption
Pair ZigBee lighting devices via TouchLink commissioning
Supports easy finding and binding mode with ZigBee compatible devices
Establish 3 separate groups for binding max. Plus 30 lighting devices.
6 stunning preset scenes, save and recall 5 scenes.
2.4 GHz global operation
A transmission range of upto 30m
ZigBee Gateway product universally compatible
Bind and control universal single colour DIM, dual white (CCT), RGBCW (RGB + CCT), RGBW and RGB ZigBee lighting devices.
Specifications
General
Part Number: UR-ZGR
Product Type: ZigBee Compatible LED Remote Controller (Handset)
IP Rating: IP20
Brand: Uprise
Product Data
Protocol: ZigBee 3.0
Operation Voltage: 3V(2*AAA battery)
Transmission Frequency: 2.4GHz
Transmission Range (free field): 30m
Dimming Range: 0.1%-100%
Dimensions
Width: 44mm
Height: 17mm
Length: 140mm
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
