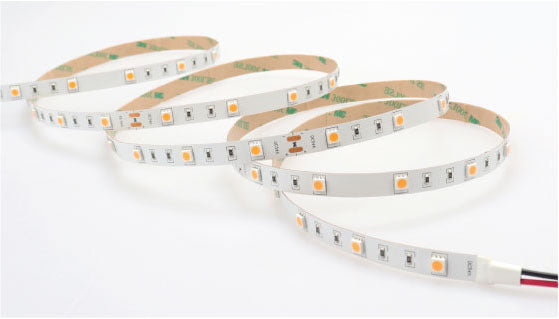

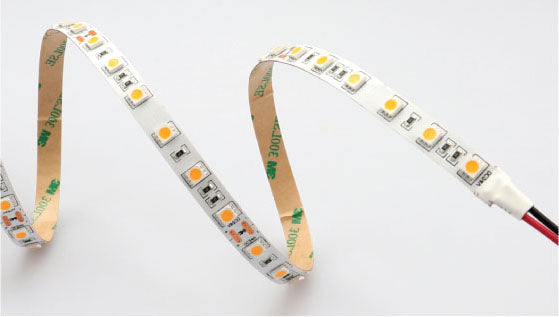

6000K cool white LED tape. Seamless lighting made simple.
This 4.8 watt 6000K cool white LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 60 3528 SMD branded LEDs and is manufactured to a high quality standard, drawing only 5 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 4.8-watt LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
This LED strip lights is available in both internal (IP20) and splash proof (IP65) rated options.
IP Rating Options
This bright LED tape comes in either IP20 (internal) or IP67 rubber casing for splash proof, water resistant applications. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
For commercial applications this strip light offers brilliant illumination suited for luxury resorts, restaurants, bars, hotel lobbies and for retail environments and window displays. If there is a need for slimline, bright, long lasting LED tape strips this product is a great consideration for architects, lighting designers, audio visual integrators and electrical professionals alike.
It’s also ideally suited for external residential garden spaces such as decking edge lighting, garden bars and steps as well as living rooms, kitchens and home cinemas.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: 6000K white (cool)
IP Rating: IP20 (internal), IP65 Heat Shrink, IP65 Silicone (splash resistant), IP67 Rubber (splash-waterproof)
PCB Colour: White
Chip: 3528 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 4.8W
Input Voltage: 24V
Current (A): 0.6A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm (IP20, IP65HS, IP65S), 11mm (IP67)
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.

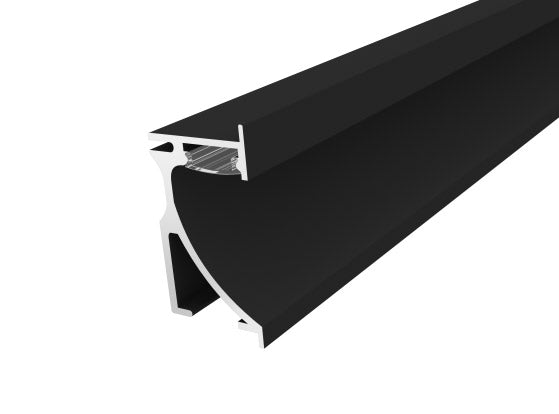

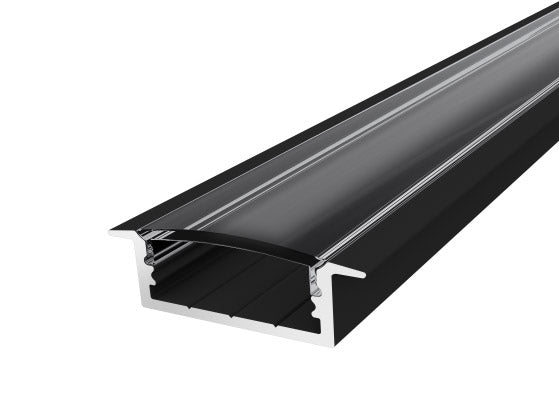

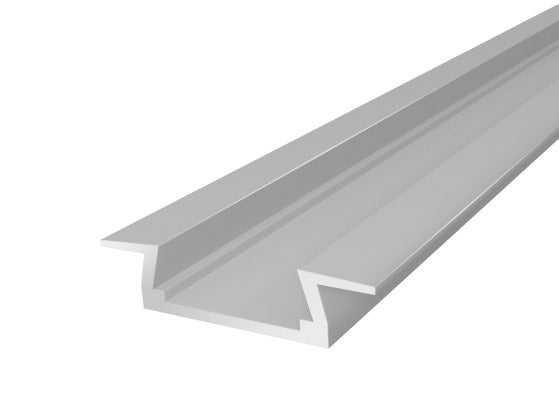

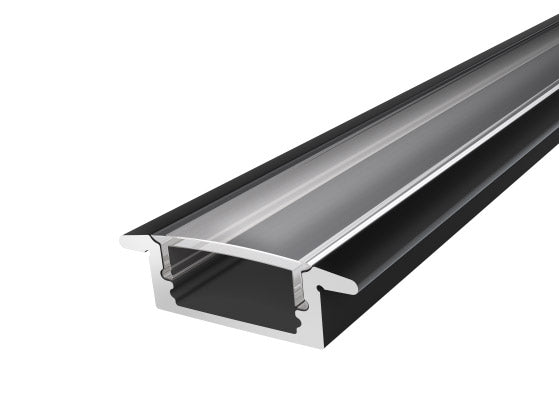

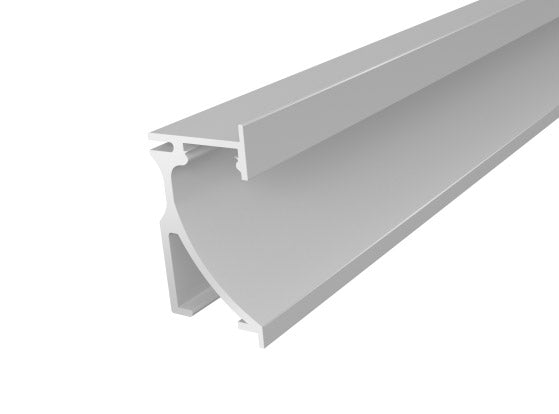

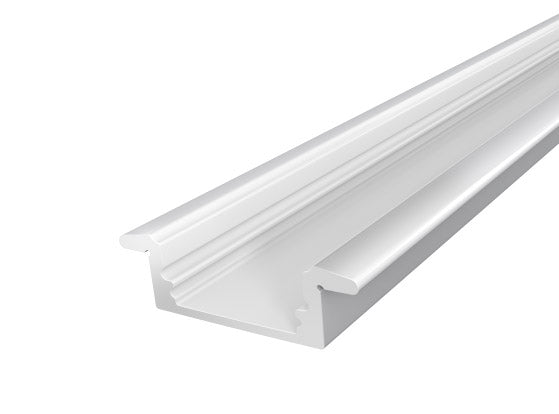

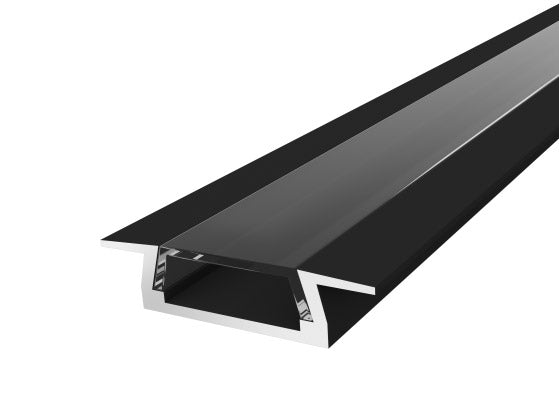

What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
8mm 6000K cool white LED tape. Seamless lighting made simple.
This 9.6 watt 6000K warm white (warmer) LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 120 3528 SMD branded LEDs and is manufactured to a high quality standard, drawing only 9.6 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 9.6-watt LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
This LED strip lights is available in both internal (IP20) and splash proof (IP65) rated options.
IP Rating Options
This bright LED tape comes in either IP20 (internal) or IP65 heat shrink / IP65 silicone gel coating for splash proof, water resistant applications. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
For commercial applications this strip light offers brilliant illumination suited for luxury resorts, restaurants, bars, hotel lobbies and for retail environments and window displays. If there is a need for slimline, bright, long lasting LED tape strips this product is a great consideration for architects, lighting designers, audio visual integrators and electrical professionals alike.
It’s also ideally suited for external residential garden spaces such as decking edge lighting, garden bars and steps as well as living rooms, kitchens and home cinemas.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: 6000K white (cool)
IP Rating: IP20 (internal), IP65 Heat Shrink / IP65 Silicone (splash resistant)
PCB Colour: White
Chip: 3528 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 9.6W
Input Voltage: 24V
Current (A): 0.6A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape / VHB bonding backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
8mm 6000K warm white LED tape. Seamless lighting made simple.
This 9.6 watt 6000K cool white LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 120 3528 SMD branded LEDs and is manufactured to a high quality standard, drawing only 9.6 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 9.6-watt LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. For a more seamless finish it can also be placed within aluminium LED profiles for a more complete look.
The LED strip light is available in several IP rating options ranging from IP20 at 8mm wide through to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is IP20 and ideal for internal applications. Further waterproofing options are available such as IP65 heat shrink (splash proof) and IP67/68 on request. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Environments
For commercial applications this strip light offers brilliant illumination suited for luxury resorts, restaurants, bars, hotel lobbies and for retail environments and window displays. If there is a need for slimline, bright, long lasting LED tape strips this product is a great consideration for architects, lighting designers, audio visual integrators and electrical professionals alike.
It’s also ideally suited for external residential garden spaces such as decking edge lighting, garden bars and steps as well as living rooms, kitchens and home cinemas.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: 6000K white (cool white)
IP Rating: IP20 (internal)
PCB Colour: White
Chip: 3528 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 9.6W
Input Voltage: 24V
Current (A): 0.6A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
8mm 3000K warm white LED tape. Seamless lighting made simple.
This 9.6 watt 3000K warm white LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 120 3528 SMD branded LEDs and is manufactured to a high quality standard, drawing only 9.6 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 9.6-watt LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. For a more seamless finish it can also be placed within aluminium LED profiles for a more complete look.
The LED strip light is available in several IP rating options ranging from IP20 at 8mm wide through to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is IP20 and ideal for internal applications. Further waterproofing options are available such as IP65 heat shrink (splash proof) and IP67/68 on request. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Environments
For commercial applications this strip light offers brilliant illumination suited for luxury resorts, restaurants, bars, hotel lobbies and for retail environments and window displays. If there is a need for slimline, bright, long lasting LED tape strips this product is a great consideration for architects, lighting designers, audio visual integrators and electrical professionals alike.
It’s also ideally suited for external residential garden spaces such as decking edge lighting, garden bars and steps as well as living rooms, kitchens and home cinemas.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: 3000K white
IP Rating: IP65 Heat Shrink (splash resistant)
PCB Colour: White
Chip: 3528 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 9.6W
Input Voltage: 24V
Current (A): 0.6A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
8mm 2700K warmer white LED tape. Seamless lighting made simple.
This 9.6 watt 2700K warmer white (warmer) LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 120 3528 SMD branded LEDs and is manufactured to a high quality standard, drawing only 9.6 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 9.6-watt LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip light is available in several IP rating options ranging from IP20 at 8mm wide through to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape comes with an IP65 heat shrink for splash proof, water resistant applications. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
For commercial applications this strip light offers brilliant illumination suited for luxury resorts, restaurants, bars, hotel lobbies and for retail environments and window displays. If there is a need for slimline, bright, long lasting LED tape strips this product is a great consideration for architects, lighting designers, audio visual integrators and electrical professionals alike.
It’s also ideally suited for external residential garden spaces such as decking edge lighting, garden bars and steps as well as living rooms, kitchens and home cinemas.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: 2700K white (warmer)
IP Rating: IP65 Heat Shrink (splash resistant)
PCB Colour: White
Chip: 3528 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 9.6W
Input Voltage: 24V
Current (A): 0.6A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
8mm roast warm white LED tape. Seamless lighting made simple.
This 9.6 watt 2300K white (roast warm) LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 120 3528 SMD branded LEDs and is manufactured to a high quality standard, drawing only 9.6 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 9.6-watt LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip light is available in several IP rating options ranging from IP20 at 8mm wide through to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape comes with an IP65 heat shrink for splash proof, water resistant applications. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
For commercial applications this strip light offers brilliant illumination suited for luxury resorts, restaurants, bars, hotel lobbies and for retail environments and window displays. If there is a need for slimline, bright, long lasting LED tape strips this product is a great consideration for architects, lighting designers, audio visual integrators and electrical professionals alike.
It’s also ideally suited for external residential garden spaces such as decking edge lighting, garden bars and steps as well as living rooms, kitchens and home cinemas.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: 2300K white (deep roast warm)
IP Rating: IP65 Heat Shrink (splash resistant)
PCB Colour: White
Chip: 3528 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 9.6W
Input Voltage: 24V
Current (A): 0.6A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
8mm single colour LED tape. Seamless lighting made simple.
This 4.8 watt single colour blue LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 60 3528 SMD branded LEDs and is manufactured to a high quality, drawing only 4.8 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 4.8-watt LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip light is available in several IP rating options ranging from IP20 at 8mm wide to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is available in the IP20 and IP rated versions on request. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
For commercial applications this strip light offers brilliant illumination suited for luxury resorts, restaurants, bars, hotel lobbies and for retail environments and window displays. If there is a need for slimline, bright, long lasting LED tape strips this product is a great consideration for architects, lighting designers, audio visual integrators and electrical professionals alike.
It’s also ideally suited for external residential garden spaces such as decking edge lighting, garden bars and steps as well as living rooms, kitchens and home cinemas.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: Blue
IP Rating: IP20
PCB Colour: White
Chip: 3528 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 4.8W
Input Voltage: 24V
Current (A): 0.6A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
10mm single colour red LED tape. Seamless lighting made simple.
This 15-watt single colour red LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, drawing only 15 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 15-watt LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip light is available in several IP rating options ranging from IP20 at 12mm wide to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is available in the IP20 and IP rated versions on request. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
For commercial applications this strip light offers brilliant illumination suited for luxury resorts, restaurants, bars, hotel lobbies and for retail environments and window displays. If there is a need for slimline, bright, long lasting LED tape strips this product is a great consideration for architects, lighting designers, audio visual integrators and electrical professionals alike.
It’s also ideally suited for external residential garden spaces such as decking edge lighting, garden bars and steps as well as living rooms, kitchens and home cinemas.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: Red
IP Rating: IP20
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 15W
Input Voltage: 24V
Current (A): 0.6A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
8mm single colour LED tape. Seamless lighting made simple.
This 4.8 watt single colour green LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 60 3528 SMD branded LEDs and is manufactured to a high quality, drawing only 4.8 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 4.8-watt LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip light is available in several IP rating options ranging from IP20 at 8mm wide to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is available in the IP20 and IP rated versions on request. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
For commercial applications this strip light offers brilliant illumination suited for luxury resorts, restaurants, bars, hotel lobbies and for retail environments and window displays. If there is a need for slimline, bright, long lasting LED tape strips this product is a great consideration for architects, lighting designers, audio visual integrators and electrical professionals alike.
It’s also ideally suited for external residential garden spaces such as decking edge lighting, garden bars and steps as well as living rooms, kitchens and home cinemas.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: Green
IP Rating: IP20
PCB Colour: White
Chip: 3528 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 4.8W
Input Voltage: 24V
Current (A): 0.6A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
10mm single colour LED tape. Seamless lighting made simple.
This 15-watt single colour green LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, drawing only 15 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 15-watt LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip light is available in several IP rating options ranging from IP20 at 12mm wide to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is available in the IP20 and IP rated versions on request. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
For commercial applications this strip light offers brilliant illumination suited for luxury resorts, restaurants, bars, hotel lobbies and for retail environments and window displays. If there is a need for slimline, bright, long lasting LED tape strips this product is a great consideration for architects, lighting designers, audio visual integrators and electrical professionals alike.
It’s also ideally suited for external residential garden spaces such as decking edge lighting, garden bars and steps as well as living rooms, kitchens and home cinemas.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: Green
IP Rating: IP20
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 15W
Input Voltage: 24V
Current (A): 0.6A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
This mini cutting tunable white LED tape allows for perfect cut and fit. Apply within retail window displays, watch & jewellery cabinets. Bright 19W/m, 24V.
RGBW COB LED Tape. Light completion.
Working on a big or small project that requires custom lengths and expert advise? Send us an email via sales@upriseled.com or Whatsapp us details to 07957 180 481.
*Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure seamless "no dot" RGBW LED strip light solution.
Create a colour changing light line that's seamless on the eye. Ideal for undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
This 16-watt per meter RGBW COB LED strip is slim, flexible, offering excellent brightness and colour output. Utilising the latest in flip chip COB technology with a long expected life of 50K hours.
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGBW colour changing (5 wire) LED Strip LightSolder Cable to RGBW colour changing (5 wire) LED Strip Light
Colour Temperatures
This strip offers a dedicated 3000K warm white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "no dot" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 560LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K+6000K)
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 16W
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
An aluminium LED extrusion profile designed for pelmet lighting projects.
It comes complete with a set of end caps and fix clips, which are made out of plastics. Essential part of the aluminium profile is the professional diffuser that is available in transparent (clear), diffused (Semi Frosted) or milky (Opal).
The size is 26mm wide and 70mm high. The internal width is 14mm. Standard lengths are available in 1M and 2M. Available bespoke cut lengths also include 0.5M/1.5M/2.5M/3M. Constructed with 6063 T5 Aircraft Aluminum, which makes it fit for purpose.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product type: Skirting
Compatible with: Suitable for LED tape width :<13mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Plastic
Finish: Silver/Black/White
PC Cover: Transparent/Diffused/Milk optional
Width: 26mm
Internal Width: 14mm
Height: 70mm
Length: 1M/2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
1 meter package size: 102X13X17CM
2 meter package size: 202 X 13 X 17CM
G.W (Per meter): 1.1kg
Warranty: 5 Year Warranty
This is a high-quality LED profile designed for recessed applications. It comes with a set of aluminium profile, plastic end caps and metal fix clips.
This LED channel comes complete with a professional diffuser that is available in transparent (clear), diffused (Semi Frosted) or milky (Opal).
The cutout hole size is 15.2mm wide, 5.9mm high, 22mm (outer flange width). Standard lengths are available in 1M and 2M. Available cut lengths also include 0.5M/1.5M/2.5M/3M. Constructed with durable, premium quality 6063-T5 Aircraft Aluminum.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product type: Slim Recessed
Compatible with: Suitable for LED tape width:<11mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal
Finish: Silver/Black/White
PC Cover: Transparent/Diffused/Milk optional
Cutout Hole: 15.2mm
Width: 15.2mm
Outer Flange Width: 22mm
Internal Width: 11.2mm
Height: 5.9mm
Length: 1M/2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
1 meter package size: 100PCS/Carton,102X13X17CM
2 meter package size: 100PCS/Carton, 202X13X17CM
G.W (Per meter): 0.12kg
Warranty: 5 Year Warranty
A staircase aluminium profile for LED strip lighting. Compatible with LED strip lights that are 13mm wide or less.
It includes fix clips and metal end caps for a complete aluminium channel installation. For a regulated heat dissipation, it's supplied with a professional diffuser that is available in transparent (clear), diffused (Semi Frosted) or milky (Opal).
It comes with 65mm width and 27.5mm height. The internal width is 13.3mm. Standard lengths are available in 1M and 2M. Available cut lengths also include 0.5M/1.5M/2.5M/3M. Constructed with 6063 T5 Aircraft Aluminum.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product type: Stair Nosing
Compatible with: Suitable for LED tape width :<13mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Metal
Finish: Silver/Black/White
PC Cover:Transparent/Diffused/Milk optional
Width: 65mm
Internal Width: 13.3mm
Height: 27.5mm
Length: 1M/2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
Warranty: 5 Year Warranty
This is a recessed aluminium extrusion for LED strip lighting.
It includes end caps and fix clips, which are made out of plastics. Supplied with a professional diffuser that is available in transparent (clear) or diffused (Semi Frosted).
The cutout hole size is 23.5mm wide, 10mm high, 30.5mm (outer flange width). The internal width is 20mm. Standard lengths are available in 1M and 2M. Available bespoke cut lengths also include 0.5M/1.5M/2.5M/3M. The construction is based on 6063 T5 Aircraft Aluminum.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product Type: Slim Recessed
Compatible with: Suitable for LED tape width: 20mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Plastic
Finish: Silver/Black/White
PC Cover: Transparent/Diffused
Width: 23.5mm
Outer Flange Width: 30.5mm
Internal Width: 20mm
Height: 10mm
Length: 1M/2M
Cutout Hole: 23.5mm
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
1 meter package size: 102X13X17CM
2 meter package size: 202X13X17CM
G.W (Per meter): 0.16KG
Warranty: 5 Year Warranty
This waterproof LED profile is IP65 and ideal for surface mount walkover installations. It comes complete with a length of aluminium profile, plastic end caps and metal fix clips.
Important part of the extrusion is the professional glass diffuser that is available in either transparent (clear) or diffused (Semi Frosted)
The size is 19.2mm wide and 8.5mm high. The internal width is 16.2mm. Standard lengths are available in 1M and 2M. Available lengths also include 0.5M/1.5M/2.5M/3M. Constructed with 6063 T5 Aircraft Aluminum, which makes it tough and fit for purpose.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product type: Walkover
Compatible with: Suitable for LED tape width :<11mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal
Finish: Silver/Black/White
PC Cover: Transparent/Diffused
Width: 19.2mm
Internal Width: 16.2mm
Height: 8.5mm
Length: 1M/2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
1 meter package size: 100PCS/Carton,102X13X17CM
2 meter package size: 100PCS/Carton, 202 X 13 X 17CM
G.W (Per meter): 0.22KG
Warranty: 5 Year Warranty
A slim aluminium extrusion profile designed for surface mounted LED lighting projects.
This bendable LED profile produces a smoother light appearance. It comes with plastic end caps and metal fix clips. Supplied with a professional diffuser that is available in transparent (clear), diffused (Semi Frosted) or milky (Opal).
The size is 18mm wide and 5.7mm high. The internal width is 13.5mm. Standard lengths are available in 1M and 2M. Available bespoke cut lengths also include 0.5M/1.5M/2.5M/3M. Constructed with 6063 T5 Aircraft Aluminum, which makes it tough and fit for purpose.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product type: Slim Bendable
Compatible with: Suitable for LED tape width :13mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal
Finish: Silver/Black/White
PC Cover: Transparent/Diffused/Milk optional
Width: 18mm
Internal Width: 13.5mm
Height: 5.7mm
Length: 1M/2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
G.W (Per meter): 0.14KG
Warranty: 5 Year Warranty
This is an aluminium extrusion designed for slim recessed lighting applications. This LED profile also acts as a heatsink, offering greater thermal management.
Supplied with plastic end caps and both, metal or plastic fix clips. The profile comes complete with a professional diffuser that is available in transparent (clear), diffused (Semi Frosted) or milky (Opal).
Compatible with LED strips that are up to 12mm wide.
The cutout hole size is 17.1mm wide, 8mm high, 23.2mm (outer flange width). The internal width is 12mm. Standard lengths are available in 1M and 2M. Available bespoke cut lengths also include 0.5M/1.5M/2.5M/3M. The base of the construction is 6063 T5 Aircraft Aluminium, which makes it tough and fit for purpose.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product Type: Slim Recessed
Compatible with: Suitable for LED tape width: <12mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal/Plastic optional
Finish: Silver/Black/White
PC Cover: Transparent/Diffused/Milk optional
Width: 17.1mm
Outer Flange Width: 23.2mm
Internal Width: 12mm
Height: 8mm
Length: 1M/2M
Cutout Hole: 17.1mm
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
1 meter package size: 125PCS/Carton,102X13X17CM
2 meter package size: 125PCS/Carton, 202X13X17CM
G.W (Per meter): 0.14KG
Warranty: 5 Year Warranty
This black finished single door sensor switch offers simple on/off illumination when a single cabinet door is opened and shut. Complete with a single individual sensor for individual door sensing.
--
*In Stock UK - 12/24V DC Single Sensor Switch for Cabinet/Wardrobe Doors (Black)
12/24V DC Single Sensor Switch for Cabinet/Wardrobe Doors (Individual output dimming)
This single sensor switch consists of one inductive sensor which can be switched on or off, without the need for a physical switch. It connects directly to an individual output of our Cabinet LED driver range. It can also be wired in series to a standard 12V/24V power supply. Rated for either 12V/24V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications.
What is the operation of this 12/24V DC single sensor switch for cabinet/wardrobe doors?
The operation is simple, the sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V/24V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number: SDS-2C
Product Type: 5V/12V/24V DC black single sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 5V-24V DC
Max Output Current: 3A
Maximum Power: 60W (12V) 120W (24V)
Detection Range: < 6cm
Design
Material: PVC plastic
Finish: Black
Dimensions
Size: Ø 12 x 13 mm
Outer Flange Size: 10mm
Cutout hole: Ø 8 mm
Cutout Depth: 12mm
Total Length: 13mm
Total tail distance: 2.5M
Sensor Tail length: 1M
Extension Tail: 1.5M (To supply)
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Cutout hole: Ø 8 mm
Cutout Depth: 12mm
Guarantee
Certification: CE, UKCA, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
Beautifully finished in brushed stainless steel, this undercabinet light creates low profile 2700K warm white lighting. Ideal for kitchen cabinets and displays. 12V.--
2700K LED Surface Mounted Undercabinet Light (Pad Style) with 2000mm tail. 12V.
A sleek, plug & play LED undercabinet light that's ideal for worktop illumination. Finished in silver with a 2700K colour temperature it provides great working light for kitchen surfaces or for retail display lighting. At just 4W energy consumption it's an eco friendly micro LED surface pad light that's built to last. 12V rated.
Product Compatibility
This product works well with our range plug & play 12V cabinet LED drivers
24W 6 Output Cabinet LED Driver (12V) With Mains Lead
60W 6 Output Cabinet LED Driver (12V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: UP27-MS-12
Product Type: Surface Cabinet LED Pad Light
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12V DC
Power Consumption: 4W (12V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Brushed Steel
Dimensions
Length: 190mm
Width: 70mm
Depth: 6mm
Installation
Mounting: Embedded with x2 countersunk screw holes and includes x2 philips countersunk screws for precision fit mounting.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
Beautifully finished in brushed stainless steel, this undercabinet light creates low profile 3500K warm white lighting. Ideal for kitchen cabinets and displays. 12V.--
3500K LED Surface Mounted Undercabinet Light (Pad Style) with 2000mm tail. 12V.
A sleek, plug & play LED undercabinet light that's ideal for worktop illumination. Finished in silver with a 3500K colour temperature it provides great working light for kitchen surfaces or for retail display lighting. At just 4W energy consumption it's an eco friendly micro LED surface pad light that's built to last. 12V rated.
Product Compatibility
This product works well with our range plug & play 12V cabinet LED drivers
24W 6 Output Cabinet LED Driver (12V) With Mains Lead
60W 6 Output Cabinet LED Driver (12V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: UP35-MS-12
Product Type: Surface Cabinet LED Pad Light
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12V DC
Power Consumption: 4W (12V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Brushed Steel
Dimensions
Length: 190mm
Width: 70mm
Depth: 6mm
Installation
Mounting: Embedded with x2 countersunk screw holes and includes x2 philips countersunk screws for precision fit mounting.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
Beautifully finished in brushed stainless steel, this undercabinet light creates low profile 3000K warm white lighting. Ideal for kitchen cabinets and displays. 12V.--
4000K LED Surface Mounted Undercabinet Light (Pad Style) with 2000mm tail. 12V.
A sleek, plug & play LED undercabinet light that's ideal for worktop illumination. Finished in silver with a 3000K colour temperature it provides great working light for kitchen surfaces or for retail display lighting. At just 4W energy consumption it's an eco friendly micro LED surface pad light that's built to last. 12V rated.
Product Compatibility
This product works well with our range plug & play 12V cabinet LED drivers
24W 6 Output Cabinet LED Driver (12V) With Mains Lead
60W 6 Output Cabinet LED Driver (12V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: UP40-MS-12
Product Type: Surface Cabinet LED Pad Light
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12V DC
Power Consumption: 4W (12V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Brushed Steel
Dimensions
Length: 190mm
Width: 70mm
Depth: 6mm
Installation
Mounting: Embedded with x2 countersunk screw holes and includes x2 philips countersunk screws for precision fit mounting.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
This plug & play silver recessed LED spot light is ideal for kitchen cabinet and furniture displays. It provides a 4000K neutral white light temperature and consumes just 1.5W of power. Easy setup & economic.--6000K Silver Recessed Spot Light with 2000mm tail. 24V
A sleek, plug & play low profile recessed furniture LED spot light that's ideal for cabinet illumination. Finished in silver with a 6000K colour temperature it provides great working light for kitchen surfaces. At just 1.5W energy consumption it's an eco friendly micro LED downlight that's built to last. 24V rated.
Product Compatibility
This product works well with our range plug & play 24V cabinet LED drivers
30W 6 Output Cabinet LED Driver (24V) With Mains Lead
60W 6 Output Cabinet LED Driver (24V) With Mains Lead
100W 6 Output Cabinet LED Driver (24V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: RD60-MS-24
Colour Temperature: 6000K cool white
Product Type: Recessed Cabinet LED Downlight / Spotlight
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 24V DC
Power Consumption: 1.5W (24V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Anodized Silver (Top), Stainless Steel (Bottom)
Dimensions
Outer flange: Ø 35mm diameter
Cutout hole: Ø 28mm (spring clip mounted)
Depth: 12mm
Installation
Mounting: Recessed spring clip, x2 screws spring clip holders.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
