This plug & play silver recessed LED spot light is ideal for kitchen cabinet and furniture displays. It provides a 4000K neutral white light temperature and consumes just 1.5W of power. Easy setup & economic.--6000K Silver Recessed Spot Light with 2000mm tail. 12V
A sleek, plug & play low profile recessed furniture LED spot light that's ideal for cabinet illumination. Finished in silver with a 6000K colour temperature it provides great working light for kitchen surfaces. At just 1.5W energy consumption it's an eco friendly micro LED downlight that's built to last. 12V rated.
Product Compatibility
This product works well with our range plug & play 12V cabinet LED drivers
24W 6 Output Cabinet LED Driver (12V) With Mains Lead
60W 6 Output Cabinet LED Driver (12V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: RD60-MS-12
Colour Temperature: 6000K cool white
Product Type: Recessed Cabinet LED Downlight / Spotlight
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12V DC
Power Consumption: 1.5W (12V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Anodized Silver (Top), Stainless Steel (Bottom)
Dimensions
Outer flange: Ø 35mm diameter
Cutout hole: Ø 28mm (spring clip mounted)
Depth: 12mm
Installation
Mounting: Recessed spring clip, x2 screws spring clip holders.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
This plug & play silver recessed LED spot light is ideal for kitchen cabinet and furniture displays. It provides a 4000K neutral white light temperature and consumes just 1.5W of power. Easy setup & economic.--4000K Silver Recessed Spot Light with 2000mm tail. 12V
A sleek, plug & play low profile recessed furniture LED spot light that's ideal for cabinet illumination. Finished in silver with a 4000K colour temperature it provides great working light for kitchen surfaces. At just 1.5W energy consumption it's an eco friendly micro LED downlight that's built to last. 12V rated.
Product Compatibility
This product works well with our range plug & play 12V cabinet LED drivers
24W 6 Output Cabinet LED Driver (12V) With Mains Lead
60W 6 Output Cabinet LED Driver (12V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: RD40-MS-12
Colour Temperature: 4000K neutral white
Product Type: Recessed Cabinet LED Downlight / Spotlight
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12V DC
Power Consumption: 1.5W (12V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Anodized Silver (Top), Stainless Steel (Bottom)
Dimensions
Outer flange: Ø 35mm diameter
Cutout hole: Ø 28mm (spring clip mounted)
Depth: 12mm
Installation
Mounting: Recessed spring clip, x2 screws spring clip holders.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
This plug & play silver recessed LED spot light is ideal for kitchen cabinet and furniture displays. It provides a 4000K neutral white light temperature and consumes just 1.5W of power. Easy setup & economic.--4000K Silver Recessed Spot Light with 2000mm tail. 24V
A sleek, plug & play low profile recessed furniture LED spot light that's ideal for cabinet illumination. Finished in silver with a 4000K colour temperature it provides great working light for kitchen surfaces. At just 1.5W energy consumption it's an eco friendly micro LED downlight that's built to last. 24V rated.
Product Compatibility
This product works well with our range plug & play 24V cabinet LED drivers
30W 6 Output Cabinet LED Driver (24V) With Mains Lead
60W 6 Output Cabinet LED Driver (24V) With Mains Lead
100W 6 Output Cabinet LED Driver (24V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: RD40-MS-24
Colour Temperature: 4000K neutral white
Product Type: Recessed Cabinet LED Downlight / Spotlight
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 24V DC
Power Consumption: 1.5W (24V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Anodized Silver (Top), Stainless Steel (Bottom)
Dimensions
Outer flange: Ø 35mm diameter
Cutout hole: Ø 28mm (spring clip mounted)
Depth: 12mm
Installation
Mounting: Recessed spring clip, x2 screws spring clip holders.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
Beautifully finished in brushed stainless steel, this undercabinet light creates low profile 3000K warm white lighting. Ideal for kitchen cabinets and displays. 12V.--
3000K LED Surface Mounted Undercabinet Light (Pad Style) with 2000mm tail. 12V.
A sleek, plug & play LED undercabinet light that's ideal for worktop illumination. Finished in silver with a 3000K colour temperature it provides great working light for kitchen surfaces or for retail display lighting. At just 4W energy consumption it's an eco friendly micro LED surface pad light that's built to last. 12V rated.
Product Compatibility
This product works well with our range plug & play 12V cabinet LED drivers
24W 6 Output Cabinet LED Driver (12V) With Mains Lead
60W 6 Output Cabinet LED Driver (12V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: UP30-MS-12
Product Type: Surface Cabinet LED Pad Light
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12V DC
Power Consumption: 4W (12V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Brushed Steel
Dimensions
Length: 190mm
Width: 70mm
Depth: 6mm
Installation
Mounting: Embedded with x2 countersunk screw holes and includes x2 philips countersunk screws for precision fit mounting.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
This plug & play silver recessed LED spot light is ideal for kitchen cabinet and furniture displays. It provides a 3000K warm white light temperature and consumes just 1.5W of power. Easy setup & economic.
--
3000K Silver Recessed Spot Light with 2000mm tail. 12V
A sleek, plug & play low profile recessed spot light that's ideal for cabinet illumination. Finished in silver with a 3000K colour temperature it provides great working light for kitchen surfaces. At just 1.5W energy consumption it's an eco friendly micro LED downlight that's built to last. 12V rated.
Product Compatibility
This product works well with our range plug & play 12V cabinet LED drivers
24W 6 Output Cabinet LED Driver (12V) With Mains Lead60W 6 Output Cabinet LED Driver (12V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: RD30-MS-12
Colour Temperature: 3000K warm white
Product Type: Recessed Cabinet LED Downlight / Spotlight
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12V DC
Power Consumption: 1.5W (12V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Anodized Silver (Top), Stainless Steel (Bottom)
Dimensions
Outer flange: Ø 35mm diameter
Cutout hole: Ø 30mm (spring clip mounted)
Cutout hole: Ø 28mm (No spring clip mounted)
Depth: 12mm
Installation
Mounting: Recessed spring clip, x2 screws spring clip holders.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
A simple to setup Wifi 5CH LED tape controller receiver. Download the Tuya app, connect your RGBTW LED tape lights and create a colourful dream scene for your space.
[caption id="attachment_21019" align="alignnone" width="161"] How to setup LED strip lights with Alexa (Echo Show 5) voice[/caption]
WA-5UP instructions--Smart Wifi 5-Channel CCT & RGBTW LED Strip Controller (12V-24V)
Download WA-5UP instructions for installation support
Features
Alexa and Google Assistant Compatible
Control via Smart Device via Tuya App.
DIM, Smart Dual-White (CCT), RGBCW (RGB+CCT) 4 in 1 constant voltage LED controller. 4A per channel, 5 channels output.
Download Tuya Smart application and control from mobile wirelessly
Control single colour, tuneable white (CCT), RGB, RGBW, RGBCW and RGB+CCT LED lighting
Setup
Compatible with Tuya application for simple wireless control via mobile or tablet device. Download for installation support.
Specifications
General
Part Number: WA-5UP
Product Type: Wifi 5CH LED Controller / Receiver
IP Rating: IP20
Brand: Uprise
Electrical
Input Voltage: 12-24VDC
Output Current: 5CH, 6A/CH (Total output Max.15A)
Output Power:
Output type: Constant Voltage
Mobile Application
Required Application: Tuya Smart App
Dimensions
Width: 38mm
Height: 23mm
Length: 124mm
Installation
Mounting: x2 Screws
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: White cardboard box
Net Weight: 65g
System Parameters
The max power is 15A, the controller can support around (12*15=180W or 24*15=360W)
Generally speaking, our controller is suitable for up to 10m led strip per controller without brightness degradation. If you connect up to 20m to 25m, the brightness will be affected.
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V/24V single colour, RGB, RGBW LED tape lights or RGBTW LED strips. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
This flexible, high output RGB LED tape light uses the highest quality Epistar LEDs for excellent light performance. 15W/M, 5M Reel.
10mm colour changing RGB LED tape. Beautiful colours that set the mood.
This 15-watt RGB LED tape light is a continuous LED lighting source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED ribbon, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, outputs up to 635.13 (RGB) lumens per meter, while consuming only 15 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
Our professional, long lasting RGB colour changing LED tapes are the standard in creating exciting, vibrant shades throughout your space. With millions of emotion inducing colours to choose from you get to set the scene. Ideal for commercial applications where fit and forget is a must.
We also supply RGBW and RGBTW colour changing LED tapes if added white visual effects are desired.
Colour Rendering Index (CRI)
This radiant LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this bright LED ribbon outputs 635.13 (RGB) lumens per meter.
Light Diffusion
When illuminating any surface, our flexible LED strips provide a seamless linear effect as standard. Our LED strips can be used in combination with our aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise’s 15-watt LED tape, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 50mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Simply enter your custom lengths during the online purchasing process, call us, or use our LED project configurator to add UP60-S5050RGB-10MM-15W-12V-5M and obtain an estimate in seconds.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED ribbon is just 10mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is available in the IP20 , IP52 , IP65H , IP65 , IP67 & IP67E versions. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
This LED tape provides excellent lighting for commercial applications, ideal for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGB LED Tape
Colour: RGB
IP Rating: IP20 / IP52 / IP65H / IP65 / IP67 / IP67E
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 635.13Lm/m (RGB)
Lumens/w: 44.11Lm/w (RGB)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 15W
Input Voltage: 12V
Current (A): 1.2A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 4 Core Flat Cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*Supplied on 5M reel. Flexible, cuttable, stickable and colourfully flowable. This bright 60 LED per meter RGBW (4000K) digital LED tape is ideal for creating artistic light visuals. 5V.
*Supplied on 5M Reel. This individually controllable RGBW (4000K) pixel LED tape offers fluid, exciting effects. Create full colour strobes, flows and pixel patterns easily. 5V
Specifications
Voltage: 5VSupplied Length: 5MWattage: 12W per meterLEDs per meter: 30IC Type: WS2811Cut Points: 33mmLED Spacings: 33mmColour: RGB-NWPCB Colour: WhitePCB Thickness: 2 OunceVoltage drop: 4M trail off (Power both ends)Data Flow: Arrow points away from data/power source.Cable: 3 core flat cableCable Colours: Red +, Black -, Yellow DataCut to length service: Available on request
Wiring Diagram
Our digital RGBW LED strip is a flexible full colour pixel LED strip light. It has amongst the widest range of uses out of all types of flex tape strips. Championing individually addressable pixels that can each be controlled with the widest gamut of colour, full RGBW. This means you can reach the full colour spectrum whilst also having precision control over every single LED. This level of control allows for a wide scope of both colour generation and kinetic visual effects. Animations such as roasting flames, night sky twinkles, sparkles, static and moving gradients along with cross fades, bounces, pulses, comets and even low resolution video to name a few examples.
Uprise's tried and tested digital LED strip is made to a high standard using the best components. We call this pioneer grade. Within the make up of our strip is a diffused LED offering superior colour mixing. Use this strip as a feature light within alcoves, bars, restaurants in the home for kitchen entertaining, lounges for relaxation or even in home cinemas for dramatic effect. Due to the intelligent range of colour our pixel strip is also ideal within custom lights boxes to improve mood and wellbeing. Studies show that introducing smart lighting that mimics the bodies natural circadian rhythm can improve emotional and psychological wellbeing.
Our Digital LED Strip 30 RGBW strip is available in two IP rated types.
IP20 - For internal non waterproof fit outs.
IP65 - For splash proof applications such as bars, clubs or other areas where splashes of water or liquid ingress may be present.
In addition our pixel LED strip comes is available in two PCB paint finishes, white or black.
White - Typical for everyday applications such as in coves, within aluminium profiles or within lights boxes. When in an enclosure white finish helps reflect the light to improve overall brightness and wash out of visual.
Black - This is ideal for areas that are finished in black and the desire is to only see the pixel LEDs. The result? An almost ghost like visual.
Should you require something brighter or a higher definition of pixel LEDs, we have the following products available.
Digital LED Strip RGBW 60 - Our 60LED per meter digitally addressable RGBW LED strip packs a serious punch. Consisting of of twice as many LEDs as our 30LED version it's ideal when you need extra brightness.
Q) Are these digital LED strips pixel mappable?A) Yes these can be pixel mapped via any leading control software.
Q) What is pixel mapping?A) Pixel mapping is when each LED is used as a controllable pixel in a larger grid or matrix. Imagine a lower resolution but bright display. Now imagine that display is a single yet flexible line, that's an addressable pixel LED strip. Pixel LEDs can come in many different product forms including batons, large domes, orbs and even IP rated nodes.
Q) How do I install and program an RGBW digital LED strip?A) Please our installation and setup guide.
Q) What do "channels" mean? I notice you mention each LED uses 4 channels, what does this actually mean?A) A channel is assigned to control different parameters also known as a (personality) of a light. Traditionally this could be a colour, rotation or strobe and have values of 0-255. In our case it's the 4 colours of each individual pixel LED, red, green, blue and white. 4 channel.
Q) What is sACN or Artnet?A) For more information on sACN or Artnet checkout art-net.org.uk
Q) What is DMX?A) DMX stands for digital multiplex. See this article for more information
Q) What is DMX universe 512?A) A DMX universe consists of 512 channels, remember how we answered what channels were before? Well a single universe is made up of 512 channels. This means that 1 dmx universe can control 512/3 (RGB) = 170 RGB pixels or 512/4 (RGBW) = 128 RGBW pixels.
Q) What power supply do I need to run these strips?A) This particular strip is 5v and consumes 12W/M or 60W per 5M supplied reel. You will require a 5V 100W / 200W / 320W or larger power supply.
Q) What controller do I need to control these strips?A) Feel to contact us on 0116 406 2959 to discuss your project needs, we can assist you in bring your ideas to life.
Q) How do I control these lights from my mobile or iPad?A) There are several ways of achieving this and it will depend on the overall goal of your project. Contact us today, we're here to help.
*5M Reel. A professional 60 LED per meter RGB digital LED tape light. Pixel programmable, dynamic and versatile, this 18W/M LED strip is ideal for gym spin studios, clubs, bars and for stage backlighting or events. 5V.
*5M Reel. A professional RGB digital LED tape strip that is single pixel addressable. Create beautiful artistic visuals for entertainment, leisure and fitness spin studios. 30LED/M.

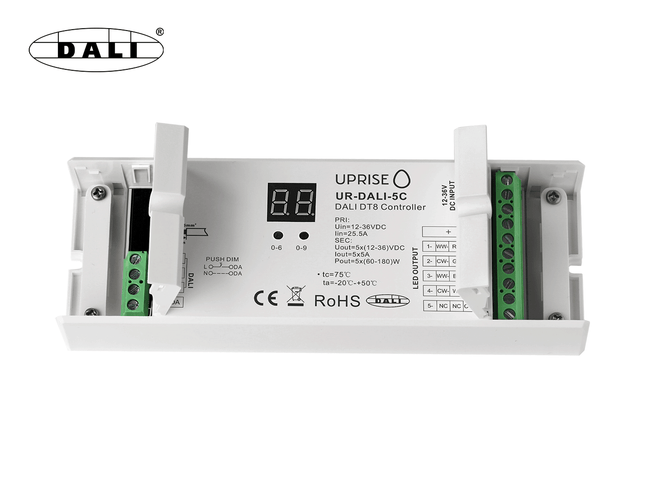

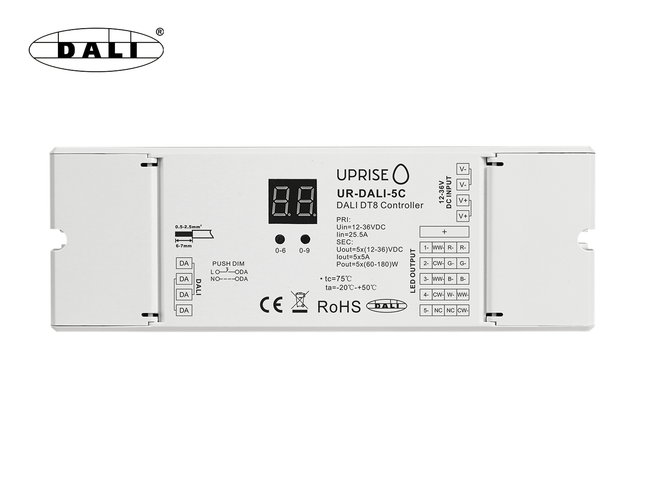

UR-DALI-5C_instruction.pdf--DALI 5CH LED DT8 Dimmer For RGBCW (12V-36V)
Download UR-DALI-5C_instruction.pdf for installation support.
Features
Compliance standards include IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
Includes built in DALI 2 interface and DALI DT8 device.
DT8 control gear with multiple addresses enabled.
Multiple devices integrated within one control system
7 in 1 multi-functionality, includes TC (tunable-dual white), RGBWAF (RGB, White, Amber + Free Colour), XY (XY Chromaticity), XY + Tc, RGB + Tc, XY + W (DT6)
Assign DALI address through manual set buttons, showed via the display
Both single-address and multi-addresses types can be set as different device types.
Single address types include: TC (tunable-dual white), RGBWAF (RGB, White, Amber + Free Colour), XY (XY Chromaticity)
Multiple address types include: 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
Outputs 5CH (Channel) constant voltage
Five PWM outputs are controllable via DALI device type 8 (T8)
Colour control, as defined per official DALI specification device type 8
Compatible with universal DALI masters that support DT8 commands, supports DT8 device commands
Setup configuration via DALI master USB interface
Independent push dim mode control allows both colour temperature and RGB colour control, even without DALI
IP20 for internal installation
Specifications
General
Part Number: UR-DALI-5C
Product Type: DALI Compatible 5CH LED DT8 Dimmer
IP Rating: IP20
Brand: Uprise
Dimming Range: 0.1%-100%
Ambient Temperature: - 20°C ~ +50°C
Electrical
Input Voltage: 12-36VDC
Output Current: 5 x 5A
Output Power: 5 x (60-180)W
Output type: Constant Voltage
DALI Consumption: 2mA
Dimensions
Width: 59mm
Height: 29mm
Length: 170mm
Installation
Mounting: x2 Screws
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
Safety & Warnings
Installation Warning: DO NOT install with power applied to the device.
Waterproof Warning: This device is NOT waterproof, DO NOT expose to moisture.
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This LED Controller is compatible with any 12V/24V/36V single colour, dual white (tunable), RGB / RGBW / RGBTW (RGB + Dual White) LED tape strip lights or 12V/24V/36V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

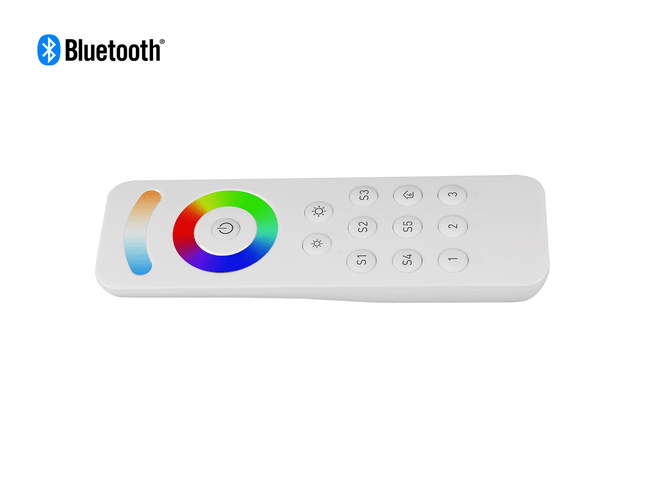

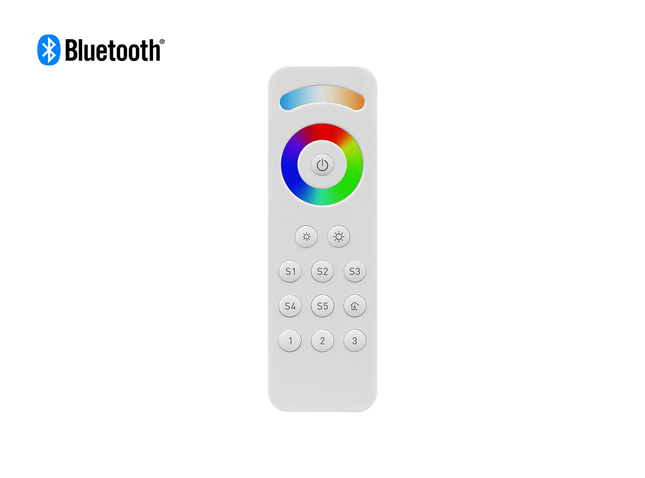

UR-BTR_Instruction.pdf--Bluetooth RGBCW (RGB + CCT + DIM) LED Remote
Download UR-BTR_Instruction.pdf for installation support.
Features
RGB, RGBW, RGB + Tunable White (CCT) Remote
Upto 3 zones can be controlled via RF+Bluetooth receiver
The RGB and CCT channels are separately controllable
Save 5 independent scenes and recall each of them per zone
Simple & fast pairing to RF+Bluetooth receivers simply via pairing button.
Greater control distance with mesh network system utilising receiver to receiver signal transmission.
Several receivers can be controlled via a single remote.
Pair upto a maximum of 8 remotes with each receiver.
Control reception status is quickly synced to the smart App.
Achieve upto 30M transmission between each two neighbouring devices.
Eco friendly with low bluetooth power consumption results in long battery life.
Specifications
General
Part Number: UR-BTR
Operating Temperature: 0-40°C
Relative Humidity: 8% to 80%
Product Type: Bluetooth Compatible LED Remote Controller (Handset)
IP Rating: IP20
Brand: Uprise
Product Data
Protocol: Bluetooth
Operation Voltage: 3V(2*AAA battery)
Transmission Frequency: 2.4GHz
Transmission Range (free field): 30m
Dimming Range: 0.1%-100%
Dimensions
Width: 44mm
Height: 17mm
Length: 140mm
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
Safety & Warnings
Batteries: This device contains AAA batteries that should be safely stored and disposed properly once used.
Waterproof Warning: This device is NOT waterproof, DO NOT expose to moisture.
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

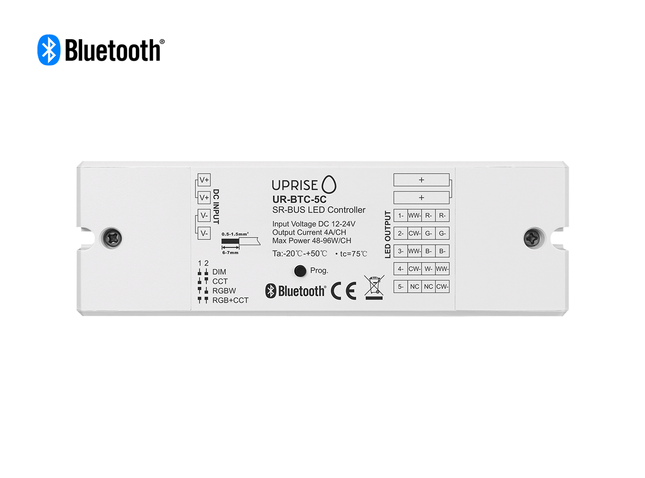

UR-BTC-5C_instruction.pdf--Bluetooth 5CH LED Controller Receiver For RGBCW (12V-24V)
Download UR-BTC-5C_instruction.pdf for installation support.
Features
Universal 4 in 1 wireless RF+Bluetooth LED controller, with 2.4Gz radio frequency control.
4 separate operating modes, including Dimmable (DIM), Tunable White 1500K-6000K (CCT), RGBW and RGB+CCT (RGB Colour + Smart Whites) in 1 controller, selectable by simple dial switch. Control 1500K, 2000K, 2100K, 2300K, 2500K, 2700K, 3000K, 3500K, 4000K or 6000K white LED tape strip lights via bluetooth.
Enables simple ON/OFF, dimming light intensity, smart (tunable) white control, RGB / RGBW / RGB-CW-WW colour changing of connected LED lights.
Powerful control functionality for Single Colour, Tunable Dual White (CCT), RGB, RGBW, RGB+CCT LED tape lights
Smart App and Remote Control (RF) controllable. Gateway is not required for local control.
Quick and simply pairing to smart application, just push the prog. button
Due to intelligent mesh network, longer control distance is achieved, transmits a signal to neighbouring devices
Achieve a transmission distance of up to 30M between every two neighbour devices
Two-way encrypted communication and quick status feedback, offering safe & reliable data transmission
Also compatible with our universal RF+Bluetooth remote controllers, each LED controller pairs with upto max 8 remotes
Need cloud control? Achieve remote access, seamlessly working with Amazon Alexa and Google Home
IP Rating: IP20 (Non waterproof, for internal use)
Specifications
General
Part Number: UR-BTC-5C
Product Type: Bluetooth Compatible 5CH LED Controller / Receiver
IP Rating: IP20
Brand: Uprise
Electrical
Input Voltage: 12-24VDC
Output Current: 5CH, 4A/CH
Output Power: 240-480W
Output type: Constant Voltage
Dimensions
Width: 46.5mm
Height: 16mm
Length: 145mm
Installation
Mounting: x2 Screws
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12-24V 2 core single colour LED tape strip or 12-v24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

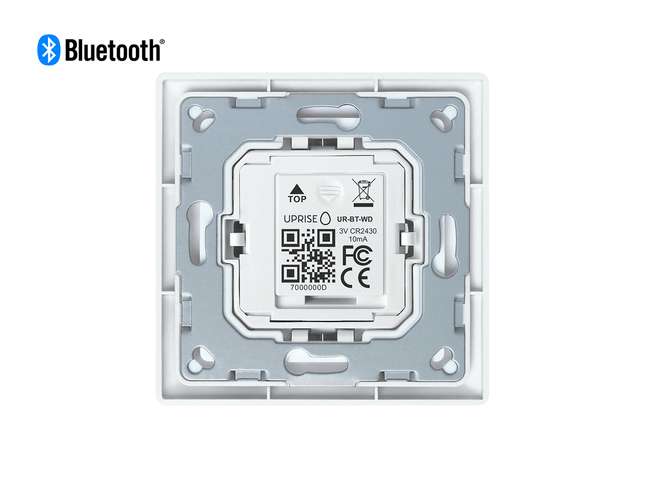

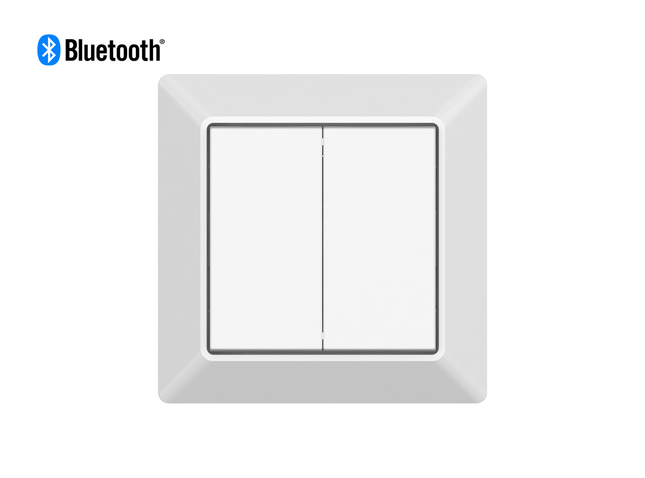

UR-10V-D instructions.pdf --Bluetooth Wall Mounted Dimmer
Download UR-BT-WD_Instruction.pdf for installation support.
Features
Configurable 4 button smart wall switch, works with RF (Radio Frequency) & Bluetooth
Economic with ultra low power consumption, battery powered.
Quick, simple push button setup to pair with RF & Bluetooth receivers
Easily configurable via App with several functions and settings
Simply turn ON/OFF, adjust brightness, select any RGB & tunable white (CCT) colour with ease
Trigger saved light scenes, adaptable colour sequences or preset scenes in App
Achieve greater control within mesh network, each receiver can transmit signal to one another
Operates at 2.4 GHz globally
The controller receiver status can be synchronized and updated directly to the App
Achieve a transmission distance of up to 30M between every two neighbour devices
Each controller receiver pairs with upto max 8 remotes.
Also compatible with our universal DIM, CCT, RGB, RGBW and RGB+CCT (Warm-Cool White) RF & Bluetooth devices.
Standard size, 80.5mm x 80.5mm
Compatible with existing EU size frame. For UK integration, check UR-BT-ACD Instructions.pdf for dimensions.
Specifications
General
Part Number: UR-BT-WD
Product Type: Bluetooth/RF Wall Mounted Dimmer
Number of Buttons: 4
IP Rating: IP20
Brand: Uprise
Electrical
Power Supply: 3V (1 x CR2030 battery)
Energy Consumption: Eco, lower energy
Product Data
Protocol: Bluetooth / RF
Transmission Range: 30M
Dimming Range: 0.1%-100%
Transmission Frequency: 2.4GHz
Dimensions
Width: 80.5mm
Height: 14.7mm
Length: 80.5mm
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This Bluetooth / RF wall dimmer controller is compatible with our range of Bluetooth / RF receiver controllers and therefore any 12V, 24V or 36V 2 core single colour LED tape strip or 12V, 24V, 36V LED source such as lamps, battens or marker LEDs. Contact us below for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

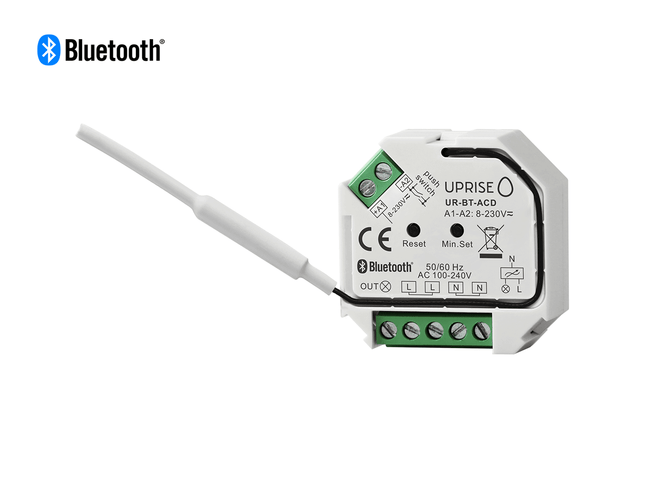

UR-BT-ACD Instructions.pdf--Bluetooth 1CH AC Phase Cut Dimmer Switch Sensor
Download UR-BT-ACD Instructions.pdf for installation support.
Features
AC phase-cut dimmer switch sensor based on RF+Bluetooth Mesh protocols
100-240VAC input with 100-240VAC output
Supports both resistive and capacitive loads
Single channel (1CH – channel), maximum 400W output
Simple screw terminals for input and output, safe and reliable
Available in both a leading edge and trailing edge dimming option. Trailing edge as standard.
Enables to control ON/OFF and Light intensity of connected triac dimmable led light or led driver
Smart App and Remote Control (RF) controllable, gate is not required.
Quick and simply pairing to smart application, just push the reset button
Due to intelligent mesh network, longer control distance is achieved, transmits a signal to neighbouring devices
Achieve a transmission distance of up to 30M between every two neighbour devices
Two-way encrypted communication and quick status feedback, offering safe & reliable data transmission
Also compatible with our universal RF+Bluetooth remote controllers, each LED controller pairs with upto max 8 remotes
Need cloud control? Achieve remote access, seamlessly working with Amazon Alexa and Google Home
Also controllable by a universal 8-230V single input wire push switch
Miniature size, simply install into a standard 86*86mm wall box
Radio Frequency : 2.4GHz
IP Rating: IP20 (Non waterproof, for internal use)
Specifications
General
Part Number: UR-BT-ACD
Product Type: Bluetooth 1CH AC Phase Cut Dimmer Switch Sensor
IP Rating: IP20
Brand: Uprise
Electrical
Input Voltage: 100-240VAC
Output Voltage: 100-240VAC
Output Current: 1.8A max.
Output Power: 400W max. @ 220V
Load Type: Incandescent, Hv-halogen lamps, Dimmable LED lamps
Product Data
Protocol: RF+Bluetooth Mesh
Channels: 1 channel output (Up to 400W)
Transmission Frequency: 2.4GHz
Dimensions
Width: 45mm
Height: 20.3mm
Length: 45.5mm
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

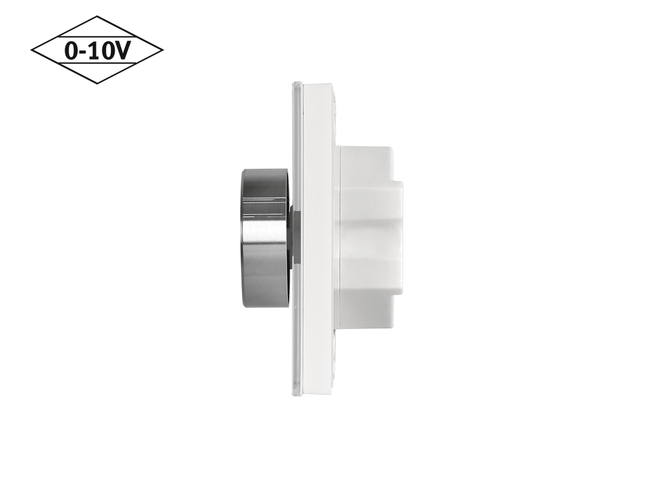

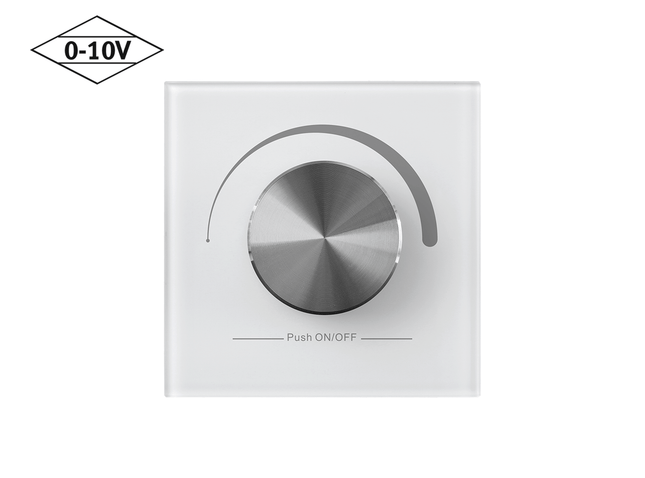

UR-10V-D instructions.pdf --0-10V Wall Mounted Dimmer
Download UR-10V-D instructions.pdf for installation support.
Features
1-10V output signal
White glass interface, also available in black on request
Simple to use design with rotary knob operation
Flicker free on/off lighting functionality. Switch on/off with ease.
Switch on/off lighting slowly without any flickering
0.1%-100% dimming range for seamless light curve
Specifications
General
Part Number: UR-10V-WD
Product Type: 1-10v Wall Mounted Dimmer
IP Rating: IP20
Brand: Uprise
Electrical
Input Voltage: 12V-36V
Operation Voltage: 100-240VAC
Output Current: 1CH, 8A/CH
Output Power: 92-288W
Output Type: Constant Voltage
Product Data
Dimming Range: 0.1%-100%
Dimensions
Width: 20mm
Height: 33mm
Length: 82mm
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This 0-10V wall dimmer controller is compatible with any 12V, 24V or 36V 2 core single colour LED tape strip or 12V, 24V, 36V LED source such as lamps, battens or marker LEDs. Contact us below for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
UR-10V-D instructions.pdf
--
0-10V LED Dimmer (1CH) Constant Voltage
Download UR-10V-D instructions.pdf for installation support.
Features
Miniature style 0-10V LED Dimmer
0-10V LED dimmer that is constant voltage, has 1 channel with an output of 8A per channel. Available in 12V, 24V and 36V.
This analog style dimming driver receives a standard 1-10V dim signal input
A logarithmic dimming range of 0-100% offers a comfortable dimming visual for human eyes.
Single channel 1-10V input with a single channel PWM output
An adjustable LED dimmer offering soft, smooth, flicker free dimming using 256 levels of greyscale
Works well with power repeater allowing practically unlimited expansion
Also compatible with 1-10V dial / push switches / potentiometers
Specifications
General
Part Number: UR-10V-D
Product Type: Single channel (1ch) 0-10V constant voltage LED dimmer
IP Rating: IP20
Brand: Uprise
Electrical
Input Voltage: 12V-36V
Output Current: 1CH, 8A/CH
Output Power: 96-288W
Output Type: Constant Voltage
Product Data
Greyscale: 256 level greyscale
Channels: 1 channel
Flicker: Anti-flicker
Output Data: PWM (Pulse Width Modulation)
Dimming Range: 0%-100%
Dimensions
Width: 33mm
Height: 20mm
Length: 82mm
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This 0-10V LED dimmer is compatible with any 12V, 24V or 36V 2 core single colour LED tape strip or 12V, 24V, 36V LED source such as lamps, battens or marker LEDs. Contact us below for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
UR-ZG-GC Instruction.pdf--ZigBee Kinetic Eco Green Power Switch
Download UR-ZG-GC Instruction.pdf for installation support.
Features
Self sufficient, self powered ZigBee EGP switch, no battery replacement or re-installation costs.
Kinetic energy switch, no wires, no batteries, no worries. Hakuna Matata
2.5 GHz global operation
Ultra adaptable, 1 switch can control 4 styles of light devices: DIM (single colour dimming), CCT (Dual White), RGBW (RGB + White), RGBCW (RGB + CCT)
Transmission range of between 10M and 30M
Super efficient with low energy consumption. Eco green power technology makes it ideal for environmentally friendly commercial fitouts.
Tenacious, ultra long life allows for over 1 million button pushes
Simple, quick pairing to ZigBee lighting compatible devices, no gateway needed
Every light device can be paired to a maximum of 20 EGP switches
UK standard size, compatible with existing frames and adapter switches
Specifications
General
Part Number: UR-ZG-GC
Product Type: ZigBee Kinetic Eco Green Power Switch (Self-reliant)
IP Rating: IP20
Brand: Uprise
Electrical
Power Supply: Kinetic Power (Self click operation)
Input Voltage: 12-24VDC
Output Current: 5CH, 4A/CH
Output Power: 240-480W
Output Type: Constant Voltage
Product Data
Protocol: ZigBee 3.0
Channels: 5 channels
Transmission Frequency: 2.4GHz
Transmission Range: 10-30M
Dimensions
Width: 46.5mm
Height: 16mm
Length: 145mm
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
UR-ACD-2C instruction.pdf--ZigBee 2CH 2-Gang In-Wall Switch Sensor
Download UR-ACD-2C instruction.pdf for installation support.
Features
2-gang in-wall switch incorporating latest ZigBee 3.0 protocol
ZigBee device which includes 2 endpoints, each being separately controllable
Reliable, safe full isolation design
100-240VAC input with 100-240VAC output
2 channels output, with a maximum 1170/CH output for incandescent and HV halogen lamps and 390W/CH for LED lamps
Includes energy metering functionality
Over current protection, offers protection when the connected load is resistive load and total load is over 8.1A.
Resistive loads and capacitive loads are supported, enabling control ON/OFF of connected load
Available in both a leading edge and trailing edge dimming option. Leading edge as standard.
Full universal compatibility with ZigBee coordinator or gateway controller
Fully controllable from your ZigBee gateway interface along with remote controllers that are added to the network and discovered with dimmer
Upto 30 ZigBee remotes that support ZigBee light link via touch link can be controlled maximum
Supports brand new ZigBee eco green power feature. Upto 20 ZigBee eco green power remotes can be discovered and controlled
2 channels are available to be controlled by 2 channels push switch input separately
ZigBee remote find and binding mode supported
Simple screw terminals for input and output, safe and reliable
Miniature size, simply install into a standard 86*86mm wall box
Specifications
General
Part Number: UR-ACD-2C
Product Type: ZigBee Compatible 2CH Dimmer Switch-Sensor
IP Rating: IP20
Brand: Uprise
Electrical
Input Voltage: 100-240VAC
Output Voltage: 100-240VAC
Output Current: 5.1A max. For resistive loads. 1.7A max. For capacitive loads.
Output Power: Resistive load: max. 1170W/CH @ 240V. Capacitive load: max. 390W @ 230V
Load Type: Incandescent, Hv-halogen lamps, Dimmable LED lamps
Product Data
Protocol: ZigBee 3.0
Channels: 2 channels
Transmission Frequency: 2.4GHz
Dimensions
Width: 45mm
Height: 20.3mm
Length: 45.5mm
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
UR-ACD-1C instruction.pdf --ZigBee 1CH AC Phase Cut Dimmer Switch Sensor
Download UR-ACD-1C instruction.pdf for installation support.
Features
AC phase-cut dimmer switch sensor with ZigBee control interface
ZigBee approved and certified
Reliable, safe full isolation design
100-240VAC input with 100-240VAC output
Single channel (1CH - channel), maximum 400W output
Available in both a leading edge and trailing edge dimming option. Leading edge as standard.
Full universal compatibility with ZigBee coordinator or gateway controller
Fully controllable from your ZigBee gateway interface along with remote controllers that are added to the network and discovered with dimmer
Upto 30 ZigBee remotes that support ZigBee light link via touch link can be controlled maximum
Supports brand new ZigBee eco green power feature. Upto 20 ZigBee eco green power remotes can be discovered and controlled.
New innovation with minimum brightness setting function
Dim beautifully and switch single colour dimmable LED lamps, flexible LED tape lights along with traditional incandescent and halogen lights.
Simple screw terminals for input and output, safe and reliable
Miniature size, simply install into a standard 86*86mm wall box
Specifications
General
Part Number: UR-ACD-1C
Product Type: ZigBee Compatible 1CH Dimmer Switch-Sensor
IP Rating: IP20
Brand: Uprise
Electrical
Input Voltage: 100-240VAC
Output Voltage: 100-240VAC
Output Current: 1.5A max.
Output Power: 400W max. @ 220V
Load Type: Incandescent, Hv-halogen lamps, Dimmable LED lamps
Allowed Inrush Current: Cold Start 75A max.
Product Data
Protocol: ZigBee 3.0
Channels: 1 channel output (Up to 400W)
Transmission Frequency: 2.4GHz
Dimensions
Width: 45mm
Height: 20.3mm
Length: 45.5mm
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
UR-ZGR Instruction.pdf--ZigBee RGBCW (RGB + CCT + DIM) LED Remote
Download UR-ZGR Instruction.pdf for installation support.
Features
ZigBee 3.0 compatible RGBCW (RGB + CCT + DIM) remote
Instant touch reactive colour wheel that offers fast, precise colour selection and control
Efficient battery powered remote with low energy consumption
Pair ZigBee lighting devices via TouchLink commissioning
Supports easy finding and binding mode with ZigBee compatible devices
Establish 3 separate groups for binding max. Plus 30 lighting devices.
6 stunning preset scenes, save and recall 5 scenes.
2.4 GHz global operation
A transmission range of upto 30m
ZigBee Gateway product universally compatible
Bind and control universal single colour DIM, dual white (CCT), RGBCW (RGB + CCT), RGBW and RGB ZigBee lighting devices.
Specifications
General
Part Number: UR-ZGR
Product Type: ZigBee Compatible LED Remote Controller (Handset)
IP Rating: IP20
Brand: Uprise
Product Data
Protocol: ZigBee 3.0
Operation Voltage: 3V(2*AAA battery)
Transmission Frequency: 2.4GHz
Transmission Range (free field): 30m
Dimming Range: 0.1%-100%
Dimensions
Width: 44mm
Height: 17mm
Length: 140mm
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
UR-ZG-5C4 instructions.pdf--ZigBee 5CH LED Controller Receiver For RGBCW (12V-48V)
Download UR-ZG-5C4 instructions.pdf for installation support.
Features
DIM, Smart Dual-White (CCT), RGBCW (RGB+CCT) 4 in 1 constant voltage LED controller. 4A per channel, 5 channels output.
ZigBee 3.0 compatible
Control single colour, tuneable white (CCT), RGB, RGBW, RGBCW and RGB+CCT LED lighting
Simply set dip switches to allow for different lighting types to be selected
ZigBee Mesh Network accessible
Supports pairing of ZigBee remote directly via TouchLink commissioning.
Upto 30 ZigBee remotes that are supported by zigbee light link via touchlink can be controlled.
Supports brand new ZigBee eco green power feature. Can be binded and controlled by upto a maximum of 20 ZigBee eco green power remotes.
Universal ZigBee Gateway/Coordinator compatibility.
RGB+CCT ZigBee remote control compatibility.
Specifications
General
Part Number: UR-ZG-5C4
Product Type: ZigBee Compatible 5CH LED Controller / Receiver
IP Rating: IP20
Brand: Uprise
Electrical
Input Voltage: 12-48VDC
Output Current: 5CH, 8A/CH @ 12V/24V, 6A/CH @ 36V, 4A/CH @ 48V
Output Power: Max. 480W @ 12V, Max. 960W @ 24V, Max. 1080W @ 36V, Max. 960W @ 48V
Output type: Constant Voltage
Dimensions
Width: 59mm
Height: 29mm
Length: 170mm
Installation
Mounting: x2 Screws
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
UR-ZG-5C2 instruction.pdf
--
ZigBee 5CH LED Controller Receiver For RGBCW (12V-24V) Download UR-ZG-5C2 instruction.pdf for installation support.
Features
DIM, Smart Dual-White (CCT), RGBCW (RGB+CCT) 4 in 1 constant voltage LED controller. 4A per channel, 5 channels output.
ZigBee 3.0 compatible
Control single colour, tuneable white (CCT), RGB, RGBW, RGBCW and RGB+CCT LED lighting
Simply set dip switches to allow for different lighting types to be selected
ZigBee Mesh Network accessible
Supports pairing of ZigBee remote directly via TouchLink commissioning.
Upto 30 ZigBee remotes that are supported by zigbee light link via touchlink can be controlled.
Supports brand new ZigBee eco green power feature. Can be binded and controlled by upto a maximum of 20 ZigBee eco green power remotes.
Universal ZigBee Gateway/Coordinator compatibility.
RGB+CCT ZigBee remote control compatibility.
Specifications
General
Part Number: UR-ZG-5C2
Product Type: ZigBee Compatible 5CH LED Controller / Receiver
IP Rating: IP20
Brand: Uprise
Electrical
Input Voltage: 12-24VDC
Output Current: 5CH, 4A/CH
Output Power: 240-480W
Output type: Constant Voltage
Dimensions
Width: 46.5mm
Height: 16mm
Length: 145mm
Installation
Mounting: x2 Screws
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
