High Definition RGB COB LED Tape. Colour Completed.
This RGB "no dot" LED strip light provides a seamless LED light line that can be colour changed. Ideal for undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.Looking a continuous light line with extra dedicated white? Check out our RGBW No Dot LED strip light.
*Priced per meter, typically supplied as 5M reel with 2000mm 5 core flat cable as standard. Can be cut to length. Contact us for made to measure seamless RGB LED solution. Comes with an IP65 heat shrink protective coating as standard.
At 14-watt per meter, this RGB COB LED strip is slim, flexible, offering excellent brightness and colour output. Utilising the latest in flip chip COB technology with a long expected life of 50K hours.
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGB colour changing (4 wire) LED Strip Light
Colour Temperatures
This strip offers full RGB colour changing for millions of colour combination. When all on you can also generate a nice white which can be toned and adjusted.
Colour Rendering Index (CRI)
This versatile "no dotting" LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 650lm/m (RGB all on).
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 5M increments with a 2000mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in IP65 (splashproof) or IP20 (internal) at 10mm.
IP Rating Options
This bright LED tape is available in the IP65 (splashproof) or IP20 (internal) versions. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGB LED Tape
Colour: RGB colour mixing (white achieved with 100% all on)
IP Rating: IP65 / IP20
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 768 LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 650Lm/m (RGB all on)
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 14W
Input Voltage: 24V
Current (A): N/A
Cable in: 2000mm 2 core (as standard)
Cable out: 0mm as standard
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard), can be cut to size.
Installation
Cut points: 50mm
Cable: 4 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
HD RGBW COB LED Tape. Light completion.
*Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure seamless "no dot" (when placed within any aluminium channel / LED profile) RGBW LED strip light solution.
Create a colour changing light line that's seamless on the eye. Ideal for undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
Wiring Diagram & Best Practises
[PDF] Branded - How to install 24V RGBW COB LED Tape Lights - 2 x 4M Lengths (840LED/M RGBW No Dot 24V)
[PDF] Unbranded - How to install 24V RGBW COB LED Tape Lights - 2 x 4M Lengths (840LED/M RGBW No Dot 24V)
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Vienna No Dot RGBW Kits - It's Seamless Lighting Made Simple
6M 840LED No Dot RGBW 3000K COB LED Tape Kit With Wireless Handset
This 20-watt per meter RGBW COB LED strip is slim, flexible, offering excellent brightness and colour output. Utilising the latest in flip chip COB technology with a long expected life of 50K hours.
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGBW colour changing (5 wire) LED Strip LightSolder Cable to RGBW colour changing (5 wire) LED Strip Light
Colour Temperatures
This strip offers a dedicated 3000K warm white / 4000K neutral white / 6000K cool white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "no dot" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+4000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 840LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K)
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 20W (19.2 actual)
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 33.3mm
Cable: 5 core flat cable (20 AWG)
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Update 13-10-22: Wattage changed from 18-watt per meter to 20-watts per meter (19.2W/m actual) to build in tolerances based on new information.- Stephen Watts
A Super thin IP65 (splash proof) 5W COB LED strip light that creates a continuous, seamless light line result. Ideal for bathrooms, kitchens, bars or exterior areas where splash resistance is required. Available in 2700K warmer, 3000K warm, 3500K soft, 4000K neutral, 5000K cool and 6500K cooler light temperatures.
Support Videos
What are the different colour temperatures available for this 4mm COB LED strip light?Do you offer single / double door cabinet sensors for wardrobes, how do they work?Seamless Lighting Simplifed - Uprise Company Overview Video[VIDEO] How can I extend the cable easily between COB LED strips?[Y] ep1 - Best way to connect a 5M 4mm COB LED strip to driver (24V)
Product Datasheets
480LED_M_4mm_5W_M_COB_LED_Tape_2700K_IP65_HS_24V_DATASHEET480LED_M_4mm_5W_M_COB_LED_Tape_3000K_IP65_HS_24V_DATASHEET480LED_M_4mm_5W_M_COB_LED_Tape_3500K_IP65_HS_24V_DATASHEET480LED_M_4mm_5W_M_COB_LED_Tape_4000K_IP65_HS_24V_DATASHEET480LED_M_4mm_5W_M_COB_LED_Tape_5000K_IP65_HS_24V_DATASHEET480LED_M_4mm_5W_M_COB_LED_Tape_6500K_IP65_HS_24V_DATASHEET
Compatible Products (LED Solution)
POWERUP Furniture LED Drivers
60W constant voltage furniture LED driver (24V) > 6CH single colour wifi connectable controller receiver (12V-24V)
Cabinet LED Drivers
36W 5 output cabinet LED driver (24V) with 2M mains lead
60W 7 output cabinet LED driver (24V) with mains lead
24W 5 output cabinet LED driver (24V) with mains lead
Cabinet LED Sensors
Furniture LED sensors for cabinets, drawers, walk in wardrobes
Extension Cables
2M / 3M / 4M / 5M male-female 2 core flat LED extension cables
How to connect COB LED tape lights simply.
Super narrow 4mm COB LED tape. No-Dot lighting made easy.
This 5-watt COB LED strip is a continuous LED lighting source that is ultra narrow and very flexible, making it excellent for a variety of applications. This high lumen LED tape, which uses branded COB LEDs and is manufactured to a high quality standard, produces up to 573.9 (6000K) lumens per meter, while consuming only 5 watts per meter. A normal life expectancy is 50,000 hours of continuous use.
24V COB LED Strip Wiring Scenarios
1) Plug & Play Furniture System (on/off): UK Mains > 2M UK plug to C7 mains lead > 24V 24W Furniture Cabinet Light Driver > 24V COB LED strip light
2) Plug & Play Furniture System w/sensor: UK Mains > 2M UK plug to C7 mains lead > 24W / 60W Furniture LED Driver (24V) > Furniture Sensors > 24V COB LED strip light
3) Plug & Play Multi-Port (6) Wifi/Remote Furniture Light System: UK Mains > 2M UK plug to C7 mains lead > 60W Furniture LED Driver (24V) > Single Channel Wifi Connectable Controller Receiver > 24V COB LED strip light < Single Colour Remote Handset / Smart Device Control.
Articles
The Definitive Guide to COB LED Strip Lights
Colour Temperatures
Uprise has a wide range of LED strip lights to accommodate your needs, from roasting deep warm whites to cool white shades. We offer a standard range of kelvin temperatures that match to 2700K, 3000K, 4000K, and 6000K. Do you have a colour in mind? Any bespoke manufacturing requirements you may have can be discussed with us.
Colour Rendering Index (CRI)
This flexible LED tape light is available in CRI>90.
Brightness (Lumen Output)
This luminous LED ribbon produces 481.05lm/m (2700K), 512.8lm/m (3000K), 550.75lm/m (4000K), and 573.9lm/m (6000K) typically.
Light Diffusion
When illuminating any surface, our COB LED tape lights provide a seamless linear effect as standard. Our LED tape strips can be used in combination with our extruded aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise's 5-watt COB LED tape light, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 50mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Application

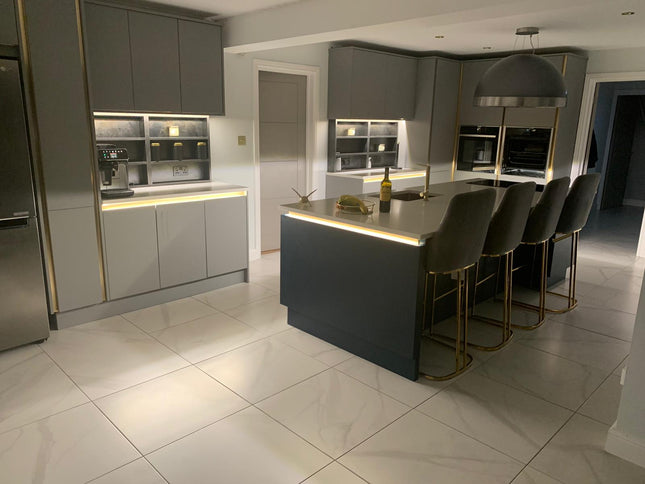

This ultra narrow COB LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is only 4mm wide and IP65 (splash proof) rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with a IP65 rating are ideal for applications where the potential for liquid ingress is present.
IP Rating Options
This LED strip is available in IP65 (splash proof). Feel free to WhatsApp us on 07957 180 481 or email us via sales@upriseled.com to talk to an expert. We'll assist you to choose the right strip to apply.
Environments
This strip light offers bright lighting for commercial applications, which is suitable for luxury resorts, restaurants, bars, hotel lobby areas as well as retail environments and window displays. When in need of a super narrow, bright, long lasting LED strip, this product is ideal for architects, lighting designers, AV integrators, electrical contractors and trade professionals alike.
It is perfectly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip.
Specifications
General
Product Type: Seamless COB LED Tape
Colour: 2700K / 3000K / 4000K / 6000K
IP Rating: IP65 (Splash Proof)
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 480LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 481.05Lm/m (2700K), 573.90Lm/m (6000K)
Lumens/w: 96.21Lm/w (2700K), 114.78Lm/m (6000K)
CRI: >90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 5W
Input Voltage: 24V
Current (A): 0.21A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 4mm
Height: 2mm
Length: 5m (as standard)
Installation

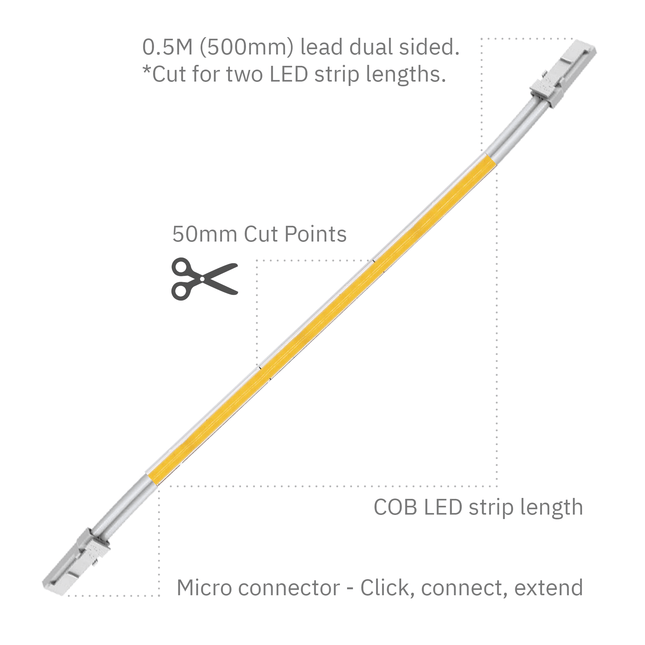

Cut points: 50mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this 4mm cob led tape strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 4mm and will fit into all LED profiles with an inside width of 4mm and above.
How can I buy?
You either buy individual components online or call / WhatsApp us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
