A simple to setup wireless 5 channel LED controller-receiver. It works with every type of 12V / 24V LED tape light or LED light source.This product is also compatible with a 5CH remote handset, touch wall panel controller and smart phone app (Tuya). To control from a smart device simply download the Tuya app, connect your RGBTW LED tape lights and create a colourful dream scene for your space.Complete with 5 year warranty for solution peace of mind.
WT5 Manual.pdf
--

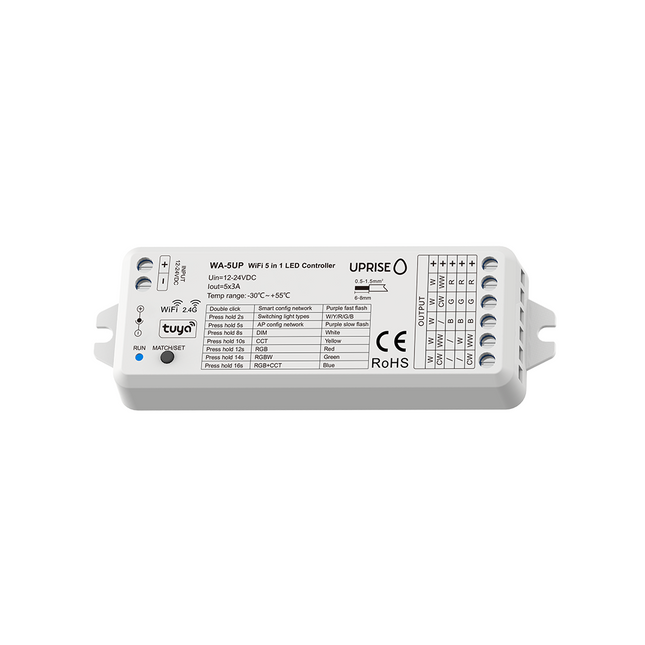

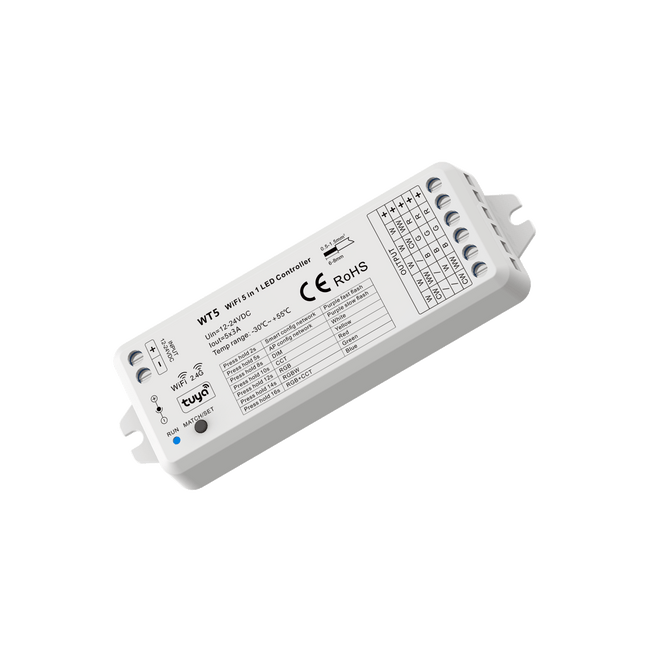

Smart Wifi 5-Channel CCT & RGBTW LED Strip Controller (12V-24V)
Features
Alexa and Google Assistant Compatible
Control via Smart Device via Tuya App
DIM, Smart Dual-White (CCT), RGBCW (RGB+CCT) 4 in 1 constant voltage LED controller. 4A per channel, 5 channels output.
Download Tuya Smart application and control from mobile wirelessly
Voice command control via Tuya app.
Control single colour, tuneable white (CCT), RGB, RGBW, RGBCW and RGB+CCT LED lighting
WiFi and 2.4GHz Compatibility
Setup
Compatible with Tuya application for simple wireless control via mobile or tablet device. Download for installation support.
Specifications
General
Part Number: UP-WT5
Product Type: Wifi 5CH LED Controller / Receiver
IP Rating: IP20
Brand: Uprise
Input & Output
Input Voltage: 12-24VDC
Input Current: 15.5A
Output Voltage: 5 x (12-24)VDC
Output Current: 5CH,3A/CH
Output Power: 5 x (36-72)W
Output type: Constant Voltage
Dimming Data
Input Signal: Tuya APP + RF 2.4GHz
Control distance: 30m(Barrier-free space)
Dimming Grayscale: 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 1000Hz (default)
Dimming Data
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4
Safety standard(LVD): EN 62368-1:2020+A11:2020
Radio Equipment(RED): ETSI EN 300 328 V2.2.2
Certification: CE,EMC,LVD,RED
Environment
Operation temperature: Ta: -30 O C ~ +55 O C
Case temperature (Max.): T c:+85 O C
IP rating: IP20
Warranty & Protection
Warranty: 5 Years
Protection: Reverse polarity Over-heat Short circuit
Mobile Application
Required Application: Tuya Smart App
Dimensions
Width: 38mm
Height: 20mm
Length: 114mm
Installation
Mounting: x2 Screws
Packaging
Packaging: White cardboard box
Net Weight: 65g
System Parameters
The max power is 15A, the controller can support around (12*15=180W or 24*15=360W)
Generally speaking, our controller is suitable for up to 10m led strip per controller without brightness degradation. If you connect up to 20m to 25m, the brightness will be affected unless strip is powered at both ends.
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V/24V single colour, RGB, RGBW LED tape lights or RGBTW LED strips including our latest generation No Dot RGBW LED strip light. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

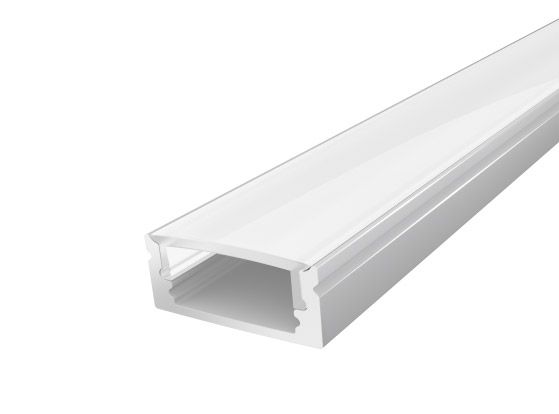

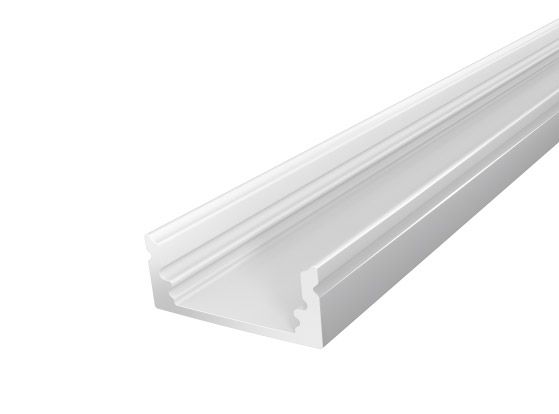

Wide surface mounted aluminium extrusion compatible with LED strip lights that are 20mm wide.
The profile is completed with end caps and fix clips, which are made out of plastics. In addition, there is a professional Semi-Clear Diffuser.
The size is 22mm wide, 9mm high. The internal width is 20mm. This aluminium LED channel comes in 1M or 2M lengths as standard. Constructed with 6063 T5 Aircraft Aluminum.
Silver finish that provides a professional look.
If you would like a custom length please get in touch via whatsapp 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Wide Surface
Compatible with: Suitable for LED tape width: 20mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Plastic
Finish: Silver
PC Cover: Semi Diffused
Width: 22mm
Internal Width: 20mm
Height: 9mm
Length: 1M / 2M
Bespoke Lengths: Contact to discuss
1 meter package size: 102X13X17CM
2 meter package size: 202 X 13 X 17CM
G.W (Per meter): 0.16KG
Warranty: 5 Year Warranty
A 2M (2000mm) extension cable with plug and play *input micro connector that works with our cabinet LED driver range.
Features & Benefits
1x input cable with male micro connector one end and bare wires the other end.
Smaller sleeker design than other 2M cables for a tidier fitout.
We supply various LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
Plugs into multi-output style cabinet LED driver system. Ideal for DIY or professional kitchen, walk-wardrobes, cabinet or shelving installations.
This is a high-quality LED profile designed for recessed applications. It comes with a set of aluminium profile, plastic end caps and metal fix clips.
This LED channel comes complete with a professional diffuser that is available in transparent (clear), diffused (Semi Frosted) or milky (Opal).
The cutout hole size is 15.2mm wide, 5.9mm high, 22mm (outer flange width). Standard lengths are available in 1M and 2M. Available cut lengths also include 0.5M/1.5M/2.5M/3M. Constructed with durable, premium quality 6063-T5 Aircraft Aluminum.
If you would like a custom length please get in touch on 0116 406 2959 or email us at sales@uprisemed.com
Specifications
Product type: Slim Recessed
Compatible with: Suitable for LED tape width:<11mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal
Finish: Silver/Black/White
PC Cover: Transparent/Diffused/Milk optional
Cutout Hole: 15.2mm
Width: 15.2mm
Outer Flange Width: 22mm
Internal Width: 11.2mm
Height: 5.9mm
Length: 1M/2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
1 meter package size: 100PCS/Carton,102X13X17CM
2 meter package size: 100PCS/Carton, 202X13X17CM
G.W (Per meter): 0.12kg
Warranty: 5 Year Warranty

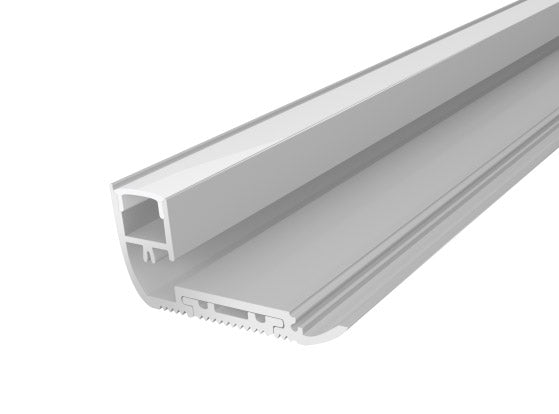

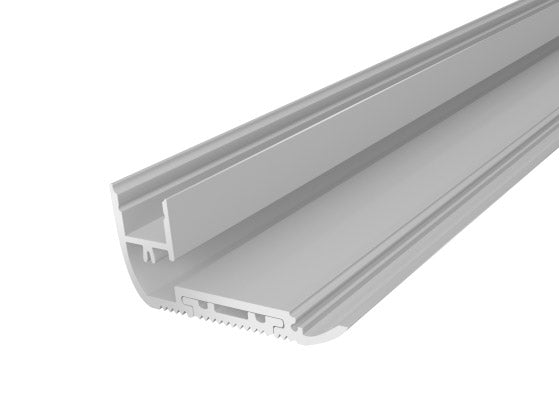

A silver staircase aluminium profile for LED strip lighting. Compatible with LED strip lights that are 13mm wide or less.
It includes fix clips and metal end caps for a complete aluminium channel installation. For a regulated heat dissipation, it's supplied with a professional Semi Clear Diffuser.
It comes with 65mm width and 27.5mm height. This LED aluminium stair nosing profiles comes with in either a 1M or 2M standard length. Constructed with 6063 T5 Aircraft Aluminum.
For bespoke lengths please contact via sales@upriseled.com or phone, text or whatsapp with projects on 07957 180 481.
Specifications
Product type: Stair Nosing
Compatible with: Suitable for LED tape width :<13mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Metal
Finish: Silver
PC Cover: Semi Diffused
Width: 65mm
Internal Width: 13.3mm
Height: 27.5mm
Length: 2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
Warranty: 5 Year Warranty

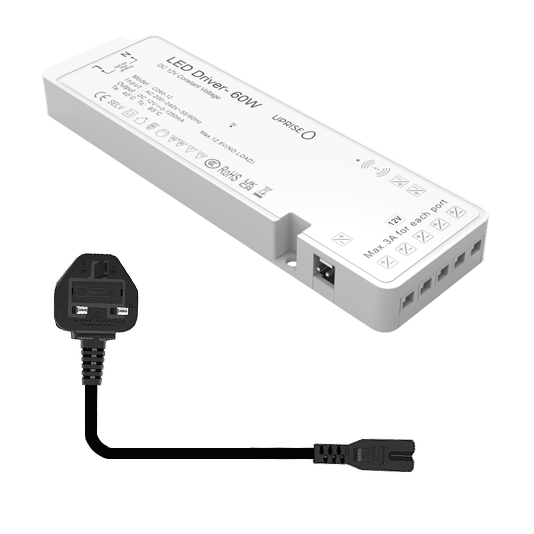

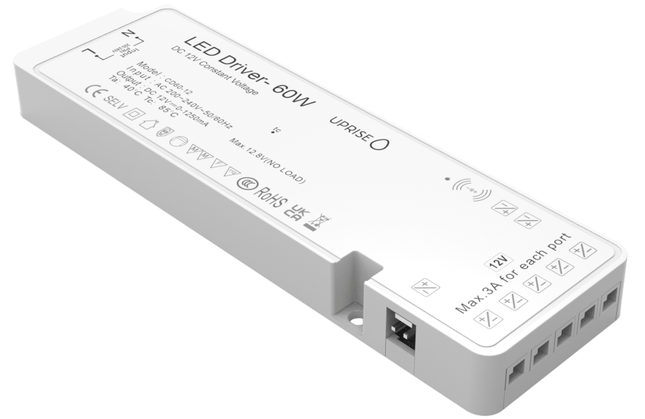

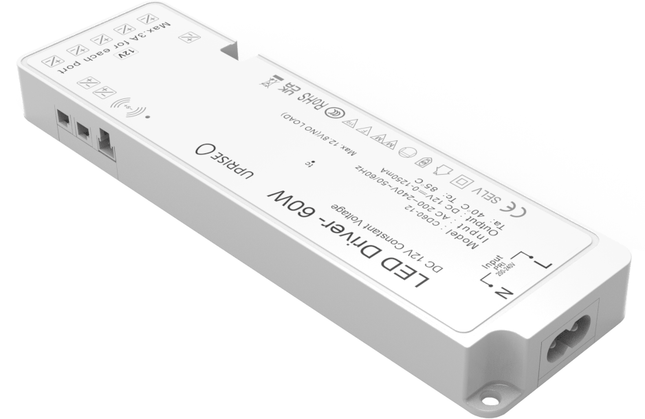

POWERUP 60W Constant Voltage Furniture LED Driver (24V)
Note: This 60W plug and play furnture LED driver includes a 6 way distributor (6 LED ports) with 1M lead (connected via attached green block connector) and a 2M UK to C7 mains lead.
12V / 24V 60W Cabinet LED Driver User Manual
PWR-UP-60_USER_MANUAL
Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Compatible system products
6 Way Controller Receiver: 6CH Single Colour Wifi Connectable Controller Receiver (12V-24V)
Outputs
Single output
6 LED outputs when 6 Way Distributor Splitter with 1M lead is connected
Features
100-240VAT Input
Single channel (1) constant voltage output, Maximum total output 60W
Ultra slimline design, light weight and high efficiency
Over-load / Short circuit protection
Suited for indoor (internal) LED lighting applications
5 Year, 50,000 hour warranty as standard
Applications
Cabinets, Shelves, Walkin-wardrobes, Integrated Light lines, Undercabinet Lighting
Coving, Architectural features,
Residential - Kitchens, Bedrooms, Conservatories, Home AV, Media Units,
Commercial - Retail, window displays, Hotel, lobbies, conference rooms,
Connectable Accessories

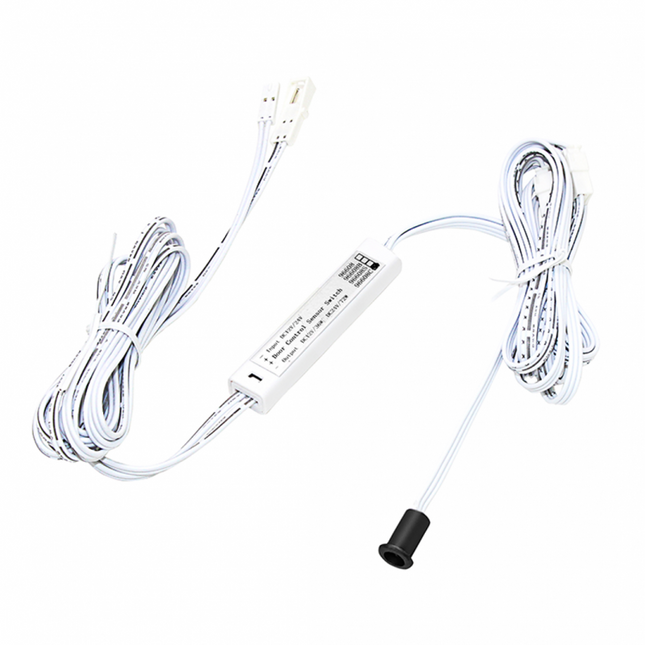

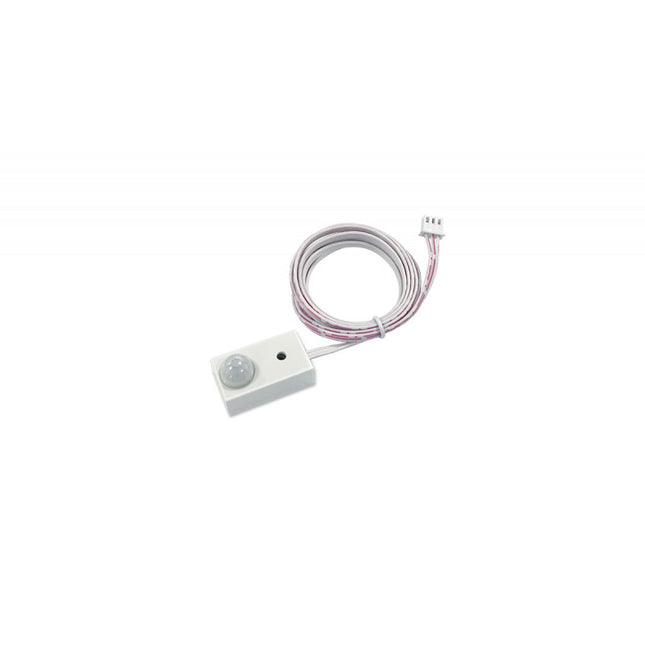

Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18mm depth for hidden installation. 164mm x 55mm x 18mm
Wiring
Mains > UK Mains Plug to C7 connector > PWR-UP-60-24
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V COB LED strip lights, marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (54W) to build in a safety buffer.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create an easy, fast setup for any environment. Just click and connect this plug and play system to create stunning, continuous LED light aesthetics.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Specifications
General
Product Type: Constant voltage furniture LED driver
IP Rating: IP20
Brand: POWERUP
Electrical
Power Range: 18W-60W
Input Voltage: 200-240V
Output Voltage: 24V +/- 5%
AC Input Current: 0.36A
Wattage: 60W
Voltage: 24V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch / Wood Sensor (Hidden sensor)
Dimensions
Width: 55mm
Height: 18mm
Length: 164mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Plug & Play LED Strip Kit | 4mm Seamless LED Strips | 36W 5 Output Undercabinet LED Driver 24V | 5 x 2M Extension Cables
What you will receive within this seamless COB LED strip kit:
Seamless LED Strips: 3 x 2.4M (7.2M total length) 4mm Seamless "No Dotting" 5W/M flexible LED strip lights with 0.5M tails both ends. 24V. (Can be cut into x6 individual length LED strips, x5 for setup, x1 spare). Available in 3000K warm, 3500K soft, 4000K neutral.
480LED/M 5W/M 3000K Warm White COB LED Tape - Datasheet480LED/M 5W/M 3500K Soft White COB LED Tape - Datasheet480LED/M 5W/M 4000K Neutral White COB LED Tape - Datasheet
Note: Each 2.4M LED strip can be cut every 25mm, so you could cut at the 600mm point (on the black line) and have a 0.6M and 1.8M LED strip. Or in half for 2 x 1.2M LED strips. Or at any measurement to make two LED strips. The strips could then be cut down further to desired fit size.Extension Cables: 5 x 2M male to female extension cables (allows for 2.5M of extension from driver, 0.5M from LED strips + 2M from extension cable).Cabinet LED Driver: 1 x 36W plug & play cabinet LED driver (24V). Mains Lead: 1 x 1000mm black (1M) UK mains to C7 mains lead.Extension Cables
Wiring Setup: [UK mains socket] > UK to C7 Mains Lead > 36W Cabinet Driver > (optional) extension cable > Upto x5 LED strips
36W Cabinet LED Driver DetailsThis 5 output, slimline undercabinet led lighting driver by Uprise offers quick and simple setup for single colour spot lights, furniture lights & LED tape lights. Ideal for areas where space is limited and a thin 24V LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 24V LED products / LED strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Support Videos*BrightnessHow bright and adaptable is this 4mm 5W LED Strip?*Colour Temperature3000K Warm White Colour Temperature (Within micro corner profile)3500K (New Colour) Soft White Light Colour (Within micro quadrant profile)4000K Neutral White Light Source Colour (Inside corner extrusion)*CablingHow can I extend the cable easily between COB LED strips?
36W Cabinet LED Driver Specifications
Driver Outputs
With 5 micro connectable outputs you can easily run 5 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This under-cabinet kitchen LED driver is rated at 36W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 147mm x 56mm x 18mm
Wiring
5 way distributor outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 36W - 10% (32.4W) to build in a safety buffer.
Application
A thin and functional multi-port LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 56mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 24V 24W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 5 output cabinet LED driver (5 way distributor ports built in)
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 32W-36W
Input Voltage: 200-240V
Output Voltage: 24V +/- 5%
AC Input Current: 0.36A
3A Port: 5
Outputs: x5 micro connectors (5-port micro plug connector)
Wattage: 36W
Voltage: 24V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 56mm
Height: 18mm
Length: 147mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call / WhatsApp us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A large square aluminium extrusion profile for LED strip lighting. Compatible with LED strip lights that are up to 30mm wide. Available in black and silver.
Supplied with end caps and fix clips, which are made out of plastics. The LED profile is completed with a professional Semi Clear Diffuser.
The size is 40mm wide and 40mm high. The internal width is 31mm. The length of the LED aluminium is available in 1M and 2M lengths. The construction is based on 6063 T5 Aircraft Aluminium, which makes it tough and fit for purpose.
Aluminium extrusion finished in black / silver.
If you would like a custom length please get in touch via phone, text or WhatsApp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Square
Compatible with: Suitable for LED tape width:<31mm
Material: 6063 T5 Aircraft Aluminium
End Caps: Plastic
Fix Clips: Plastic
Finish: Black / Silver
PC Cover: Semi Diffused
Width: 40mm
Internal Width: 30mm
Height: 40mm
Length: 1M / 2M as standard
Bespoke Cut Lengths: Contact us to discuss.
Warranty: 5 Year Warranty
A non-rewireable, fully encased moulded power lead.
Mains/battery powered equipment connection lead
Plug has integral 3A fuse
Manufactured from 0.5mm² approved, 2-core cable
Rated 240V, 3A
Connector to Connector: Mains Plug, UK to IEC 60320 C7
Connector Type A: Mains Plug, UK
Connector Type B: IEC 60320 C7 (Figure 8)
Current Rating: 3A
Cable Length - Metric: 0.5m
Voltage Rating: 240VAC
Jacket Colour: Black
Cable Length - Imperial: 1.64ft
EU / US plugs available on request.
A fun and adventurous LED lighting solution for everyone. Our dot free COB LED strip light kits are easy to setup, simply click, click, play. The result is a slim, seamless light line that's ideal for many types of applications. An excellent choice for the home and commercial usage. Mount freestanding or place within LED profile for an absolutely seamless "no dot" impression.
Support Videos
Seamless Lighting Simplifed - Uprise Company Overview Video
[Y] ep1 - Best way to connect a 5M 4mm COB LED strip to driver (24V)
--
No Dot 12V COB LED Tape Kits With Driver, 0.5M long QuickClick Cables with micro connectors.
Kit Includes
x1 2.5M (2500mm) LED strips with 0.5M (500mm) tails and micro connector ends (For fast connection). Packed on a reel.

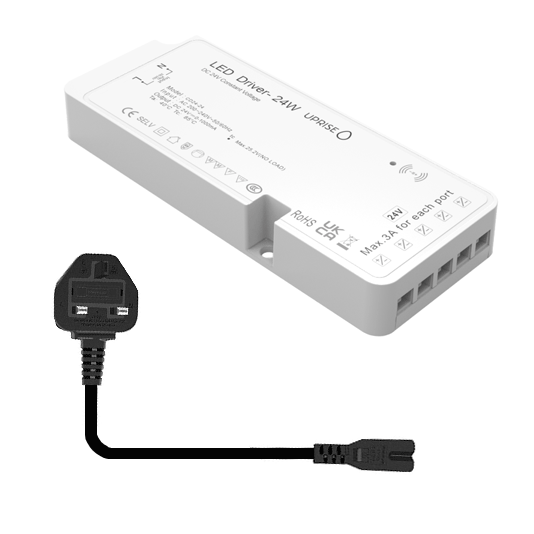

x1 24W 12V plug and play cabinet style LED driver (Quick Connect)
x1 2M mains plugs with C7 type connector (plugs directly into cabinet LED driver).
Wiring Setup
Mains > 2M UK to C7 Mains Lead > 24W Driver (12V) > COB LED strip (12V)
Application Ideas

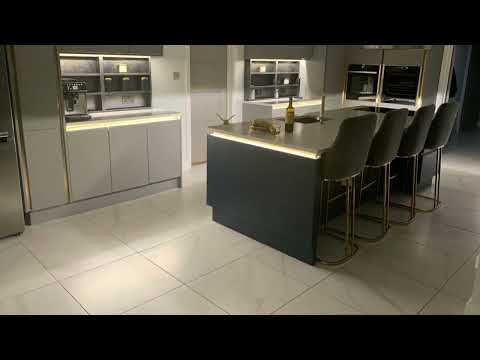

Domestic: Kitchens, Coves, Cabinets, Work tops, Under Cabinets, Drawers, Home Offices, Media Walls, Plaster-in light lines, TV surrounds, Vanity Mirrors,
Commercial: Window Displays, Retail Environments, Hotel Lobbies, Conference Rooms, Stage Sets, Shelving, Cove Lighting.
[Video] Support
How to connect COB LED tape lights simply.
Specifications
COB LED Tape
Product Type: Seamless No Dot LED Tape (7W)
Colour Options: Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 900lm/m
Lumens/w: 80-120lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 7W
LED Wattage (Per 2.5M run): 17.5W
Input Voltage: 12v DC
Current (A): 0.75A/m
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
COB LED Strip Dimensions
Width: 5mm
Height: 2mm
Lengths: 2.5M COB LED strip light. Can be cut to any length at 25mm cut points.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years typical (1 year modified back to base warranty on modified strip lengths)
Packaging
Packaging: 1 x 2.5M Roll as standard.
Net Weight: 152g/Roll
*Please Note: No more than 2.5 metres of 5mm 7W/M COB LED tape should be connected to a single port. Any length over 3M will suffer from voltage drop (a trail off of brightness towards the end of strip). For uniformity of light power from both ends, 3M+. Speak to one of our expert advisors today via sales@upriseled.com
Article - The Definitive Guide to COB LED Strip Lights
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can I cut this COB LED strip to length?
Yes, it can be cut easily at every 25mm indicated cut point. Alternatively we can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
How do I connect an extension cable to the LED tape?
This LED tape kit comes with 10mm wide LED tape to 2 core cable connectors. Simply push the ends of tape into one side of the connector and the 2 core cable into the other. Once both are firmly in place clamp down the metal connection spokes with a pair of plyers. This results in a secure circuit. It's important to ensure the polarity of the + / - are correctly orientated, please check this.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help you get a finished result that lasts.
A white cob led tape light that offers seamless "dot free" light throughout the strip. This provides a spot free "no dotting" impression when placed within a groove, channel or aluminium LED profile. Just 9W per meter with a 2700K / 3000K / 4000K / 6000K temperature, it's ideal for kitchen features, pull-out drawers, countertop grooves, media units, cabinets or shelves and bedrooms and bathrooms.
Here's what customers have to say
--
"Spot Free" COB LED Tape 9W/M IP65 (Splash Proof)
*Priced per length. Commercial grade quality with the latest in integrated LED technology. Ideal for both commercial and domestic applications.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise LED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 9W/M offering excellent efficiency and upto a respectable 525 lumens per meter output (6K cool). 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 9mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade San'an LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless Dot Free LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP65 Heat Shrink (splash proof)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 525lm/m
Lumens/w: 105lm/W
High CRI: 90+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W (based on 5M run length).
Input Voltage: 12v DC
Current (A): 0.75A/m*5M Length Supply
Cable in: 500mm 2 core with micro connector (as standard)
Cable out: 500mm 2 core with micro connector (as standard)*Custom Length Supply
Cable in: 500mm 2 core with micro connector (as standard)
Cable out: N/A
Dimensions
Width: 9mm
Height: 2mm
Length: 5m (as standard) / Selected length.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years (back to base)Note: any custom made strip defaults to a 1 year warranty (back to base).
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 9mm and will fit into all LED profiles with an inside width of 9mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
This black finished double door sensor offers simple on/off illumination when dual cabinet doors are opened and shut. Complete with two individual sensors for individual door sensing.
--
*In Stock UK - 12V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Black)
12V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Individual output dimming)
This double sensor switch consists of two inductive sensors which are can be switched on or off, without the need for a physical switch. It connects directly to an individual output of our 12V Cabinet LED driver range. Rated for either 12V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications
What is the operation of this 12V DC double sensor switch for cabinet/wardrobe doors?
The operation is simple, each sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number: DDS-2C-B
Product Type: 12V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Connection
Sensors: x2 Black Micro Sensors
Head Cable Distance: 1.5M - 3 Pin Connector > 110mm 3 core flat cable > Central Processor > x1 500mm Male Connector / x1 500mm Female Connector
Product Type: 12V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Electrical
Voltage: 12V DC
Max Output Current: 5A
Maximum Power: 60W (12V)
Design
Material: PVC plastic
Finish: Black
Dimensions
Outer Flange: Ø 12 mm
Cutout: Ø 10-11 mm
Depth: 11mm
Installation
Mounting: Surface mount, x2 screws for sensor holders. Slip in/out. Or cutout hole mount.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: Plastic bag
Net Weight: 90
UHD RGBW COB LED Tape. Redefining light.
The best "No Dot" RGBW LED tape on the market, it's lighting redefined. *Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure colour changing spot free light lines (when placed within any aluminium channel / LED profile) RGBW LED strip light solution.Create an ultra high definition "tron" style neon LED light line. Perfect for the tech enthusiast wanting to showcase state of the art kitchen cabinets, work tops and furnishings. The ideal complement to trending Anthracite style designs in cuboard, cabinets or walk-in wardrobes.
Wiring Diagram & Best Practises
Works well with

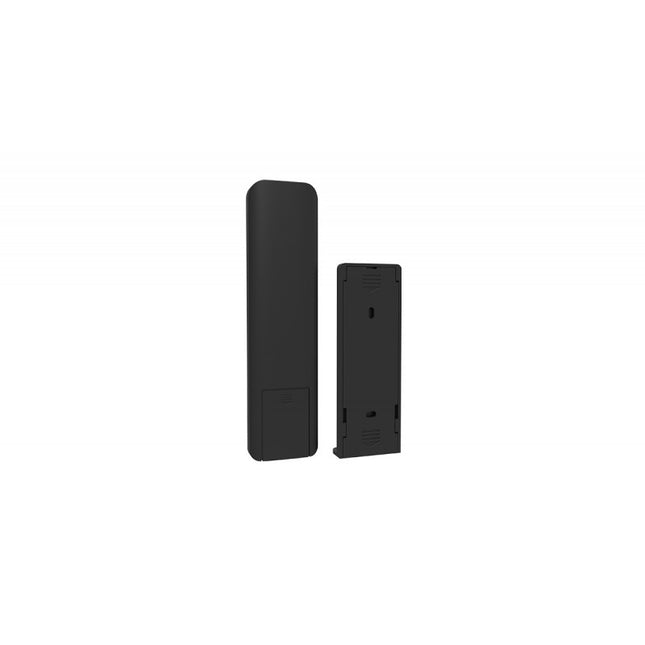

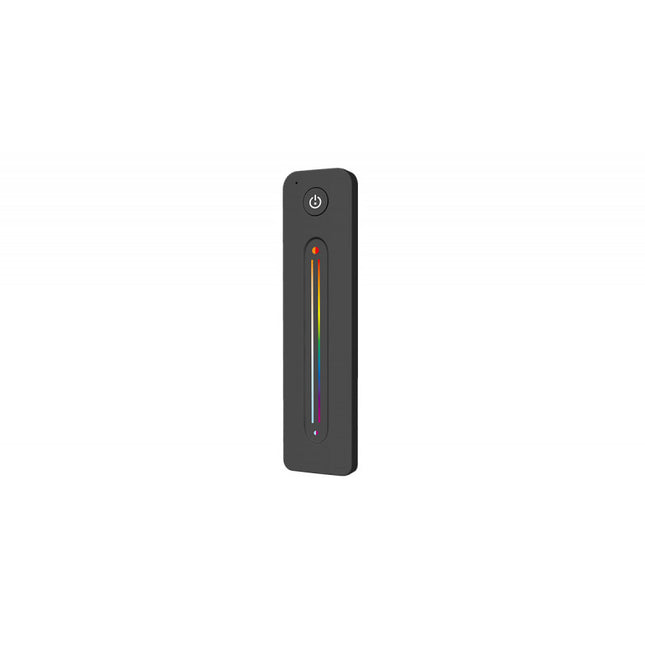

Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Vienna No Dot RGBW Kits - It's Seamless Lighting Made Simple
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Contact us for a fast quote today. We aim to quote within 1 hour. Feel free to call on 0116 406 2959, email at sales@upriseled.com or contact us for super fast response on WhatsApp: 07957 180 481.
Colour Temperatures
First and foremost this WRGB strip offers a dedicated 3000K warm white / 4000K neutral white / 6000K cool white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "spotless" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>90.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our UHD (Ultra High Definition) RGBW COB LED strip lights come equipped 1132 micro LEDs per meter offering a no spotting appearance. When used in conjunction with our extruded aluminium channels, generally known as LED profiles, you get a truly "seamless" effect. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Feed In Cable Tails
Uprise can solder any length of 5 core flat cable to your UHD RGBW seamless LED strip light. Simply let us know your project application and we'll advise the best way to achieve your desired result.
Application

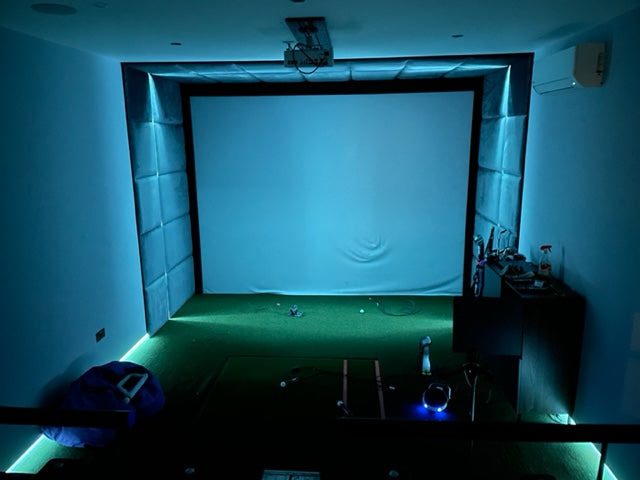

This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+4000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 1132LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K)
Lumens/w: N/A
CRI: >90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 20W (19.6 actual)
Input Voltage: 24V
Current (A): N/A
Cable in: 200mm 2 core (as standard)
Cable out: N/A
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 22.5mm
Cable: 5 core flat cable (20 AWG)
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll within antistatic silver bag (typical)
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A white cob led tape light that offers seamless light throughout the strip. This provides a spot free "no dotting" impression within a groove, channel or aluminium LED profile. Just 9W per meter with a 2700K / 3000K / 4000K / 6000K temperature, it's ideal for kitchen features, pull-out drawers, countertop grooves, media units, cabinets or shelves and bedrooms and bathrooms.
Here's what customers have to say
--
"No Dot" COB LED Tape 9W/M (5M) IP20
*Priced per length. Enterprise class quality with the latest in integrated LED technology. Ideal for both commercial and domestic applications.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise LED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 9 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 9W/M offering excellent efficiency and upto a respectable 525 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 10mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade San'an LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal) / IP65 Heat Shrink (splash proof)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 525lm/m
Lumens/w: 105lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W (based on 5M run length).
Input Voltage: 12v DC
Current (A): 0.42A/m
Cable in: 500mm 2 core (as standard)
Cable out: N/A
Dimensions
Width: 8mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
A 22AWG 5 core flat Black/Green/Red/Blue/White copper cable length. Available in 1M / 2M / 3M / 5M / 25M / 50M / 100M lengths. For custom lengths please call 0116 406 2959 or email us at sales@upriseled.com. In stock for next day delivery.Ideal for extending the cable tail of any of our RGBW seamless or standard LED tape lengths to 2M (2000mm). Cut to length with bare ends revealed ready for connection.
PDF - Single Colour Remote Control (Black) Datasheet
For use with single colour LEDs (12V/24V LED strip lights, Modules, Under Cabinet lights
Simple, elegant and easy to use (user friendly) design with touch sensitive dimming slide functionality. Intuitive smooth dimming experience which is flicker-free
Easy to pair with multiple controller-receivers simultaneously for simple, syncronised control.
Operates at RF 2.4Ghz for a seamless, guaranteed signal stability and blockages of up to 30M range.
CR2032 battery (Included) powered.
Wall mounted magnetic bracket holder included, can be fixed with ease to a wall, display or any magnetic metal surface.
NOTE: In order to run your LED lights via this remote a further compatible controller receiver is required along with your light products. We have a wide selection of controllers available, if in doubt contact us via WhatsApp 07957 180 481 or email sales@upriseled.com.
Control: Single Colour LED StripsOperating Voltage: 3VNumber of Zones: 1Operating Range: 30mDimensions: H 11 x W 38 x L 139mmFinish Colour: Black
A slim aluminium LED profile designed for surface mount applications.
It comes complete with a length of silver aluminium profile, plastic end caps and both, metal or plastic fix clips. Supplied with a professional Semi Clear Diffuser for a smoother appearance of the LEDs.
Internal width of 12mm allows you to house flexible LED strips up to 12mm wide. The standard length of this LED profile is 1M or 2M. The construction is based on 6063 T5 Aircraft Aluminium, which makes it tough and fit for purpose.
If you would like a custom length please get in touch via phone, text or whatsapp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Slim Surface
Compatible with: Suitable for LED tape width :<12mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal/Plastic optional
Finish: Silver
PC Cover: Semi Diffused
Width: 17mm
Internal Width: 12mm
Height: 8mm
Length: 1M / 2M
Bespoke Cut Lengths: Contact to discuss.
1 meter package size: 150PCS/Carton, 102X13X17CM
2 meter package size: 150PCS/Carton, 202X13X17CM
G.W (Per meter): 0.14KG
Warranty: 5 Year Warranty
*Please Note: This small 6W constant voltage power supply is available in 12V or 24V and is not viable for both voltage types at the same time.
Mini 6W Constant Voltage LED Driver available in 12V or 24V.
This super small constant voltage LED driver by Uprise offers quick and simple PowerUp to 12V/24V LED lights and single colour LED tape lights. Ideal for areas where space is limited and a tiny LED power source is required. With it’s 6W capacity and simple connection small 12V/24V LED products / LED tape strips can be connected effortlessly.
Output12V / 24V +/- connection for connection with 12V / 24V LED lamps, market LEDs or LED tape lights.
Power ConsumptionOur PowerUp 6W super small constant voltage LED PSU is rated at 6W.
SizeSuper small design at just 22mm depth for hidden installation. 42mm x 42mm x 22mm
Wiring2 core cable connected to +/- connectors
Testing100% full load age testing, consistent with world lighting safety standards.
Circuit ProtectionOpen circuit, short circuit, overload and overheating protection.
StandardsAll of our PowerUP LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengthsThis product is compatible with all our 24V seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 6W - 10% (5.6W) to build in a safety buffer.
ApplicationA thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
IP RatingThis LED supply is IP20 rated and suitable for internal applications.
EnvironmentsCreate a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this PowerUp 6W super small constant voltage LED driver with a range of our single colour & seamless cob LED tape lights.
Quality AssuranceUprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: Constant Voltage LED driver
IP Rating: IP20
Brand: PowerUp
Electrical
Power Range: 6W
Input Voltage: 100-240V
Output Current (A): 0.5A (12V) 0.25A (24V)
Output Voltage: 12V / 24V + / - connection
Power Factor: 0.6
Efficiency: 83%
Dimensions
Width: 42mm
Height: 22mm
Length: 42mm
Installation
Mounting: x2 Screws at corners
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 30g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?This driver is compatible with any 12V / 24V 2 core single colour LED tape strip or 12V / 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
60W Ultra Thin LED Driver 24V
This ultra thin LED driver by Uprise offers quick and simple PowerUp to 24V LED lights and single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 60W capacity and simple connection 24V LED products / LED tape strips can be connected effortlessly.
Output
24V +/- connection for connection with 24V LED lamps, market LEDs or LED tape lights.
Power Consumption
Our PowerUp 60W ultra thin LED PSU is rated at 60W.
Size
Ultra thin design at just 22mm depth for hidden installation. 185mm x 63.5mm x 22mm
Wiring
2 core cable connected to +/- connectors
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our PowerUP LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (56W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this PowerUp 60W ultra thin LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: Ultra thin LED driver
IP Rating: IP20
Brand: PowerUp
Electrical
Power Range: 18W-60W
Input Voltage: 100-240V
Output Current (A): 2.5A
Output Voltage: 24V + / - connection
Power Factor: 0.9
Efficiency: 83%
Dimensions
Width: 63.5mm
Height: 22mm
Length: 185mm
Installation
Mounting: x2 Screws at corners
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 140g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
An ultra thin IP65 (splash proof) 2.4M long 5000K cool white COB LED strip light that is seamless "no dots". Developed to be 2.4M (2400mm) as standard, it's perfectly suited for acoustic slatted wall panel LED light lines. At just 5 watt per meter yet still bright it's Ideal for bathrooms, kitchens, bars or exterior areas where splash resistance is required. Rated at 24V.
Support Videos
What are the different colour temperatures available for this 4mm COB LED strip light?Do you offer single / double door cabinet sensors for wardrobes, how do they work?Seamless Lighting Simplifed - Uprise Company Overview Video[VIDEO] How can I extend the cable easily between COB LED strips?[Y] ep1 - Best way to connect a 5M 4mm COB LED strip to driver (24V)
Product Datasheets
480LED_M_4mm_5W_M_COB_LED_Tape_5000K_IP65_HS_24V_DATASHEET
Compatible Products (LED Solution)
POWERUP Furniture LED Drivers
60W constant voltage furniture LED driver (24V) > 6CH single colour wifi connectable controller receiver (12V-24V)
Cabinet LED Drivers
36W 5 output cabinet LED driver (24V) with 2M mains lead
60W 7 output cabinet LED driver (24V) with mains lead
24W 5 output cabinet LED driver (24V) with mains lead
Cabinet LED Sensors
Furniture LED sensors for cabinets, drawers, walk in wardrobes
Extension Cables
2M / 3M / 4M / 5M male-female 2 core flat LED extension cables
How to connect COB LED tape lights simply.
Super narrow 4mm COB LED tape. No-Dot lighting made easy.
This 5-watt COB LED strip is a continuous LED lighting source that is ultra narrow and very flexible, making it excellent for a variety of applications. This high lumen LED tape, which uses branded COB LEDs and is manufactured to a high quality standard, produces up to 573.9 (5000K) lumens per meter, while consuming only 5 watts per meter. A normal life expectancy is 35,000 hours of continuous use.
24V COB LED Strip Wiring Scenarios
1) Plug & Play Furniture System (on/off): UK Mains > 2M UK plug to C7 mains lead > 24V 24W Furniture Cabinet Light Driver > 24V COB LED strip light
2) Plug & Play Furniture System w/sensor: UK Mains > 2M UK plug to C7 mains lead > 24W / 60W Furniture LED Driver (24V) > Furniture Sensors > 24V COB LED strip light
3) Plug & Play Multi-Port (6) Wifi/Remote Furniture Light System: UK Mains > 2M UK plug to C7 mains lead > 60W Furniture LED Driver (24V) > Single Channel Wifi Connectable Controller Receiver > 24V COB LED strip light < Single Colour Remote Handset / Smart Device Control.
Articles
The Definitive Guide to COB LED Strip Lights
Available Colour Temperatures
This COB LED strip is 5000K daylight white. However Uprise has a wide range of LED strip lights to accommodate your needs, from roasting deep warm whites to cool white shades. We offer a standard range of kelvin temperatures that match to 2700K, 3000K, 3500K, 4000K, 5000K, and 6000K. Do you have a colour in mind? Fee free to discuss any bespoke length requirements with us. Contact us today via WhatsApp on 07957 180 481 or email us at sales@upriseled.com
Colour Rendering Index (CRI)
This flexible LED tape light is available in CRI>90.
Brightness (Lumen Output)
This luminous LED ribbon produces 481.05lm/m (5000K), 512.8lm/m (5000K), 550.75lm/m (5000K), and 573.9lm/m (5000K) typically.
Light Diffusion
When illuminating any surface, our COB LED tape lights provide a seamless linear effect as standard. Our LED tape strips can be used in combination with our extruded aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise's 5-watt COB LED tape light, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 50mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Application
This ultra narrow COB LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is only 4mm wide and IP65 (splash proof) rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with a IP65 rating are ideal for applications where the potential for liquid ingress is present.
IP Rating Options
This LED strip is available in IP65 (splash proof). Feel free to WhatsApp us on 07957 180 481 or email us via sales@upriseled.com to talk to an expert. We'll assist you to choose the right strip to apply.
Environments
This strip light offers bright lighting for commercial applications, which is suitable for luxury resorts, restaurants, bars, hotel lobby areas as well as retail environments and window displays. When in need of a super narrow, bright, long lasting LED strip, this product is ideal for architects, lighting designers, AV integrators, electrical contractors and trade professionals alike.
It is perfectly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip.
Specifications
General
Product Type: Seamless COB LED Tape
Colour: 5000K
IP Rating: IP65 (Splash Proof)
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 480LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 481.05Lm/m (5000K)
Lumens/w: 96.21Lm/w (5000K)
CRI: >90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 5W
Input Voltage: 24V
Current (A): 0.21A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 4mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this 4mm cob led tape strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 4mm and will fit into all LED profiles with an inside width of 4mm and above.
How can I buy?
You either buy individual components online or call / WhatsApp us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
An ultra thin IP65 (splash proof) 2.4M long 4000K neutral white COB LED strip light that is seamless "no dots". With a 2.4M (2400mm) designed length, it fits perfectly within acoustic slatted wall panel lighting refits. At just 5 watt per meter yet still bright it's also a great solution for bathrooms, kitchens, bars or exterior areas where splash resistance is required. Rated at 24V.
Support Videos
What are the different colour temperatures available for this 4mm COB LED strip light?Do you offer single / double door cabinet sensors for wardrobes, how do they work?Seamless Lighting Simplifed - Uprise Company Overview Video[VIDEO] How can I extend the cable easily between COB LED strips?[Y] ep1 - Best way to connect a 5M 4mm COB LED strip to driver (24V)
Product Datasheets
480LED_M_4mm_5W_M_COB_LED_Tape_4000K_IP65_HS_24V_DATASHEET
Compatible Products (LED Solution)
POWERUP Furniture LED Drivers
60W constant voltage furniture LED driver (24V) > 6CH single colour wifi connectable controller receiver (12V-24V)
Cabinet LED Drivers
36W 5 output cabinet LED driver (24V) with 2M mains lead
60W 7 output cabinet LED driver (24V) with mains lead
24W 5 output cabinet LED driver (24V) with mains lead
Cabinet LED Sensors
Furniture LED sensors for cabinets, drawers, walk in wardrobes
Extension Cables
2M / 3M / 4M / 5M male-female 2 core flat LED extension cables
How to connect COB LED tape lights simply.
Super narrow 4mm COB LED tape. No-Dot lighting made easy.
This 5-watt COB LED strip is a continuous LED lighting source that is ultra narrow and very flexible, making it excellent for a variety of applications. This high lumen LED tape, which uses branded COB LEDs and is manufactured to a high quality standard, produces up to 573.9 (6000K) lumens per meter, while consuming only 5 watts per meter. A normal life expectancy is 35,000 hours of continuous use.
24V COB LED Strip Wiring Scenarios
1) Plug & Play Furniture System (on/off): UK Mains > 2M UK plug to C7 mains lead > 24V 24W Furniture Cabinet Light Driver > 24V COB LED strip light
2) Plug & Play Furniture System w/sensor: UK Mains > 2M UK plug to C7 mains lead > 24W / 60W Furniture LED Driver (24V) > Furniture Sensors > 24V COB LED strip light
3) Plug & Play Multi-Port (6) Wifi/Remote Furniture Light System: UK Mains > 2M UK plug to C7 mains lead > 60W Furniture LED Driver (24V) > Single Channel Wifi Connectable Controller Receiver > 24V COB LED strip light < Single Colour Remote Handset / Smart Device Control.
Articles
The Definitive Guide to COB LED Strip Lights
Available Colour Temperatures
This COB LED strip is 4000K daylight white. However Uprise has a wide range of LED strip lights to accommodate your needs, from roasting deep warm whites to cool white shades. We offer a standard range of kelvin temperatures that match to 2700K, 3000K, 3500K, 4000K, 5000K, and 6000K. Do you have a colour in mind? Fee free to discuss any bespoke length requirements with us. Contact us today via WhatsApp on 07957 180 481 or email us at sales@upriseled.com
Colour Rendering Index (CRI)
This flexible LED tape light is available in CRI>90.
Brightness (Lumen Output)
This luminous LED ribbon produces 481.05lm/m (4000K), 512.8lm/m (4000K), 550.75lm/m (4000K), and 573.9lm/m (6000K) typically.
Light Diffusion
When illuminating any surface, our COB LED tape lights provide a seamless linear effect as standard. Our LED tape strips can be used in combination with our extruded aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise's 5-watt COB LED tape light, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 50mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Application
This ultra narrow COB LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is only 4mm wide and IP65 (splash proof) rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with a IP65 rating are ideal for applications where the potential for liquid ingress is present.
IP Rating Options
This LED strip is available in IP65 (splash proof). Feel free to WhatsApp us on 07957 180 481 or email us via sales@upriseled.com to talk to an expert. We'll assist you to choose the right strip to apply.
Environments
This strip light offers bright lighting for commercial applications, which is suitable for luxury resorts, restaurants, bars, hotel lobby areas as well as retail environments and window displays. When in need of a super narrow, bright, long lasting LED strip, this product is ideal for architects, lighting designers, AV integrators, electrical contractors and trade professionals alike.
It is perfectly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip.
Specifications
General
Product Type: Seamless COB LED Tape
Colour: 4000K
IP Rating: IP65 (Splash Proof)
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 480LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 481.05Lm/m (4000K)
Lumens/w: 96.21Lm/w (4000K)
CRI: >90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 5W
Input Voltage: 24V
Current (A): 0.21A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 4mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this 4mm cob led tape strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 4mm and will fit into all LED profiles with an inside width of 4mm and above.
How can I buy?
You either buy individual components online or call / WhatsApp us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A special half square diffused profile designed for surface mounted LED lighting projects. It's unique half square diffuser allows for multi angle illumination when viewed.
It comes complete with a length of aluminium profile, plastic end caps and metal fix clips. Supplied with a professional diffuser that is available diffused (opaque).
This high-quality aluminium extrusion is suitable for LED strips that are up to 17mm wide.
The size is 20mm wide and 20mm high (including sliding cable tray). Standard lengths are available in 0.6M and 2.4M. Available bespoke lengths available on larger order quantities.
If you would like a custom length please get in touch via WhatsApp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Square with half square diffuser.
Compatible with: Suitable for LED tape width :<17mm
Material: Aluminium
End Caps: Plastic
Fix Clips: Metal
Finish: Silver
PC Cover: Transparent/Diffused
Width: 20mm
Internal Width: 17mm
Height: 20mm (when measured with slide in cable tray)
Length: 0.6M / 2.4M
Available Cut Lengths: Available on request, please enquire on WhatsApp via 07957 180 481 or email sales@upriseled.com
Warranty: 5 Year Warranty
This 6 port LED distributor includes a 1M (1000mm) lead cable with micro connector that works with our cabinet LED driver range. Up to 6 single colour LED strip lights or products can be connected to this 2 pin 6 way LED channel splitter. Superior 7 Amp rating compared to 3A alternatives.
Features & Benefits
Purpose: Click and connect distribution of up to 6pcs of 12V/24V LED products (that include a male micro connector lead).
Compatible with 12V or 24V LED lights.
Includes 1M lead tail with a male micro connector which can connect to our cabinet LED drivers.
6 ports 7A max.
Can be used in conjunction with any 12V or 24V constant voltage LED power supply. Simply cut the male connector off, strip wires and waygo connect to +/- LED side of power supply.
Thick 20AWG white / dashed grey 2 core cable. Which = Positive (+), Dashed grey = Negative (-).
6 way distribution block with DuPont connections for simple click and connect operation.
