[VIDEO] How can I extend the cable easily between COB LED strips?[VIDEO] What size 12V-24V micro connector cable lengths are available?
*In stock UK for next day delivery or same day collection (Lutterworth, Leicestershire).

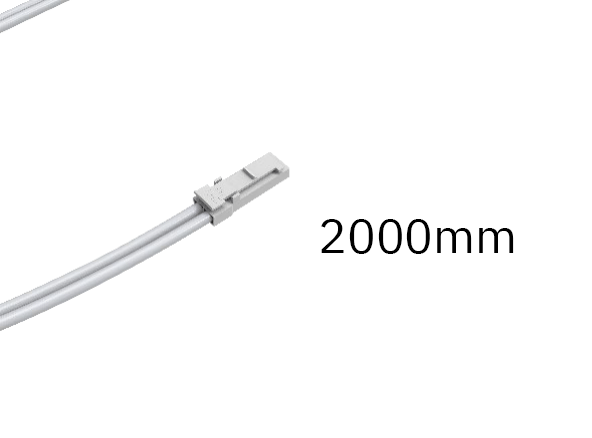

This sleek cable allows you to extend the lighting cable attached to a multi-output cabinet LED driver module. Please get in touch if you require any support with additional extension cable.
Features & Benefits
1x Male/Female output extension cable supplied
Smaller sleeker design than other LED extension cables for a tidier fitout.
This LED light extension cable is used to achieve a longer run from your light source to your driver.
These extension cables can also be joined together to create even longer lengths to your lights.
We supply various LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
A 2M (2000mm) / 3M (3000mm) / 4M (4000mm) / 5M (5000mm) extension cable with plug and play female (input) and male (output) micro connectors that works with our cabinet LED driver range
Support Videos
Seamless Lighting Simplifed - Uprise Company Overview Video
[Y] ep1 - Best way to connect a 5M 4mm COB LED strip to driver (24V)
Description
A super slim white cob led tape light that offers seamless light throughout the strip. 5W per meter with a 2700K / 3000K / 4000K / 6000K colour temperature temperature, it's ideal for tight grooves, cabinet displays or shelving units. Comes with 0.5M tail and plug & play that connects to 24V LED power supplies.
Compatible Products (LED Solution)
Cabinet LED Drivers

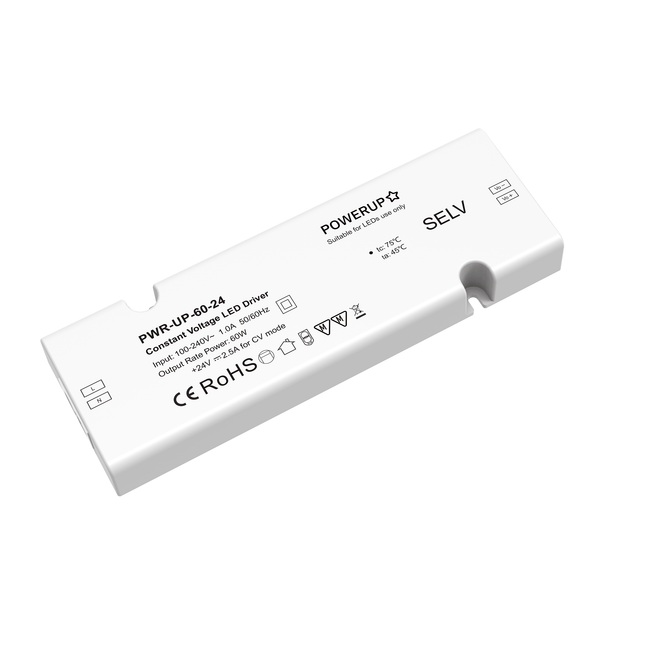

60W 7 output cabinet LED driver (24V) with mains lead
24W 5 output cabinet LED driver (24V) with mains lead
Cabinet LED Sensors
Furniture LED sensors for cabinets, drawers, walk in wardrobes
Extension Cables
2M / 3M / 4M / 5M male-female 2 core flat LED extension cables
Product Datasheets
Product Data Sheet (Branded)Product Data Sheet (Unbranded)
How to connect COB LED tape lights simply.
--
Seamless PRO COB LED Tape 4W per meter IP20
Supplied as 1M / 3.5M / 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 4 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
This precision engineered 24V COB LED tape strip is just 4W/M offering excellent efficiency and upto 700 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K warmer white, 3000K warm, 4000K neutral white and 6500K cool.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 4mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (4W/M)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6500K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 700lm/m
Lumens/w: 105lm/W
High CRI: 85+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 5W
Input Voltage: 24V DC
Current (A): 0.166A/m
Cable in: 500mm 2 core with micro connector (as standard) for seamless installation with our professional cabinet LED drivers & sensor range. 3.5M+ lengths includes x2 0.5M tails with micro connectors either end.
Cable out: 500mm 2 core (as standard) with male micro connector (3.5M+ lengths only)
Dimensions
Width: 4mm
Height: 2mm
Length: 1M, 1.8M, 2M, 2.5M, 3M, 3.5M, 4M, 5M, 10M (as standard), available in bespoke custom cut to lengths, call us on 0116 406 2959, email us at sales@upriseled.com or send us a project request on 07957 180 481.
Installation
Cut points: 50mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 1M / 3.5M as standard / 5M Roll or custom lengths available on request.
Net Weight: 152g/Roll
Product Questions & Answers
Q) Are these 4mm COB LED strips lights waterproof?A) The 4mm COB LED tape light is IP20 meaning it is not waterproof and ideally suited for internal applications.
Q) Would this work if I connect it to a sensor switch?A) Yes, our cabinet LED drivers are compatible with many of our different types of sensors. For example we offer a single, double door sensor ideal for kitchen cabinets and walk-in wardrobes along with PIR and 1-100% on/off silver touch sensors. These sensors are available in both an [inline] and [master] type. Inline means that it connects to one of the LED accessory ports between the driver and LED light. Master means it connects to the master port of the driver for full control of every LED light attach to the inline driver ports.
Q) I purchased a 12V 2700K 5M COB LED strip length back in August 2022 and notice an ever so slight brightness decrease towards the end of the strip. Why is this and what can I do to stop it? A) This is due to voltage drop, due to the number of micro COB LEDs (chip on board) and overall length of strip you will notice a slight drop in power and brightness towards the end. To avoid this simple power it from both ends, you can do this by soldering a return cable onto the other end. Alternatively you can add a slide on connector and wire the bares to your associated constant voltage power supply.
Q) After I cut the 5M light strip into 4 segments of the lengths I wanted, how do I power these 4 segments?A) You can do this by first ensuring you have cut across the designated copper solder pad intervals. These can be soldered to. Second you would then solder a +/- cable to each segment and connect to a designated constant voltage power supply. This can either be done in series or parralell. Here are the wiring scenarious: 1) 12V Series: Power Supply > Strip > Strip > Strip > Strip > Return (If over 3.5M) 2) 24V Series: Power Supply > Strip > Strip > Strip > Strip > Return (If over 5M) 3) 12V/24V Paralell: Power Supply > 4 Strips on seperate lines. Please Note: If you are unsure, please consult a qualified electrician or electrical contractor before carrying out any electrical works.
Q) Hi, I purchased this a few months back and the COB LED tape is not working. It's not lighting up?A) Dear Uprise Customer: Please can you check that the mains power source is turned on. Alternatively, if you're seamless LED strip has a micro connector, please check that this is securely connected to either the extension cable, sensor or Cabinet LED driver. Check all the micro connectors are secure and connected.
Q) What is the power consumption and IP rating and for a 5 metre strip? ThanksA) Dear Uprise Customer: The power consumption for this 4mm 5M spot free COB LED strip is advised at 4W/M.5M Powered one end: 19W or 3.8W/M.5M powered from both ends: 24W or 6W/M. The IP rating is IP20, which means it's ideal for internal applications and offers no splash proofing or liquid resistance.
Q) Can I cut this strip and how far apart can I cut?A) Yes this strip can be cut at each cutting interval. Marked as a small black line. Be carefulA) You can cut this 24V 4mm COB LED strip at every 50mm (5cm) cut point.
Q) Can I cut this strip and how far apart can I cut?A) Yes this strip can be cut at each cutting interval. Marked as a small black line. Be carefulA) You can cut this 24V 4mm COB LED strip at every 50mm (5cm) cut point.
Q) Do you sell this in 1m or other custom size lengths? I'm using this for under-counter lighting and cabinet light and have a gap between for the cooker. Thank you!A) Dear Uprise customer: Yes we offer a cut for you service or alternatively you can buy a 5M length and cut & solder yourself. It's entirely upto you. Email us at sales@upriseled.com to discuss your kitchen worktop, under-cabinet or drawer light application. We're here to help.
For this 3000K 4mm "dot free" COB LED strip you can also consider putting it into a further micro channel for a more complete, finished look.
Q) Can these be joined or extended, let's say if i need 9m of light in one run?A) Yes, we've tested upto 14M with a return. The strips can be soldered together at the copper solder intervals. You need a return cable (ring mains - series) to power effectively. If in doubt give us a call on 07957 180 481 or consult with a qualified electrical professional.
Project Support
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 4mm wide and will fit into all LED profiles with an inside width of 4mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
Support Videos
Seamless Lighting Simplifed - Uprise Company Overview Video
[Y] ep1 - Best way to connect a 5M 4mm COB LED strip to driver (24V)
Description
A super slim white 5mm cob led tape light that offers seamless light throughout the strip. Using the highest grade, latest generation micro LED chips this professional COB LED tape light is ideal for bespoke kitchens, furniture lighting and media unit integration.
Compatible Products (LED Solution)
Cabinet LED Drivers
60W 7 output cabinet LED driver (12V) with mains lead
24W 5 output cabinet LED driver (12V) with mains lead
Cabinet LED Sensors
Furniture LED sensors for cabinets, drawers, walk in wardrobes
Extension Cables
2M / 3M / 4M / 5M male-female 2 core flat LED extension cables
This ultra energy efficient strip is just 7-watt per meter. Available in a choice 3000K warm white / 4000K neutral (day light) / 6500K cool white temperatures, it's ideal for tight grooves, cabinet displays or shelving units. Complete with hand soldered pre- 2M tail for plug & play connection our our range of 12V cabinet LED drivers. Save time from project start of spec to long-term satisfaction.
How to connect COB LED tape lights simply.
--
Seamless PRO COB LED Tape 7W per meter (5M) IP20
Supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
This precision engineered 12V COB LED tape strip is just 7W/M offering excellent efficiency and upto 700 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 3000K warm, 4000K neutral and 6500K cool.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 5mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (7W/M)
Colour: Warm White (3000K) / Neutral White (4000K) / Cool White (6500K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 450-550lm/m
Lumens/w: 72lm/W
High CRI: 90+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 7W
Input Voltage: 12v DC
Current (A): 0.58A/m
Cable in: 2000mm 2 core with micro connector (as standard) for seamless installation with our professional cabinet LED drivers & sensor range.
Cable out: 200mm 2 core (as standard)
Dimensions
Width: 5mm
Height: 2mm
Length: 5m (as standard), available in bespoke custom cut to lengths, call us on 0116 406 2959, email us at sales@upriseled.com or send us a project request on 07957 180 481.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: Strong adhesive backing tape (blue)
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 5mm and will fit into all LED profiles with an inside width of 5mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.

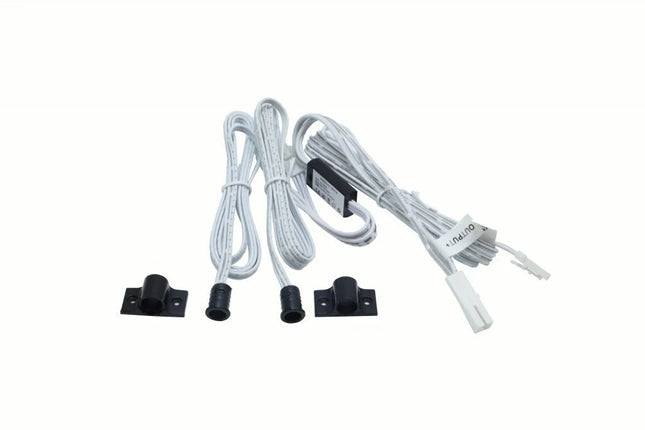

[VIDEO] What is a 12V-24V LED double door micro sensor?
This black finished double door sensor offers simple on/off illumination when dual cabinet doors are opened and shut. Complete with two individual sensors for individual door sensing.
--
*In Stock UK - 12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Black)
12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Individual output dimming)
This double sensor switch consists of two inductive sensors which are can be switched on or off, without the need for a physical switch. It connects directly to an individual output of our Cabinet LED driver range. Rated for either 12V/24V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications
What is the operation of this 12/24V DC double sensor switch for cabinet/wardrobe doors?
The operation is simple, each sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V/24V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number:
Product Type: 12/24V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12-24V DC
Max Output Current: 5A
Maximum Power: 60W (12V) 120W (24V)
Design
Material: PVC plastic
Finish: Black
Dimensions
Size: Ø 12 x 13 mm
Cutout: Ø 10 mm
Length: 170mm
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
Special Trial Offer - Try Before You Begin. Limited number of kits available. Includes free shipping to UK Mainland. Limited to one per customer.This simple to connect 500mm 3000K warm white cob led strip kit comes with a 24W 5 output plug and play driver. It's ideal for trialling "no dot" lighting before you commence with a lighting project.
Wiring Setup: UK Mains Socket > UK Mains Plug (Inc C7 connector) > 24W Cabinet LED Driver (12V) > 12V 3000K "no dot" COB LED TapeIdeal for trade professionals, DIY'ers, lighting designers, joinery companies and great for product fit testing within home environments such as kitchens, bedrooms and bathrooms. Along with applications like cabinets, drawers, shelves, media units, walk in wardrobes and more.
--
12V 0.5M COB LED Tape Kit With Quick Connect Driver
Kit Includes
x1 0.5M (500mm) 8mm 12V IP65 (heatshrink) COB LED tape light packed on reel.
x1 24W 12V plug and play cabinet style LED driver
x1 2M Extension cable so you can see how easy it is to extend your length.
x1 2M mains plugs with C7 type connector (plugs directly into cabinet LED driver).
Support
How to connect COB LED tape lights simply.
Specifications
COB LED Tape
Product Type: Seamless No Dot LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 900lm/m
Lumens/w: 80-120lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter based on 5M run length): 9WFor Actual Wattages: Download Wattage & Driver Parameters Sheet .csv
Input Voltage: 12v DC
Current (A): 0.75A/m
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm
Height: 2mm
Length: 2.5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 2.5M Roll as standard.
Net Weight: 152g/Roll
*Please Note: No more than 3 metres of COB LED tape should be connected to a single port. Upto 6 metres can be powered across two ports (powered both ends).
Article - The Definitive Guide to COB LED Strip Lights
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can I cut this COB LED strip to length?
Yes, it can be cut easily at every 25mm indicated cut point. Alternatively we can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
How do I connect an extension cable to the LED tape?
This LED tape kit comes with 10mm wide LED tape to 2 core cable connectors. Simply push the ends of tape into one side of the connector and the 2 core cable into the other. Once both are firmly in place clamp down the metal connection spokes with a pair of plyers. This results in a secure circuit. It's important to ensure the polarity of the + / - are correctly orientated, please check this.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help you get a finished result that lasts.
Wiring (Add components)
Mains Source > 2M C7 Mains Lead > 24W Cabinet Driver > Sensor > COB LED Tape

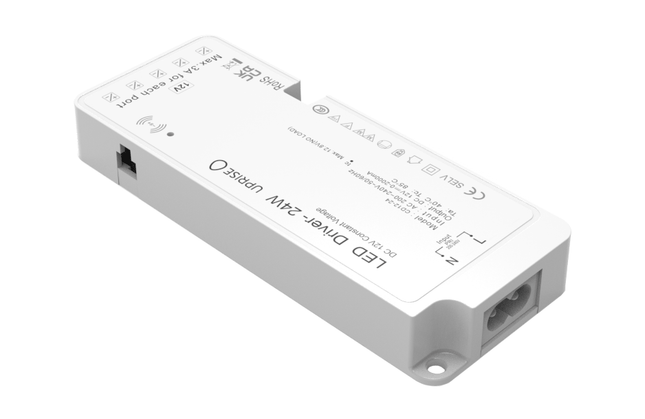

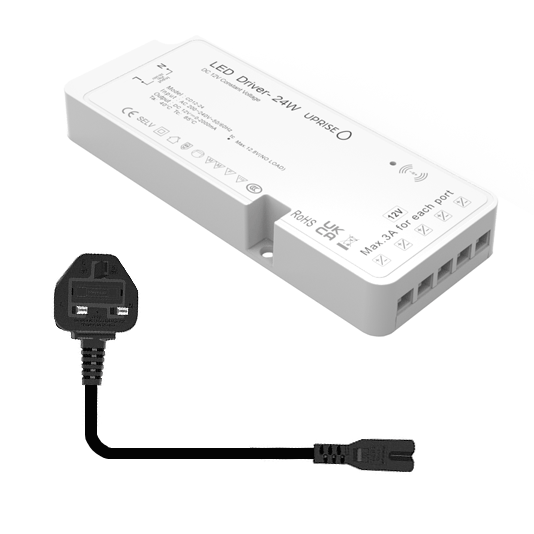

24W 5 Output Cabinet Display LED Driver 12V
*Includes x1 black coloured 2M (2000mm) UK mains plug to C7 kettle lead.
This 5 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 12V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 5 micro connectable outputs you can easily run 5 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 24W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 136mm x 54mm x 18.5mm
Wiring
5 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 12V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 24W - 10% (21.6W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 54mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 12V 24W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 5 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-24W
Input Voltage: 200-240V
Output Voltage: 12V +/- 5%
AC Input Current: 0.36A
3A Port: 5
Outputs: x5 micro connectors
Wattage: 24W
Voltage: 12V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V 2 core single colour LED tape strip or 12V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A white 480LED/M cob led tape light that offers seamless light throughout the strip. 5W per meter with a 2700K / 3000K / 4000K / 6000K temperature, it's ideal for cabinets or shelves.
--
Seamless COB LED Tape 5W (5M) IP20
*Priced per meter. Typically supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by UpriseMED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 5W/M offering excellent efficiency and upto a respectable 525 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 10mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade San'an LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (5W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal) / IP65 Heat Shrink (splash proof)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 525lm/m
Lumens/w: 105lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 5W
Input Voltage: 12v DC
Current (A): 0.42A/m
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
This black finished master double door sensor offers simple on/off illumination when dual cabinet doors are opened and shut. It connects to the master output of our 12V cabinet LED driver range.
--
*In Stock UK - 12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Black)
12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (master all outputs dimming)
This double sensor switch consists of two inductive sensors which are can be switched on or off, without the need for a physical switch. It connects directly to a master output of our 12V Cabinet LED driver range. Rated for either 12V/24V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications
What is the operation of this 12/24V DC double sensor switch for cabinet/wardrobe doors?
The operation is simple, each sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V/24V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of 12V Cabinet LED driver and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number:
Product Type: 12/24V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12-24V DC
Max Output Current: 5A
Maximum Power: 60W (12V) 120W (24V)
Design
Material: PVC plastic
Finish: Black
Dimensions
Size: Ø 12 x 13 mm
Cutout: Ø 10 mm
Length: 170mm
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
Quick Overview
This LTECH SPI-16 M16 Mini RF SPI LED Pixel Controller is compatible with DC5-25V input. It's purpose is to generate both small and large scale digital pixel visual effects via simple handheld remote and presets. It's a popular, hardy system that is also cost effective. You easily generate a gradient rainbow effect amongst other fun effects patterns.
It has a max output rating of 10A which means this pixel LED controller can power no more than: 50W at 5V, 120W at 12V, 240W at 24V.
Compatible IC Types:TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TLS3001, TLS3002, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, WS2811, WS2812, P9813
Please note: The RF handset requires a cr2032 lithium battery.
Please contact sales@upriseled.com for Pixel LED strips, LED controllers and compatible LED power supplies. This product is in stock UK for next day delivery (DPD). Many customers choose Uprise for high quality products, fast delivery and excellent service and support. If you have any challenges with your order we're here to help. You can also contact us on 0116 406 2959 to discuss your project.
Payments are safe via Stripe a leading platform or you can get in touch with us to discuss your needs and to arrange BACs transfer.
Specifications
Model: MI6 Mini LED Pixel Controller With RF RemoteSKU: M16-RFReceiver Dimensions: L135 x W30 x H20mmHandset Dimensions: L104 x W60 x H9mmType: Digital ICPower input: 5V-24VOutput Power: 10 Amps MaxWatts: 50W at 5V, 120W at 12V, 240W at 24VTotal Pixels: 8 - 1020 pixelsRating: IP20 (Dry / Indoor)Operating Temperature: -22°C ~ 55°CWarranty: 1 yearPrevious Mode On Power Cycle: YesRemote Radius: 40M-50M (line of site)Colour Effect Modes: 16
Packaging Dimensions: 13.2x20cmPackaging Weight (G.W): 120g
A white cob led tape light that offers seamless "dot free" light throughout the strip. This provides a spot free "no dotting" impression when placed within a groove, channel or aluminium LED profile. Just 5W per meter with a 2700K / 3000K / 4000K / 6000K temperature, it's ideal for kitchen features, pull-out drawers, countertop grooves, media units, cabinets or shelves and bedrooms and bathrooms.
Here's what customers have to say
--
"No Dot" COB LED Tape 5W/M IP65 (Splash Proof)
*Priced per length. Commercial grade quality with the latest in integrated LED technology. Ideal for both commercial and domestic applications.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise LED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 5W/M offering excellent efficiency and upto a respectable 525 lumens per meter output. 320 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 9mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade San'an LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless Dot Free LED Tape (5W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP65 Heat Shrink (splash proof)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 320LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 289lm/m
Lumens/w: 57.8lm/W
High CRI: 90+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 5W (based on 5M run length).
Input Voltage: 12v DC
Current (A): 0.42A/m*5M Length Supply
Cable in: 500mm 2 core with micro connector (as standard)
Cable out: 500mm 2 core with micro connector (as standard)*Custom Length Supply
Cable in: 500mm 2 core with micro connector (as standard)
Cable out: N/A
Dimensions
Width: 9mm
Height: 2mm
Length: 5m (as standard) / Selected length.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years (back to base)Note: any custom made strip defaults to a 1 year warranty (back to base).
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 9mm and will fit into all LED profiles with an inside width of 9mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
30W Mini LED Driver 24V
This mini constant voltage LED driver by Uprise offers quick and simple PowerUp to 24V LED lights and single colour LED tape lights. Ideal for areas where space is limited and a miniature LED power source is required. With it’s 30W capacity and simple connection small 24V LED products / LED tape strips can be connected effortlessly.
Output
24V +/- connection for connection with 24V LED lamps, market LEDs or LED tape lights.
Power Consumption
Our PowerUp 30W mini constant voltage LED PSU is rated at 30W.
Size
Super small design at just 22mm depth for hidden installation. 41mm x 19mm x 91mm
Wiring
2 core cable connected to +/- connectors
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our PowerUP LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 30W - 10% (27W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this PowerUp 30W miniature constant voltage LED driver with a range of our single colour & seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: Constant Voltage LED driver
IP Rating: IP20
Brand: PowerUp
Electrical
Power Range: 30W
Input Voltage: 100-240V
Output Current (A): 1.25A
Output Voltage: 24V + / - connection
Power Factor: 0.6
Efficiency: 83%
Dimensions
Width: 41mm
Height: 19mm
Length: 91mm
Installation
Mounting: x2 Screws at corners
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 30g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
[VIDEO] How can I extend the cable easily between COB LED strips?
A Super thin 5W COB LED strip light that creates a continuous, seamless light line result. Select a colour that suits, ideal for kitchens, under cabinets, shelf lighting, wardrobes, routed linear crevices, retail POS displays, highlights and more.
Support Videos
Seamless Lighting Simplifed - Uprise Company Overview Video
[Y] ep1 - Best way to connect a 5M 4mm COB LED strip to driver (24V)
Compatible Products (LED Solution)
POWERUP Furniture LED Drivers
60W constant voltage furniture LED driver (24V) > 6CH single colour wifi connectable controller receiver (12V-24V)
Cabinet LED Drivers
60W 7 output cabinet LED driver (24V) with mains lead
24W 5 output cabinet LED driver (24V) with mains lead
Cabinet LED Sensors
Furniture LED sensors for cabinets, drawers, walk in wardrobes
Extension Cables
2M / 3M / 4M / 5M male-female 2 core flat LED extension cables
Product Datasheets
Product Data Sheet (Branded)Product Data Sheet (Unbranded)
How to connect COB LED tape lights simply.
Super narrow 4mm COB LED tape. No-Dot lighting made easy.
This 5-watt COB LED strip is a continuous LED lighting source that is ultra narrow and very flexible, making it excellent for a variety of applications. This high lumen LED tape, which uses branded COB LEDs and is manufactured to a high quality standard, produces up to 573.9 (6000K) lumens per meter, while consuming only 5 watts per meter. A normal life expectancy is 50,000 hours of continuous use.
24V COB LED Strip Wiring Scenarios
1) Plug & Play Furniture System (on/off): UK Mains > 2M UK plug to C7 mains lead > 24V 24W Furniture Cabinet Light Driver > 24V COB LED strip light
2) Plug & Play Furniture System w/sensor: UK Mains > 2M UK plug to C7 mains lead > 24W / 60W Furniture LED Driver (24V) > Furniture Sensors > 24V COB LED strip light
3) Plug & Play Multi-Port (6) Wifi/Remote Furniture Light System: UK Mains > 2M UK plug to C7 mains lead > 60W Furniture LED Driver (24V) > Single Channel Wifi Connectable Controller Receiver > 24V COB LED strip light < Single Colour Remote Handset / Smart Device Control.
Articles
The Definitive Guide to COB LED Strip Lights
Colour Temperatures
Uprise has a wide range of LED strip lights to accommodate your needs, from roasting deep warm whites to cool white shades. We offer a standard range of kelvin temperatures that match to 2700K, 3000K, 4000K, and 6000K. Do you have a colour in mind? Any bespoke manufacturing requirements you may have can be discussed with us.
Colour Rendering Index (CRI)
This flexible LED tape light is available in CRI>90.
Brightness (Lumen Output)
This luminous LED ribbon produces 481.05lm/m (2700K), 512.8lm/m (3000K), 550.75lm/m (4000K), and 573.9lm/m (6000K) typically.
Light Diffusion
When illuminating any surface, our COB LED tape lights provide a seamless linear effect as standard. Our LED tape strips can be used in combination with our extruded aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise's 5-watt COB LED tape light, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 50mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Application
This ultra narrow COB LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is only 4mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with IP20 rating are perfect for inside applications.
IP Rating Options
This LED strip is available in IP20. Feel free to contact us on 0116 406 2959 or email us via sales@uprisemed.com to talk to an expert. We'll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments
This strip light offers bright lighting for commercial applications, which is suitable for luxury resorts, restaurants, bars, hotel lobby areas as well as retail environments and window displays. When in need of a super narrow, bright, long lasting LED strip, this product is ideal for architects, lighting designers, AV integrators, electrical contractors and trade professionals alike.
It is perfectly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip.
Specifications
General
Product Type: Seamless COB LED Tape
Colour: 2700K / 3000K / 4000K / 6000K
IP Rating: IP20
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 480LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 481.05Lm/m (2700K), 573.90Lm/m (6000K)
Lumens/w: 96.21Lm/w (2700K), 114.78Lm/m (6000K)
CRI: >90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 5W
Input Voltage: 24V
Current (A): 0.21A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 4mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this 4mm cob led tape strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 4mm and will fit into all LED profiles with an inside width of 4mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
POWERUP 60W Constant Voltage Furniture LED Driver (12V)
Note: This driver requires a UK/Euro/US C7 Mains lead.This 60W cabinet LED driver can power 12V LED products including no dot LED strip lights. The value innovation comes when combined with our 1UP (GO) 6CH LED control box that allows for 6 output LED control and syncronous dimming via a single channel remote handset. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Compatible system products
6 Way Controller Receiver: 6CH Single Colour Wifi Connectable Controller Receiver (12V-24V)Remote Handset: Single Colour Remote Control 4 Zone (Black)
Outputs
Single output
6 outputs for LED accessories when combined with 1UP (GO) or 2UP wireless LED control boxes (allows for remote handset / phone app control). Ideal for cabinet shelves or kitchen feature lighting.
Features
100-240VAT Input
Single channel (1) constant voltage output, Maximum total output 60W
Ultra slimline design, light weight and high efficiency
Over-load / Short circuit protection
Suited for indoor (internal) LED lighting applications
5 Year, 50,000 hour warranty as standard
Applications
Cabinets, Shelves, Walkin-wardrobes, Integrated Light lines, Undercabinet Lighting
Coving, Architectural features,
Residential - Kitchens, Bedrooms, Conservatories, Home AV, Media Units,
Commercial - Retail, window displays, Hotel, lobbies, conference rooms,
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18mm depth for hidden installation. 164mm x 55mm x 18mm
Wiring
Mains > UK Mains Plug to C7 connector > PWR-UP-60-12
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 12V COB LED strip lights, marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (54W) to build in a safety buffer.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create an easy, fast setup for any environment. Just click and connect this plug and play system to create stunning, continuous LED light aesthetics.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Specifications
General
Product Type: Constant voltage furniture LED driver
IP Rating: IP20
Brand: POWERUP
Electrical
Power Range: 18W-60W
Input Voltage: 200-240V
Output Voltage: 12V +/- 5%
AC Input Current: 0.36A
Wattage: 60W
Voltage: 12V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch / Wood Sensor (Hidden sensor)
Dimensions
Width: 55mm
Height: 18mm
Length: 164mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V 2 core single colour LED tape strip or 12V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A sleek, simple to setup touch dimmer sensor. Includes on/off and touch and hold dimming up and down to control system LED lights. Finished in chrome silver with blue illuminated halo when powered up.
--
Mini Dimmable Touch Switch Sensor for LED Strips
A touch sensitive on-off micro dimmer switch that is simple to install. Simply click into one of our 12V plug and play cabinet LED drivers and press for on/off functionality. By gently touching the switch for a few seconds you can dim up/down system connected LED lights. When powered up it emanates with a low key, brilliant blue halo offering a stylish, more complete look.
The micro connector can also be cut off revealing a positive and negative wiring cores (2 core flat cable), indicated as white (+) /grey dotted line (-) which can be wired in series to your LED circuit.
This ready to connect mini light dimmer is ideal for kitchen cabinet lighting. Simply turn on/off and dim COB LED strip lights, Undercabinet lights and recessed spot lights with ease.
* LED Strip, light sources and other accessories not included.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number:
Product Type: 12V touch on/off sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: Compatible with 12V
Max Output Current: 5A
Maximum Power: 60W (5A in 12V)
Design
Material: Aluminium - PC
Finish: Silver/Chrome
Dimensions
Height: 13.5mm excluding cables
Width: 20mm Diameter including rim (outer flange)
Cutout: Ø 17.3 mm
Length: 170mm
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
Question: Does this touch dimmer switch remember it's setting on mains power on/off
Answer: No, it does not remember the last saved setting if the power source is turned on and off or vice versa. It will only remember the dimmer level if the system is always turned on.
Wide surface mounted aluminium extrusion compatible with LED strip lights that are 20mm wide.
The profile is completed with end caps and fix clips, which are made out of plastics. In addition, there is a professional Semi-Clear Diffuser.
The size is 22mm wide, 9mm high. The internal width is 20mm. This aluminium LED channel comes in 1M or 2M lengths as standard. Constructed with 6063 T5 Aircraft Aluminum.
Silver finish that provides a professional look.
If you would like a custom length please get in touch via whatsapp 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Wide Surface
Compatible with: Suitable for LED tape width: 20mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Plastic
Finish: Silver
PC Cover: Semi Diffused
Width: 22mm
Internal Width: 20mm
Height: 9mm
Length: 1M / 2M
Bespoke Lengths: Contact to discuss
1 meter package size: 102X13X17CM
2 meter package size: 202 X 13 X 17CM
G.W (Per meter): 0.16KG
Warranty: 5 Year Warranty
*In stock UK for next day delivery or same day collection (Lutterworth, Leicestershire).
This sleek cable allows you to extend the lighting cable attached to a multi-output cabinet LED driver module. Please get in touch if you require any support with additional extension cable.
Features & Benefits
4x Male/Female output extension cables supplied
Smaller sleeker design than other 2M extension cables for a tidier fitout.
This 2M lighting extension cable is used to achieve a longer run from your light source to your driver.
These extension cables can also be joined together to create even longer lengths to your lights.
We supply various LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
A 2M (2000mm) extension cable with plug and play female (input) and male (output) micro connectors that works with our cabinet LED driver range.
A 2M (2000mm) extension cable with plug and play *input micro connector that works with our cabinet LED driver range.
Features & Benefits
1x input cable with male micro connector one end and bare wires the other end.
Smaller sleeker design than other 2M cables for a tidier fitout.
We supply various LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
Plugs into multi-output style cabinet LED driver system. Ideal for DIY or professional kitchen, walk-wardrobes, cabinet or shelving installations.
RGBW COB LED Strip Light.
*Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure seamless "no dot" (when placed within any aluminium channel / LED profile) RGBW LED strip light solution.
Create a colour changing light line that's seamless on the eye. Ideal for architectural light lines, media units, undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGBW colour changing (5 wire) LED Strip LightSolder Cable to RGBW colour changing (5 wire) LED Strip Light
Colour Temperatures
This strip offers a dedicated 3000K warm white / 4000K neutral white / 6000K cool white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "no dot" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+4000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 896LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K)
Lumens/w: N/A
CRI: >90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 20W (19.2 actual)
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 31.2mm
Cable: 5 core flat cable (20 AWG)
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll (As standard)
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
POWERUP 60W Constant Voltage Furniture LED Driver (24V)
Note: This driver requires a UK/Euro/US C7 Mains lead.This 60W cabinet LED driver can power 24V LED products including no dot LED strip lights. The value innovation comes when combined with our 1UP (GO) 6CH LED control box that allows for 6 output LED control and syncronous dimming via a single channel remote handset. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Compatible system products
6 Way Controller Receiver: 6CH Single Colour Wifi Connectable Controller Receiver (12V-24V)Remote Handset: Single Colour Remote Control 4 Zone (Black)
Outputs
Single output
6 outputs for LED accessories when combined with 1UP (GO) or 2UP wireless LED control boxes (allows for remote handset / phone app control). Ideal for cabinet shelves or kitchen feature lighting.
Features
100-240VAT Input
Single channel (1) constant voltage output, Maximum total output 60W
Ultra slimline design, light weight and high efficiency
Over-load / Short circuit protection
Suited for indoor (internal) LED lighting applications
5 Year, 50,000 hour warranty as standard
Applications
Cabinets, Shelves, Walkin-wardrobes, Integrated Light lines, Undercabinet Lighting
Coving, Architectural features,
Residential - Kitchens, Bedrooms, Conservatories, Home AV, Media Units,
Commercial - Retail, window displays, Hotel, lobbies, conference rooms,
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18mm depth for hidden installation. 164mm x 55mm x 18mm
Wiring
Mains > UK Mains Plug to C7 connector > PWR-UP-60-24
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V COB LED strip lights, marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (54W) to build in a safety buffer.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create an easy, fast setup for any environment. Just click and connect this plug and play system to create stunning, continuous LED light aesthetics.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Specifications
General
Product Type: Constant voltage furniture LED driver
IP Rating: IP20
Brand: POWERUP
Electrical
Power Range: 18W-60W
Input Voltage: 200-240V
Output Voltage: 24V +/- 5%
AC Input Current: 0.36A
Wattage: 60W
Voltage: 24V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch / Wood Sensor (Hidden sensor)
Dimensions
Width: 55mm
Height: 18mm
Length: 164mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A white cob led tape light that offers seamless "dot free" light throughout the strip. This provides a spot free "no dotting" impression when placed within a groove, channel or aluminium LED profile. Just 9W per meter with a 2700K / 3000K / 4000K / 6000K temperature, it's ideal for kitchen features, pull-out drawers, countertop grooves, media units, cabinets or shelves and bedrooms and bathrooms.
Here's what customers have to say
--
"Spot Free" COB LED Tape 9W/M IP65 (Splash Proof)
*Priced per length. Commercial grade quality with the latest in integrated LED technology. Ideal for both commercial and domestic applications.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise LED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 9W/M offering excellent efficiency and upto a respectable 525 lumens per meter output (6K cool). 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 9mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade San'an LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless Dot Free LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP65 Heat Shrink (splash proof)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 525lm/m
Lumens/w: 105lm/W
High CRI: 90+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W (based on 5M run length).
Input Voltage: 12v DC
Current (A): 0.75A/m*5M Length Supply
Cable in: 500mm 2 core with micro connector (as standard)
Cable out: 500mm 2 core with micro connector (as standard)*Custom Length Supply
Cable in: 500mm 2 core with micro connector (as standard)
Cable out: N/A
Dimensions
Width: 9mm
Height: 2mm
Length: 5m (as standard) / Selected length.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years (back to base)Note: any custom made strip defaults to a 1 year warranty (back to base).
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 9mm and will fit into all LED profiles with an inside width of 9mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
This black finished double door sensor offers simple on/off illumination when dual cabinet doors are opened and shut. Complete with two individual sensors for individual door sensing.
--
*In Stock UK - 12V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Black)
12V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Individual output dimming)
This double sensor switch consists of two inductive sensors which are can be switched on or off, without the need for a physical switch. It connects directly to an individual output of our 12V Cabinet LED driver range. Rated for either 12V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications
What is the operation of this 12V DC double sensor switch for cabinet/wardrobe doors?
The operation is simple, each sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number: DDS-2C-B
Product Type: 12V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Connection
Sensors: x2 Black Micro Sensors
Head Cable Distance: 1.5M - 3 Pin Connector > 110mm 3 core flat cable > Central Processor > x1 500mm Male Connector / x1 500mm Female Connector
Product Type: 12V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Electrical
Voltage: 12V DC
Max Output Current: 5A
Maximum Power: 60W (12V)
Design
Material: PVC plastic
Finish: Black
Dimensions
Outer Flange: Ø 12 mm
Cutout: Ø 10-11 mm
Depth: 11mm
Installation
Mounting: Surface mount, x2 screws for sensor holders. Slip in/out. Or cutout hole mount.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: Plastic bag
Net Weight: 90
UHD RGBW COB LED Tape. Redefining light.
The best "No Dot" RGBW LED tape on the market, it's lighting redefined. *Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure colour changing spot free light lines (when placed within any aluminium channel / LED profile) RGBW LED strip light solution.Create an ultra high definition "tron" style neon LED light line. Perfect for the tech enthusiast wanting to showcase state of the art kitchen cabinets, work tops and furnishings. The ideal complement to trending Anthracite style designs in cuboard, cabinets or walk-in wardrobes.
Wiring Diagram & Best Practises
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Vienna No Dot RGBW Kits - It's Seamless Lighting Made Simple
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Contact us for a fast quote today. We aim to quote within 1 hour. Feel free to call on 0116 406 2959, email at sales@upriseled.com or contact us for super fast response on WhatsApp: 07957 180 481.
Colour Temperatures
First and foremost this WRGB strip offers a dedicated 3000K warm white / 4000K neutral white / 6000K cool white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "spotless" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>90.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our UHD (Ultra High Definition) RGBW COB LED strip lights come equipped 1132 micro LEDs per meter offering a no spotting appearance. When used in conjunction with our extruded aluminium channels, generally known as LED profiles, you get a truly "seamless" effect. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Feed In Cable Tails
Uprise can solder any length of 5 core flat cable to your UHD RGBW seamless LED strip light. Simply let us know your project application and we'll advise the best way to achieve your desired result.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+4000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 1132LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K)
Lumens/w: N/A
CRI: >90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 20W (19.6 actual)
Input Voltage: 24V
Current (A): N/A
Cable in: 200mm 2 core (as standard)
Cable out: N/A
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 22.5mm
Cable: 5 core flat cable (20 AWG)
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll within antistatic silver bag (typical)
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A white cob led tape light that offers seamless light throughout the strip. This provides a spot free "no dotting" impression within a groove, channel or aluminium LED profile. Just 9W per meter with a 2700K / 3000K / 4000K / 6000K temperature, it's ideal for kitchen features, pull-out drawers, countertop grooves, media units, cabinets or shelves and bedrooms and bathrooms.
Here's what customers have to say
--
"No Dot" COB LED Tape 9W/M (5M) IP20
*Priced per length. Enterprise class quality with the latest in integrated LED technology. Ideal for both commercial and domestic applications.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise LED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 9 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 9W/M offering excellent efficiency and upto a respectable 525 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 10mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade San'an LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal) / IP65 Heat Shrink (splash proof)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 525lm/m
Lumens/w: 105lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W (based on 5M run length).
Input Voltage: 12v DC
Current (A): 0.42A/m
Cable in: 500mm 2 core (as standard)
Cable out: N/A
Dimensions
Width: 8mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
A 22AWG 5 core flat Black/Green/Red/Blue/White copper cable length. Available in 1M / 2M / 3M / 5M / 25M / 50M / 100M lengths. For custom lengths please call 0116 406 2959 or email us at sales@upriseled.com. In stock for next day delivery.Ideal for extending the cable tail of any of our RGBW seamless or standard LED tape lengths to 2M (2000mm). Cut to length with bare ends revealed ready for connection.
