36W 5 Output Undercabinet LED Driver 12V
*Includes x1 black coloured 1M (1000mm) UK mains plug to C7 kettle lead.
This 5 output, slimline undercabinet led lighting driver by Uprise offers quick and simple setup for single colour spot lights, furniture lights & LED tape lights. Ideal for areas where space is limited and a thin 12V LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 12V LED products / LED strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 5 micro connectable outputs you can easily run 5 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This under-cabinet kitchen LED driver is rated at 36W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 147mm x 56mm x 18mm
Wiring
5 way distributor outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 12V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 36W - 10% (32.4W) to build in a safety buffer.
Application
A thin and functional multi-port LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 56mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 12V 24W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 5 output cabinet LED driver (5 way distributor ports built in)
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 32W-36W
Input Voltage: 200-240V
Output Voltage: 12V +/- 5%
AC Input Current: 0.36A
3A Port: 5
Outputs: x5 micro connectors (5-port micro plug connector)
Wattage: 36W
Voltage: 12V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 56mm
Height: 18mm
Length: 147mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V 2 core single colour LED tape strip or 12V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call / WhatsApp us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
This pack comes complete with multiple pcs (depending on selection) micro corner LED aluminium profiles designed for surface mount applications. This corner profile is ideal for cabinetry, shelf detailing and walk-in wardrobes where an angled aesthetic light visual is desired. Works perfectly with 4mm Seamless COB LED tape lights.
It comes complete with plastic end caps and metal fix clips. Supplied with a professional semi-clear diffuser.Micro Corner (Quadrant) LED Profile Product Data Sheets
8MM_Black_Micro_Corner_LED_Profile_DATASHEET8MM_Silver_Micro_Corner_LED_Profile_DATASHEET
The dimensions are 8mm wide x 8mm high. The internal width for mounting an LED strip is <5mm. Standard lengths are available in 0.6M, 1.2M, 1.8M, 2.4M. For 1.8M and 2.4M lengths an XL shipping service must be booked on. Please get in touch on 07957 180 481 or email us at sales@upriseled.com
Product Videos
[VIDEO] Dimensions of 8mm Silver Micro Corner LED Profile
[VIDEO] 4mm 27K COB LED Strip Within Black & Silver Micro Corner Profiles[VIDEO] 4mm 30K COB LED Strip Within Black & Silver Micro Corner Profiles[VIDEO] Why 35K soft white 4mm COB LED strips are great for fashion[VIDEO] 4mm 40K COB LED Strip Within Black & Silver Micro Corner Profiles[VIDEO] 4mm 50K COB LED Strip Within Black & Silver Micro Corner Profiles[VIDEO] 4mm 65K COB LED Strip Within Black & Silver Micro Corner Profiles
Specifications
Product type: Micro
Compatible with: Suitable for LED tape width :<5mm
Material: Aluminum
End Caps: Plastic
Fix Clips: Metal
Finish: Silver/Black
PC Cover: Diffused/Milk optional
Width: 8mm
Internal Width: 5mm
Height: 8mm
Length: 0.6M/1.2M/1.8M/2.4M
Warranty: 5 Year Warranty
Questions & Answers
Q) Which LED strip light should I put inside this corner LED profile?
A) For the absolute best spot free visual effect we recommend using our 4mm seamless "no dot" LED strip. Which is available in 2700K warmer white, 3000K warm, 3500K soft, 4000K neutral, 5000K cool and 6500K cooler white.
Q) Can this profile be cut to precision lengths, what's the best way to do this?
A) Due to the small size profile the aluminium metal base and semi-opaque diffuser can be cut with a hacksaw easily.
Q) What is the best fixing method for this mini corner profile?
A) There are three main ways of fixing this micro corner profile.
1) drill and small screws, this will create a secure fixing for most surface materials. It will result in a slight bump for the LED strip which won't be noticeable if the LED is a 4mm "no dot" seamless COB LED strip.
2) For upwards facing positioning (laid down shining upwards) or vertical positioning (lengthwise down a wall or surface) strong double sided 3M backing tape will work. For upside down (facing downwards under a shelf) due to gravity we strongly advise using screws or alternatively a strong tape adhesion combined with silicone or super glue depending on the surface material.
3) Using the metal clips provided. We think this option is the least workable solution for "permanent" installations as it looks unsightly. However this is a good option for indirect integrations where the clips would not be seen, i.e in an unseen channel or cove. Or popup event / exhibition styles projects for short term use due to easy dismount and reusability.
Q) Does this corner profile include accessories?
A) Yes we've bundled the associated semi-diffuser (light cover) along with metal mount clips and diffusers?
Q) What is the best way to mount this aluminium micro corner profile within a cabinet?
A) If you are looking to position this profile on the underside of a shelf facing downwards we recommend small secure screws. As long as you are using this micro corner LED profile in conjunction with seamless "no dotting" 4mm COB LED strip lights you won't see any hot spotting despite slight bumping due to the screws. Alternatively you can use a recessed screw leaving a flat surface the LED to be mounted to. WARNING: It's important to ensure there are no serrated edges or sharp aluminium pieces left on the profile as this can short circuit the LED strip. Please ensure a smooth surface prior to sticking LED tape down.
Q) What mounting and positioning options are available for this type of profile?
A) There are two mains uses for this type of profile as follows:
1) Two surface illumination + Direct visual light line aesthetic. This is where the profile is mounted top or bottom of a cabinet, the result is the light beam spreading across the bottom/top & backwall surface along with a visual seamless lighting line aesthetic.
2) Indirect angled beam. You'd round an 8mm hole and place this angled at the desired surface. It focuses the light at a specific angle to maximise light cover. A good example of this is within a walk-in wardrobe angling the light backwards to illuminate the clothes better.
Q) What are the dimensions of this profile?
A) 8mm wide by 8mm high by either 0.6M / 1.2M / 1.8M / 2.4M long.
Q) What length are these profiles available in?
A) Lengths available include: 0.6M (600mm), 1.2M (1200mm), 1.8M (1800mm) and 2.4M (2400mm)
Further applications include retail displays, fashion displays for shoes & accessories, ceiling features, picture frame surrounds, super yacht detailing, media walls, light posts, thin visual light lines and more.
Q) I can see this comes in Black & Silver, is it available in white or brass?
A) We have UK stock available on a 1-2 day turnaround delivery in both Black & Silver. White is potentially available on request. Please note due to the "corner" style nature of this profile you don't really see visible edge of the profile unless up close. The seamless LED strip will also remove focus due to light effect.
A non-rewireable, fully encased moulded power lead.
Mains/battery powered equipment connection lead
Plug has integral 3A fuse
Manufactured from 0.5mm² approved, 2-core cable
Rated 240V, 3A
Connector to Connector: Mains Plug, UK to IEC 60320 C7
Connector Type A: Mains Plug, UK
Connector Type B: IEC 60320 C7 (Figure 8)
Current Rating: 3A
Cable Length - Metric: 3m
Voltage Rating: 240VAC
Jacket Colour: Black
Cable Length - Imperial: 9.84ft
WA-5UP Product Sheet.pdf
A simple to setup wireless 5 channel LED controller-receiver. It works with every type of 12V / 24V LED tape light or LED light source.This product is also compatible with a 5CH remote handset, touch wall panel controller and smart phone app (Tuya). To control from a smart device simply download the Tuya app, connect your RGBTW LED tape lights and create a colourful dream scene for your space.Complete with 5 year warranty for solution peace of mind.
--
Smart Wifi 5-Channel CCT & RGBTW LED Strip Controller (12V-24V)
Features
Alexa and Google Assistant Compatible
Control via Smart Device via Tuya App
DIM, Smart Dual-White (CCT), RGBCW (RGB+CCT) 4 in 1 constant voltage LED controller. 4A per channel, 5 channels output.
Download Tuya Smart application and control from mobile wirelessly
Voice command control via Tuya app.
Control single colour, tuneable white (CCT), RGB, RGBW, RGBCW and RGB+CCT LED lighting
WiFi and 2.4GHz Compatibility
Setup
Compatible with Tuya application for simple wireless control via mobile or tablet device. Download for installation support.
Specifications
General
Part Number: WA-5UP
Product Type: Wifi 5CH LED Controller / Receiver
IP Rating: IP20
Brand: Uprise
Input & Output
Input Voltage: 12-24VDC
Input Current: 15.5A
Output Voltage: 5 x (12-24)VDC
Output Current: 5CH,3A/CH
Output Power: 5 x (36-72)W
Output type: Constant Voltage
Dimming Data
Input Signal: Tuya APP + RF 2.4GHz
Control distance: 30m(Barrier-free space)
Dimming Grayscale: 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 1000Hz (default)
Safety & EMC
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4
Safety standard(LVD): EN 62368-1:2020+A11:2020
Radio Equipment(RED): ETSI EN 300 328 V2.2.2
Certification: CE,EMC,LVD,RED
Environment
Operation temperature: Ta: -30 O C ~ +55 O C
Case temperature (Max.): T c:+85 O C
IP rating: IP20
Warranty & Protection
Warranty: 5 Years
Protection: Reverse polarity Over-heat Short circuit
Mobile Application
Required Application: Tuya Smart App
Dimensions
Width: 38mm
Height: 20mm
Length: 114mm
Installation
Mounting: x2 Screws
Packaging
Size: L120 x W43 x H35mm
Packaging: White cardboard box
Net Weight: 65g
System Parameters
The max power is 15A, the controller can support around (12*15=180W or 24*15=360W)
Generally speaking, our controller is suitable for up to 10m led strip per controller without brightness degradation. If you connect up to 20m to 25m, the brightness will be affected unless strip is powered at both ends.
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V/24V single colour, RGB, RGBW LED tape lights or RGBTW LED strips including our latest generation No Dot RGBW LED strip light. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
This 2 colour (CCT dual white) LED controller receiver operates a 2 wire dual white CCT LED strip. This means it can offer white varities (2700K-6000K) off just 2 wires (2 core).
--
V2-S 2 Colour Single Channel LED Controller Receiver (12V-24V)
Features
Only applies to 2 wire WW+CW LED strips
Matches with an RF 2.4G single zone or multiple dual colour remote.
One RF controller can accept upto 10 remote controllers
4096 levels of 0-100% dimming offers smooth results without any flashes or blips.
Auto-transmitting function. Controller automatically transmits a signal to another controller within 30M of control distance.
Syncronises with a multiple number of other controllers.
3 levels of colour temperature (WW, NW and CW) selectable by continuous power off and on operation.
Connect with a further push switch to achieve on / off and 0-100% dimming function.
Setup
Compatible with Tuya application for simple wireless control via mobile or tablet device. Download for installation support.
Technical Parameters
Input and Output
Input Voltage: 12-24VDC
Input Current: 5.1A
Output Voltage: 12-24VDC
Output Current: 5A
Output Power: 60-120W
Output Type: Constant Voltage
Environment
Operation Temperature: Ta: -30°C ~ +55°C
Case temperature (Max.): Tc: +85°C
IP Rating: IP20
Dimming Data
Input Signal: RF 2.4GHz + Push Dim
Control Distance: 30M (barrier free space, no obstacle path)
Dimming Gray Scale: 256 Levels
Dimming Range: 0-100%
Dimming Curve: Linear
PWM Frequency: 500Hz
Safety and EMC
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3ETSI EN 301 489-17 V3.2.4
Safety Standard (LVD): EN 62368-1: 2020+A11:2020
Radio Equipment (RED): ETSI EN 300 328 V2.2.2
Certification: CE, EMC, LVD, RED
Warranty & Protection
Warranty: 3 Years (5 year extended warranty available).
Protection: Reverse polarity Over-heat Short circuit
Weight
Net Weight: 0.053kg
Gross Weight: 0.066kg
Dimensions
Width: 38mm
Height: 20mm
Length: 114mm
Installation
Mounting: x2 Screws
Packaging
Packaging: White cardboard box
Net Weight: 65g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V/24V single colour, RGB, RGBW LED tape lights or RGBTW LED strips including our latest generation No Dot RGBW LED strip light. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*Priced per meter.
A super slim white 5mm cob led tape light that offers seamless light throughout the strip. Using the highest grade, latest generation micro LED chips this professional COB LED tape light is ideal for bespoke kitchens, furniture lighting and media unit integration. This ultra energy efficient strip is just 7-watt per meter. This comes in 3000K warm white or choose from 4000K neutral / 6500K cool white temperatures. It's ideal for tight grooves, cabinet displays or shelving units. Complete with hand soldered pre- 2M tail for plug & play connection our our range of 12V cabinet LED drivers. Save time from project start of spec to long-term satisfaction.
How to connect COB LED tape lights simply.
--
Seamless PRO COB LED Tape 7W per meter (5M) IP20
Supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
This precision engineered 12V COB LED tape strip is just 7W/M offering excellent efficiency and upto 700 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 3000K warm, 4000K neutral and 6500K cool.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 5mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (7W/M)
Colour: Warm White (3000K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 450-550lm/m
Lumens/w: 72lm/W
High CRI: 90+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 7W
Input Voltage: 12v DC
Current (A): 0.58A/m
Cable in: 2000mm 2 core with micro connector (as standard) for seamless installation with our professional cabinet LED drivers & sensor range.
Cable out: 200mm 2 core (as standard)
Dimensions
Width: 5mm
Height: 2mm
Length: 5m (as standard), available in bespoke custom cut to lengths, call us on 0116 406 2959, email us at sales@upriseled.com or send us a project request on 07957 180 481.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: Strong adhesive backing tape (blue)
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.

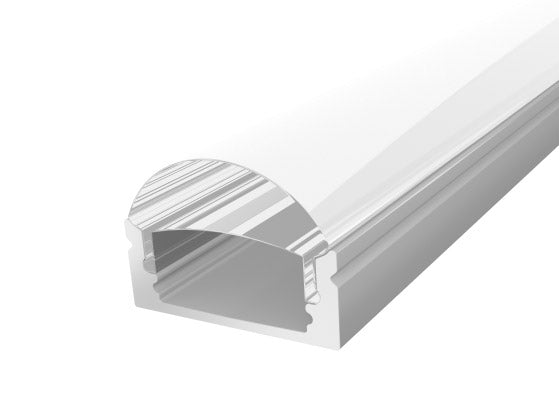

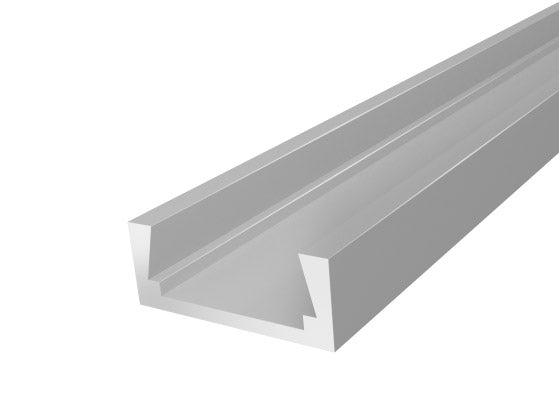

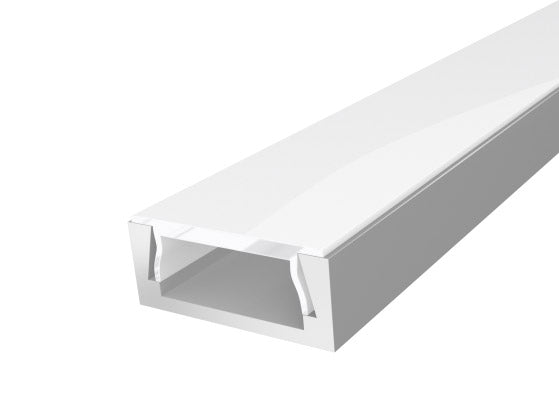

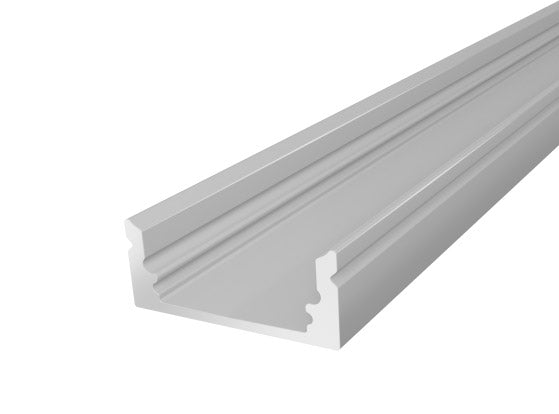

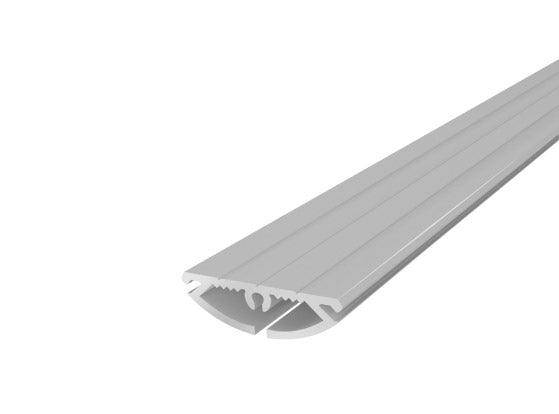

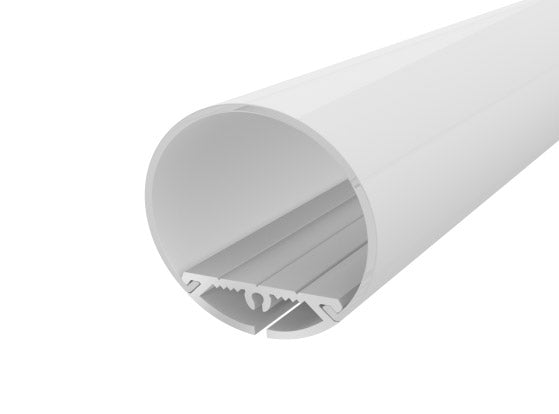

What aluminium LED extrusions can I fit this into?
This product is 5mm and will fit into all LED profiles with an inside width of 5mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
60W 7 Output Cabinet Display LED Driver 24V
Note: This driver requires a UK/Euro/US C7 Mains lead.This 7 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 60W capacity and 7 micro connectors upto x6 24V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 7 micro connectable outputs you can easily run 7 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 204mm x 56mm x 18.5mm
Wiring
7 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (54W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 4mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with IP20 rating are perfect for inside applications.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this PowerUp 100W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 7 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-60W
Input Voltage: 200-240V
Output Voltage: 24V +/- 5%
AC Input Current: 0.36A
3A Port: 7
5A Port: 1
Outputs: x7 micro connectors
Wattage: 60W
Voltage: 24V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
60W 7 Output Cabinet Display LED Driver 12V
Note: This driver requires a UK/Euro/US C7 Mains lead.This 7 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 60W capacity and 7 micro connectors upto x7 12V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 7 micro connectable outputs you can easily run 7 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 204mm x 56mm x 18.5mm
Wiring
7 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 12V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (54W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 4mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with IP20 rating are perfect for inside applications.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this PowerUp 100W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 7 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-60W
Input Voltage: 200-240V
Output Voltage: 12V +/- 5%
AC Input Current: 0.36A
3A Port: 7
5A Port: 1
Outputs: x7 micro connectors
Wattage: 60W
Voltage: 12V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V 2 core single colour LED tape strip or 12V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
24W 5 Output Cabinet Display LED Driver 24V
*Includes x1 black coloured 2M (2000mm) UK mains plug to C7 kettle lead.
This 5 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 24V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 5 micro connectable outputs you can easily run 5 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 24W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 136mm x 54mm x 18.5mm
Wiring
5 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 24W - 10% (21.6W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 54mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 24V 24W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 5 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-24W
Input Voltage: 200-240V
Output Voltage: 24V +/- 5%
AC Input Current: 0.36A
3A Port: 5
Outputs: x5 micro connectors
Wattage: 24W
Voltage: 24V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
60W 7 Output Cabinet Display LED Driver 24V
*Includes x1 black coloured 2M (2000mm) UK mains plug to C7 kettle lead.
This 7 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 60W capacity and 7 micro connectors upto x6 24V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 7 micro connectable outputs you can easily run 7 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 204mm x 56mm x 18.5mm
Wiring
7 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (54W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 4mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with IP20 rating are perfect for inside applications.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this PowerUp 100W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 7 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-60W
Input Voltage: 200-240V
Output Voltage: 24V +/- 5%
AC Input Current: 0.36A
3A Port: 7
5A Port: 1
Outputs: x7 micro connectors
Wattage: 60W
Voltage: 24V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A non-rewireable, fully encased moulded power lead.
Mains/battery powered equipment connection lead
Plug has integral 3A fuse
Manufactured from 0.5mm² approved, 2-core cable
Rated 240V, 3A
Connector to Connector: Mains Plug, UK to IEC 60320 C7
Connector Type A: Mains Plug, UK
Connector Type B: IEC 60320 C7 (Figure 8)
Current Rating: 3A
Cable Length - Metric: 2m
Voltage Rating: 240VAC
Jacket Colour: Black
Cable Length - Imperial: 6.6ft
EU / US plugs available on request.
A simple to setup 6M RGBW seamless COB LED tape kit. It includes x2 wireless 5 channel LED controller-receivers, x2 power supplies and a wireless RGBCCT handset remote.
[VIDEO >] 840LED RGBW No Dot COB LED Tape With Wireless 5-Channel Remote
6M Seamless RGBW Kit Breakdown
6M 840LED No Dot RGBW 3000K COB LED Tape with 3M tails both ends. This allows for the strip light to be cut in half at 50mm cut points resulting in two lengths.
x2 5CH Wireless Controller Receiver
x1 Wireless Handset Remote
x2 Power Supplies
Download Tuya app free for "Smart Device" control.
This solution allows for upto 4 zone control via the 5CH remote handset. To control from a smart phone or device simply download the Tuya app, connect your RGBW no dot LED tape lights and create a colourful dream scene for your space.
WT5 Manual.pdf
--
Smart Wifi 5-Channel CCT & RGBTW LED Strip Controller (12V-24V)
Features
Alexa and Google Assistant Compatible
Control via Smart Device via Tuya App
DIM, Smart Dual-White (CCT), RGBCW (RGB+CCT) 4 in 1 constant voltage LED controller. 4A per channel, 5 channels output.
Download Tuya Smart application and control from mobile wirelessly
Voice command control via Tuya app.
Control single colour, tuneable white (CCT), RGB, RGBW, RGBCW and RGB+CCT LED lighting
WiFi and 2.4GHz Compatibility
Setup
Compatible with Tuya application for simple wireless control via mobile or tablet device. Download for installation support.
Quick Kit Breakdown
Part Number: 6M-RGBW3K-COBKIT
Product Type: 6M RGBW (3000K) "no dot" LED tape reel with 3M 5 core flat cable tails each end. x2 Wireless 5CH LED Controller-Receivers, x1 4 zone Remote, x2 60W 24V commercial grade power supplies.
IP Rating: IP20
Brand: Uprise
LED Strip Specifications
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+4000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 840LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K)
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 20W (19.2 actual)
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 33.3mm
Cable: 5 core flat cable (20 AWG)
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
Controller Receiver Technical Parameters
Input & Output
Input Voltage: 12-24VDC (24V Kit)
Input Current: 15.5A
Output Voltage: 5 x (12-24)VDC
Output Current: 5CH,3A/CH
Output Power: 5 x (36-72)W
Output type: Constant Voltage
Dimming Data
Input Signal: Tuya APP + RF 2.4GHz
Control distance: 30m(Barrier-free space)
Dimming Grayscale: 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 1000Hz (default)
Dimming Data
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4
Safety standard(LVD): EN 62368-1:2020+A11:2020
Radio Equipment(RED): ETSI EN 300 328 V2.2.2
Certification: CE,EMC,LVD,RED
Environment
Operation temperature: Ta: -30 O C ~ +55 O C
Case temperature (Max.): T c:+85 O C
IP rating: IP20
Warranty & Protection
Warranty: 5 Years
Protection: Reverse polarity Over-heat Short circuit
Mobile Application
Required Application: Tuya Smart App
Dimensions
Width: 38mm
Height: 20mm
Length: 114mm
Installation
Mounting: x2 Screws
Packaging
Packaging: White cardboard box
Net Weight: 65g
System Parameters
The max power is 15A, the controller can support around (12*15=180W or 24*15=360W)
Generally speaking, our controller is suitable for up to 10m led strip per controller without brightness degradation. If you connect up to 20m to 25m, the brightness will be affected unless strip is powered at both ends.
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V/24V single colour, RGB, RGBW LED tape lights or RGBTW LED strips including our latest generation No Dot RGBW LED strip light. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
controThis wireless 5 channel LED remote handset works with our UP-WT5 smart wireless LED controller receiver. Allowing for simple wireless control over RGB, CCT or RGBWW (RGB + Warm White + Cool White) colour scenes.
Smart Wifi 5-Channel CCT & RGBTW LED Strip Controller (12V-24V)
Features
Wireless control with UP-WT5 LED controller-receiver.
Beautiful aesthetic, sleek modern remote design.
Weighty & durable for long term usage.
Sleek, soft finish for pleasurable touch experience.
4 zone control, set upto 4 controllable lighting zones easily.
Inner RGB wheel for vibrant colours including RGB white mixing (RGB all on)
Outer smart white touch sensitive wheel for CCT dual white colour selection.
Multi-scene selection button for colour scroll, colour fade in/out and warm-cool white scrolling.
Simply tap for brightness up/down.
Includes simple screwable bracket mount for remote resting.
Setup
Compatible with Tuya application for simple wireless control via mobile or tablet device. Download for installation support.
Plays well with
Seamless "No Dot" 840LED/M RGBW COB LED Tape
Quick fit RGBW LED tape kits: 6M 840LED No Dot RGBW 3000K COB LED Tape Kit With Wireless Handset
Specifications
General
Part Number: UP-WT5
Product Type: Wifi 5CH LED Remote Handset
IP Rating: IP20
Brand: Uprise
Electrical
Battery Supply: 2 x triple A batteries (AAA)
Mobile Application
Required Application: Tuya Smart App (works with UP-WT5)
Dimensions
Width: 38mm
Height: 23mm
Length: 124mm
Installation
Bracket Mounting: x2 Screws for mounting remote bracket mount to wall or other surface.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: White cardboard box
Net Weight: 65g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V/24V single colour, RGB, RGBW LED tape lights or RGBTW LED strips. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
60W 7 Output Cabinet Display LED Driver 12V
*Includes x1 white coloured 1M (1000mm) UK mains plug to C7 kettle lead.
This 7 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 60W capacity and 7 micro connectors upto x7 12V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 7 micro connectable outputs you can easily run 7 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 204mm x 56mm x 18.5mm
Wiring
7 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 12V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (54W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 4mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with IP20 rating are perfect for inside applications.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this PowerUp 100W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 7 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-60W
Input Voltage: 200-240V
Output Voltage: 12V +/- 5%
AC Input Current: 0.36A
3A Port: 7
5A Port: 1
Outputs: x7 micro connectors
Wattage: 60W
Voltage: 12V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V 2 core single colour LED tape strip or 12V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A slim silver aluminium extrusion profile designed for surface mounted LED lighting projects. This bendable LED profile produces a smoother light appearance.
It comes with plastic end caps and metal fix clips. Supplied with a professional Semi Clear Diffuser, which helps with the transmission of soft light.
Compatible with LED strip lights that are 13mm wide.
The size is 18mm wide and 5.7mm high. The internal width is 13.5mm. The length of this LED Channel is 2M. Available bespoke cut lengths also include 0.5M/1.5M/2.5M/3M. Constructed with 6063 T5 Aircraft Aluminum, which makes it tough and fit for purpose.
If you would like a custom length please get in touch via phone, text or whatsapp on 07957 180 481 or email us at sales@upriseled.com
Specifications
Product type: Slim Bendable
Compatible with: Suitable for LED tape width :13mm
Material: 6063 T5 Aircraft Aluminum
End Caps: Plastic
Fix Clips: Metal
Finish: Silver
PC Cover: Semi Diffused
Width: 18mm
Internal Width: 13.5mm
Height: 5.7mm
Length: 1M / 2M
Available Cut Lengths: 0.5M/1M/1.5M/2M/2.5M/3M
G.W (Per meter): 0.14KG
Warranty: 5 Year Warranty
A 0.5M (500mm) extension cable with plug and play *input 3 core micro connector (male) and 3 wire bare ends.
Features & Benefits
1x input cable with male micro connector one end and bare wires the other end.
Smaller sleeker design than other 2M cables for a tidier fitout.
We supply various LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
Plugs into multi-output style cabinet LED driver system. Ideal for DIY or professional kitchen, walk-wardrobes, cabinet or shelving installations.
*In stock UK for next day delivery or same day collection (Lutterworth, Leicestershire).
This sleek 2M (2000mm long) 3 core (CCT / Digital Pixel) extension cable allows you to extend the lighting cable attached to our multi-output 3 or 6 output 3 pole LED distributor. Please get in touch if you require any support with additional extension cable.This cable can also be attached to a bare ends 3 core male connector cable.
Features & Benefits
1x 3 wire (3 core) CCT / 5v digital pixel LED feed input cable. Male connector one side with bare 3 core wires the other side.
Smaller sleeker design than other 3 wire 2M extension cables for a tidier fitout.
This 0.5M (500mm) lighting feed cable is used to solder to your dual white (CCT) LED source or digital 5V pixel LED tape / node. It can then be connected to our 3 core 3 way distributor / 6 way distributor boxes allowing multiple light sources to be fed from one power supply.
We supply various LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
Specifications
Cable Thickness: 22AWGLength: 500mm
Connector Type: male plugConnections: 3CTinned: 3mm Cable Style: UL2468Colour: White
Connectivity Examples
Mains > 12V / 24V Power Supply (PSU) > 6 Output 3 Core Distributor > [Male] 0.5M tail soldered to LED source
Mains > 12V / 24V Power Supply (PSU) > 3 Output 3 Core Distributor > [Male] 0.5M tail soldered to LED source
Short Description
A 0.5M (500mm) 3 pole (3 wire) feed cable with male 3 pin connector and 3 wire bare ends. White / Grey dashed flat cable for tidy integration into cabinet displays, kitchen refits and media units.
100W MeanWell Constant Voltage LED Driver
This 100W constant voltage power supply offers a professional, reliable power source for 24V LED lighting products. It's available in standard 24V, 12V along with 5V, 36V and 48V options.
Features
Universal AC Input / Full Range
Isolation class II, no F.G
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
100% full load burn-in test
High reliability, Low cost
Output
24V +/- connection for connection with 24V LED lamps, marker LEDs or LED tape lights.
Power Consumption
100W rated.
Size
Small design at just 22mm depth for hidden installation. 95mm x 45mm x 24mm
Wiring
2 core cable connected to +/- connectors
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our LED power supplies are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 100W - 10% (90W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
IP Rating
This LED supply is fully encapsulated with IP67 level rating.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this 100W super small constant voltage LED driver with a range of our single colour & seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
General
Product Type: Constant Voltage LED driver
IP Rating: IP67 encapsulated
Brand: MeanWell
Electrical
Output Wattage: 100W
Input Voltage: 90~264VAC
Output Voltage: 24V + / - connection
Power Factor: 0.6
Efficiency: 83%
Dimmable Type: No
Safety Standards: Design refer to TUV EN60950-1, EN61347-2-13
Output Voltage Options: Single
Dimensions
Width: 52mm
Height: 37mm
Length: 190mm
Installation
Mounting: x2 Screws at corners
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: White cardboard box
Net Weight: 190g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A 0.15M (150mm) extension cable with plug and play micro connector that works with our cabinet LED driver range.
Features & Benefits
1x 150mm input cable with male micro connector one end and bare wires the other end.
Smaller sleeker connector design than other 150mm cables for a tidier fitout.
We supply various LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
Plugs into multi-output style cabinet LED driver system. Ideal for DIY or professional kitchen, walk-wardrobes, cabinet or shelving installations.
LED tape light cut and soldering service for an 5 core RGBW colour changing IP20 rated non waterproof LED strip. This service includes a cut to size LED tape light with soldered cable or strip to strip connection.
x1 Solder a RGBW colour changing 5 core (5 wire) cable onto a cut to size LED strip or..
x1 Single colour LED strip to LED strip joint connection resulting two strips joined together. This is ideal for a corner joint.
GUIDE: How do I order this soldering service? Let's say you want a 3M and 2M length of tape connected, you can order this service to professionally bridge the strips together.
If you had a rectangle lighting solution in a 3M x 2M x 3M x 2M configuration and wanted a customised FEED cable then you would order x1 of these for every corner joint. There would be x3 corners on this and x1 feed cable, totalling x4 of this service.
PLEASE NOTE: This service is for a single side for two wire solder pads. Please submit your LED tape length size in the notes of your order or email us via sales@upriseled.com to ensure an accurate made to measure solution.
LED tape light cut and soldering service for IP20 rated non waterproof LED strip. This service includes a cut to size LED tape light with soldered cable or strip to strip connection.
x1 Solder a single 2 core (2 wire) cable onto a cut to size LED strip or..
x1 Single colour LED strip to LED strip joint connection resulting two strips joined together. This is ideal for a corner joint.
GUIDE: How do I order this soldering service? Let's say you want a 3M and 2M length of tape connected, you can order this service to professionally bridge the strips together.
If you had a rectangle lighting solution in a 3M x 2M x 3M x 2M configuration and wanted a customised FEED cable then you would order x1 of these for every corner joint. There would be x3 corners on this and x1 feed cable, totalling x4 of this service.
PLEASE NOTE: This service is for a single side for two wire solder pads. Please submit your LED tape length size in the notes of your order or email us via sales@upriseled.com to ensure an accurate made to measure solution.
