24W 5 Output Cabinet Display LED Driver 12V
This 5 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 12V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 5 micro connectable outputs you can easily run 5 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 24W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 136mm x 54mm x 18.5mm
Wiring
5 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 12V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 24W - 10% (21.6W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 54mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 12V 24W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 5 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-24W
Input Voltage: 200-240V
Output Voltage: 12V +/- 5%
AC Input Current: 0.36A
3A Port: 5
Outputs: x5 micro connectors
Wattage: 24W
Voltage: 12V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V 2 core single colour LED tape strip or 12V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Quick Summary

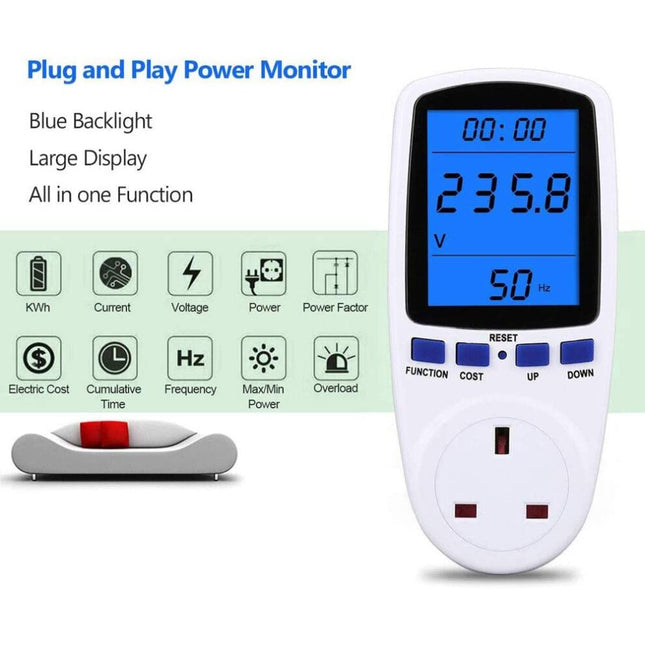

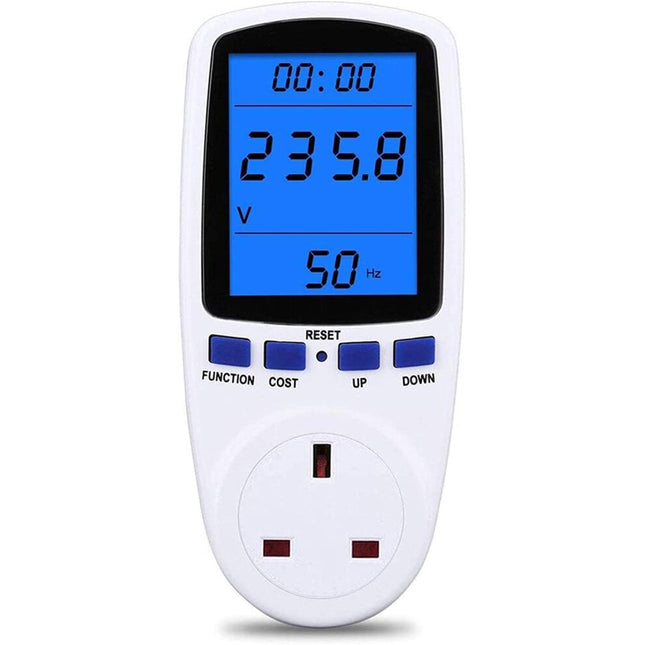

Electrical / Energy Usage Monitor Power Meter Plug with Backlight LCD Display
Includes 7 modes, This energy/electrical power meter measures and displays voltage, current, energy, frequency, power factor, maximum current & power, time days cost and total kWh.
If power exceeds rated power of 3680W this power energy consumption monitor will automatically alert and warn the user. The power plug will simultaneously cut off to prevent from being damaged.
Blue backlight can be turned on and off manually. After a while it will automatially turn off to save on energy, can be woke up. Backlight time is 10 minutes.
UK plug power meter for energy/electrical monitoring.
Energy / Electricity Usage Monitor Power Meter Plug with Backlit LCD Display, consumption analysis for Voltage, Amps, Wattage, KWH.
Multiple Measurement Functions: This power energy meter can measure and display voltage, current, energy, frequency, power factor, maximum current & power, time days cost and total kWh. 7 modes for your choice.
Overload Alarm Function: The power energy consumption monitor will alarm automatically to warn the user when exceeding the rated power 3680W. The power plug will simultaneously cut off to prevent from damaging.
Better Visual Experience: UPDATED VERSION with large and clear LCD display, 360° viewing without dead angle, with backlight function, it is clearly visible whatever day or night. The blue backlight can be turned on/off manually. Press any button to wake up the backlight. Backlight time: 10 minutes.
Automatic Data Storage Function: The last data is stored automatically when the power supply abruptly lose. Don't worry about data loss due to a sudden power outage.
Main Features:1. Electrical parameter measurement functions include (voltage, current, energy, frequency, power factor, maximum current & power, time days cost and total kWh).2. An overload warning function that alerts (over threshold of 3680W alarm will sound, backlight and power booming noise to alert).3. BACKLIGHT function (can be turned off manually).Backlight time: 10 minutes4. Includes a 180° VIEWING ANGLE, easy to read data clearly.5. The energy can be reset.6. Memory function (store data when power off).7. Large-screen LCD (screen dimension: 45mm x 70mm).7 Independent Display Modes:1: Time/Watt/Cost Display2: Time/Cumulative Electrical Quantity Display3: Time/Voltage/Frequency Display4: Time/Current/Power Factor Display5: Time/Minimum Power Display6: Time/Maximal Power Display7: Time/Price DisplaySpecifications:3-pin UK mains plugOperating voltage: 230VACFrequency display: 50HzOperating current: max 13AWide voltage range: 200V-250VWattage display(Watts): 0W-2900WCurrent display(Amps): 0.0A---13.0APrice display range: 0.00 £/kWh---99.99 £/kWhTotal kWh and cost display: 0.000 kWh---9999 kWh, 0.00 £---9999 £Displays volts, amps and watts accurate: 3% Included in package:1 x Power Monitor (UK Plug, updated version)1 x User ManualNotes:By pressing the "COST" button you can switch to Mode 7.Pressing any button will wake up the backlight after it automatically turns off (Backlight time is: 10 minutes)Should there be an abnormal display or no response, please reset the electricity power plug by pressing the RESET button. This should reset the device to normal functionality.
RGBCCT (Colour & 3000K-6000K) COB LED Tape. Beauty in light.
Working on a big or small project that requires custom lengths and expert advise? Send us an email via sales@upriseled.com or Whatsapp us details to 07957 180 481.
Inspired by the teachings of the Dalai Lama, this "no dot" RGBCCT LED strip light is one with everything. Clean whites, vibrants colours and stunning pastels.. Create a full colour, beautiful light line today.*Priced per meter, supplied with 200mm 6 core flat cable as standard. Contact us for made to measure seamless "no dot" (when placed within any aluminium channel / LED profile) RGBCCT LED strip light solution.
Create a beautiful light line that's seamless on the eye. Ideal for routed work tops, undercabinet lighting, within kitchens, accents, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Article – The Definitive Guide to COB LED Strip Lights
Colour Temperatures
It's RGBCCT, that means it R,G,B colour with Warm 3000K & Cool 6000K mixing, providing the most beautiful, full colour, spot free lighting result.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
Light Diffusion
Add this RGB, Dual White (3000K-6000K transitioning) LED strip light to any light channel, LED profile or aluminium extrusion for a truly "no dot" LED lighting result.When mounted within a routed hole via a professional joinery company or woodworker the low depth and make up of this strip offers minimal if any hot spotting at low groove depth. In some instances it can be mounted without an LED extrusion,use best judgement or contact us today to discuss your project.
Choose your length
This true full colour COB LED strip light can be purchased "made to measure" with longer length tails for ease of integration. It can also be purchased in various lengths online.
Application
This flexible RGBCCT COB LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless "no dot" COB RGBCCT LED Tape
Colour: RGBCCT (RGB Colour + 3000K-6000K transitioning)
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 840LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1170LM
Wave Length: R: 620nm, G: 540nm, B: 455nm
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 21W
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: N/A
Dimensions
Width: 12mm
Height: 2.7mm
Length: 5m (as standard)
Installation
Cut points: 35.71mm
Cable: 6 core flat cable (20 AWG)
Mounting: 3M backing tape / VHB backing tape (contact us)
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Update 13-10-22: Wattage changed from 18-watt per meter to 20-watts per meter (19.2W/m actual) to build in tolerances based on new information.- Stephen Watts
*Priced per meter. This flexible, high output RGBW LED tape light uses quality branded LEDs for excellent light performance. 14W/M (Max wattage potential). Typically supplied on a 5M reel (add qty x5), lengths include 100mm tail as standard.
60LED RGBW LED tape light. All in one colour, for fuller light visuals.
This 1-watt (4 in 1) RGBW (3000K) LED strip lighting is a continuous LED light source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED tape, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, emits up to 990 lumens per meter, while drawing only 14 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
RGBW offers all the advantages of RGB colour changing LED tapes with the added dimensions of a dedicated 3000K white chip. Ideal for applications where quality in colour, longevity and brightness is required.
Colour Rendering Index (CRI)
This slim LED ribbon is available in CRI>80.
Brightness (Lumen Output)
Ultra efficient as standard, this radiant LED strip light emits 990 (RGB+3000K) lumens per meter.
Light Diffusion
As standard our LED strips offer a smooth linear effect when illuminating any surface.
Optionally, you can use these LED tapes together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strips light source will be evenly diffused.
Wiring Example
Choose your length
Uprise’s 14-watt LED tape light, like our alternative bendable strip light series, comes in standard 5M reels and may be cut at every 100mm copper pads cut point. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is just 10mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This LED tape is available in IP20, IP65(H), IP65(S) and IP68. Feel free to contact us on 0116 406 2959 or email us via sales@upriseled.com to talk to an expert. We’ll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments
This slim LED tape provides excellent lighting for commercial applications, perfect for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGBW LED Tape
Colour: RGBW (RGB+3000K warm white)
IP Rating: IP20
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 990Lm/m (RGB+3000K)
Lumens/w: 70.71Lm/w (RGB+3000K)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 14W
Input Voltage: 12V
Current (A): 0.8A
Cable in: 100mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 5 Core Flat Cable
Mounting: 3M backing tape / VHB Bonding tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Year Warranty
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Get a fully weather proofed (IP68), light line with zero hot spots.
Best in class for ultra sleek, spot free, weather proof exterior LED light lines.
IP68 casing for water proof / exterior lighting applications
Robust, bendable (top down) and durable.
Completely spotless for a seamless light line
Encased with clear silicone for superior light projection compared to other diffused lighting products such as neon flex.
Ultra thin at just at just 5mm in depth
Just 11mm wide
Ideal for exterior signage and letter illumination (cinemas), pond and water features, decking, architectural and landscaping projects.
Great for bathrooms, showers and kitchen applications where steam or water ingress may be present.
An IP68 fully waterproof white cob led tape light that offers seamless light throughout the strip. 9W per meter with a 2700K / 3000K / 4000K / 6000K temperature. Comes complete with feed in and out water proof connectors. Male/Female connector tails sold separately.
--
Waterproof Spotless Flexible COB LED Tape 9W (5M) IP68
*Priced per meter. Supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 9W/M offering excellent efficiency and upto a respectable 525 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 11mm wide. 12V. 2 core wiring. Includes IP68 rated male and female pig-tail style connectors either end of strip.
Specifications
General
Product Type: IP68 waterproof seamless No Dot LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP68
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 525lm/m
Lumens/w: 105lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W
Input Voltage: 12v DC
Current (A): 0.42A/m
Cable in: 500mm IP68 pigtail (male screw style) 2 core heavy duty cable
Cable out: 500mm IP68 pigtail (female screw style) 2 core heavy duty cable
Dimensions
Width: 11mm
Width (End Caps): 12mm
Height: 5mm
Height (End Caps): 6mm
Length: 5m (as standard), other lengths available and can be made to measure.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: Length as selected. Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 11mm and will fit into all LED profiles with an inside width of 11mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
This simple to connect 2500mm cob led tape kit comes with 24W 5 output plug and play driver, x5 2M cable with micro connectors and x5 COB tape to wire connectors. This allows for an adaptable LED setup within any space where a seamless lighting result is desired.
--
12V 2.5M COB LED Tape Kit With Driver, Click Fit Cables and Connectors
Kit Includes
x1 2.5M (2500mm) 8mm 12V COB LED tape light packed on reel.
x1 24W 12V plug and play cabinet style LED driver
x5 2M (2000mm) micro connector to bare end extension cables. Allows quick connect to supplied driver.
x5 COB LED tape to 2 core cable 10mm wide connectors. These are ideal for connection to custom cut lengths from the 2.5M provided COB LED strip light.Micro Connector-2M-Cable > Connector > COB LED tape length (cut down to size)
x1 2M mains plugs with C7 type connector (plugs directly into cabinet LED driver).
Support
How to connect COB LED tape lights simply.
Specifications
COB LED Tape
Product Type: Seamless No Dot LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 900lm/m
Lumens/w: 80-120lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W
Input Voltage: 12v DC
Current (A): 0.75A/m
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm
Height: 2mm
Length: 2.5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 2.5M Roll as standard.
Net Weight: 152g/Roll
*Please Note: No more than 3 metres of COB LED tape should be connected to a single port. Upto 6 metres can be powered across two ports (powered both ends).
Article - The Definitive Guide to COB LED Strip Lights
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can I cut this COB LED strip to length?
Yes, it can be cut easily at every 25mm indicated cut point. Alternatively we can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
How do I connect an extension cable to the LED tape?
This LED tape kit comes with 10mm wide LED tape to 2 core cable connectors. Simply push the ends of tape into one side of the connector and the 2 core cable into the other. Once both are firmly in place clamp down the metal connection spokes with a pair of plyers. This results in a secure circuit. It's important to ensure the polarity of the + / - are correctly orientated, please check this.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help you get a finished result that lasts.
