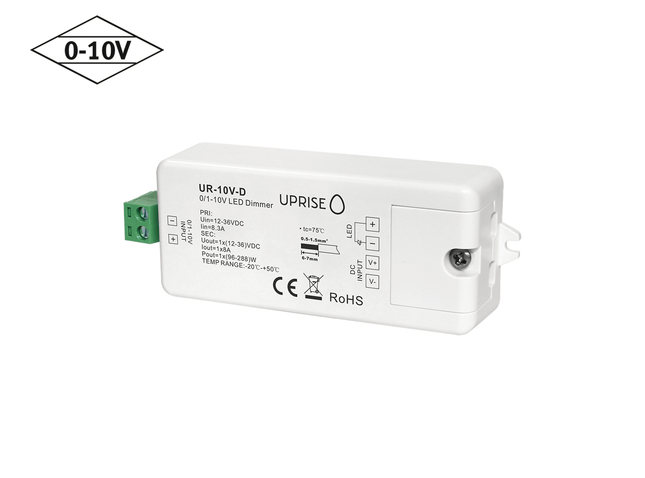

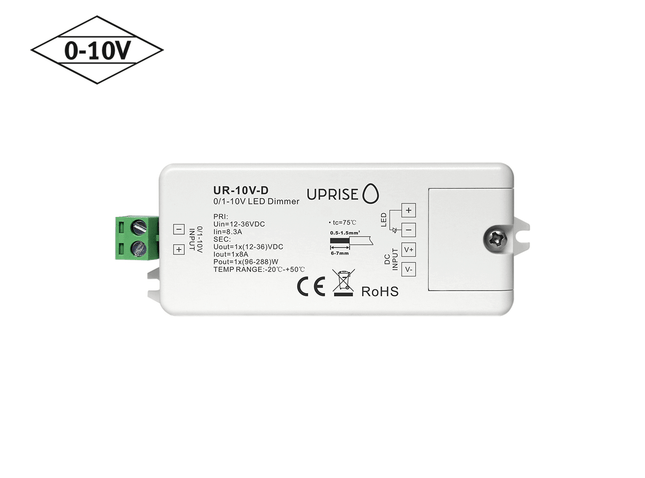

0-10V LED Dimmer (1CH) Constant Voltage
Download UR-10V-D instructions.pdf for installation support.
Features
Miniature style 0-10V LED Dimmer
0-10V LED dimmer that is constant voltage, has 1 channel with an output of 8A per channel. Available in 12V, 24V and 36V.
This analog style dimming driver receives a standard 1-10V dim signal input
A logarithmic dimming range of 0-100% offers a comfortable dimming visual for human eyes.
Single channel 1-10V input with a single channel PWM output
An adjustable LED dimmer offering soft, smooth, flicker free dimming using 256 levels of greyscale
Works well with power repeater allowing practically unlimited expansion
Also compatible with 1-10V dial / push switches / potentiometers
Specifications
General
Part Number: UR-10V-D
Product Type: Single channel (1ch) 0-10V constant voltage LED dimmer
IP Rating: IP20
Brand: Uprise
Electrical
Input Voltage: 12V-36V
Output Current: 1CH, 8A/CH
Output Power: 96-288W
Output Type: Constant Voltage
Product Data
Greyscale: 256 level greyscale
Channels: 1 channel
Flicker: Anti-flicker
Output Data: PWM (Pulse Width Modulation)
Dimming Range: 0%-100%
Dimensions
Width: 33mm
Height: 20mm
Length: 82mm
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This 0-10V LED dimmer is compatible with any 12V, 24V or 36V 2 core single colour LED tape strip or 12V, 24V, 36V LED source such as lamps, battens or marker LEDs. Contact us below for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A 0.5M (500mm) extension cable with plug and play *input 3 core micro connector (male) and 3 wire bare ends.
Features & Benefits
1x input cable with male micro connector one end and bare wires the other end.
Smaller sleeker design than other 2M cables for a tidier fitout.
We supply various LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
Plugs into multi-output style cabinet LED driver system. Ideal for DIY or professional kitchen, walk-wardrobes, cabinet or shelving installations.
*In stock UK for next day delivery or same day collection (Lutterworth, Leicestershire).
This sleek 2M (2000mm long) 3 core (CCT / Digital Pixel) extension cable allows you to extend the lighting cable attached to our multi-output 3 or 6 output 3 pole LED distributor. Please get in touch if you require any support with additional extension cable.This cable can also be attached to a bare ends 3 core male connector cable.
Features & Benefits
1x 3 wire (3 core) CCT / 5v digital pixel LED feed input cable. Male connector one side with bare 3 core wires the other side.
Smaller sleeker design than other 3 wire 2M extension cables for a tidier fitout.
This 0.5M (500mm) lighting feed cable is used to solder to your dual white (CCT) LED source or digital 5V pixel LED tape / node. It can then be connected to our 3 core 3 way distributor / 6 way distributor boxes allowing multiple light sources to be fed from one power supply.
We supply various LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
Specifications
Cable Thickness: 22AWGLength: 500mm
Connector Type: male plugConnections: 3CTinned: 3mm Cable Style: UL2468Colour: White
Connectivity Examples
Mains > 12V / 24V Power Supply (PSU) > 6 Output 3 Core Distributor > [Male] 0.5M tail soldered to LED source
Mains > 12V / 24V Power Supply (PSU) > 3 Output 3 Core Distributor > [Male] 0.5M tail soldered to LED source
Short Description
A 0.5M (500mm) 3 pole (3 wire) feed cable with male 3 pin connector and 3 wire bare ends. White / Grey dashed flat cable for tidy integration into cabinet displays, kitchen refits and media units.
A non-rewireable, fully encased moulded power lead.
Mains/battery powered equipment connection lead
Plug has integral 3A fuse
Manufactured from 0.5mm² approved, 2-core cable
Rated 240V, 3A
Connector to Connector: Mains Plug, UK to IEC 60320 C7
Connector Type A: Mains Plug, UK
Connector Type B: IEC 60320 C7 (Figure 8)
Current Rating: 3A
Cable Length - Metric: 0.5m
Voltage Rating: 240VAC
Jacket Colour: Black
Cable Length - Imperial: 1.64ft
EU / US plugs available on request.
Cabinet LED Drivers Q&A Sheet PDF--100W 6 Output Cabinet Display LED Driver 24V (Includes hand sensor)

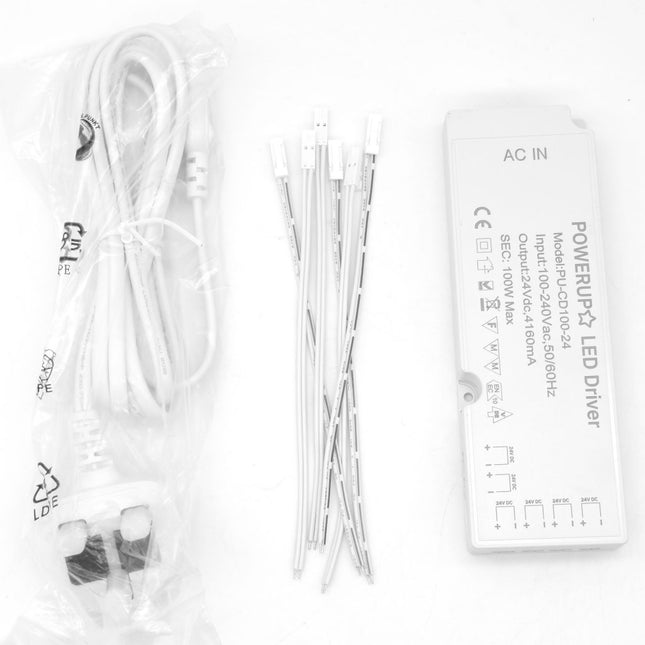

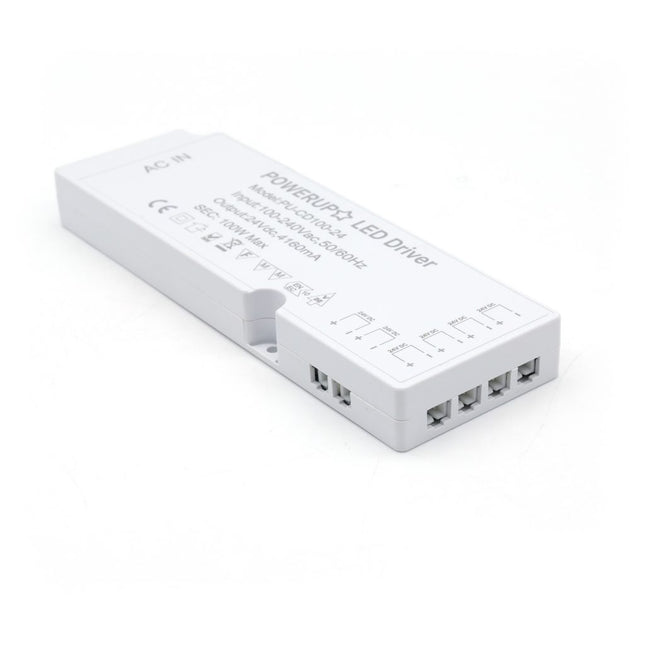

This 6 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 100W capacity and 6 micro connectors upto x6 24V LED products / LED tape strips can be connected effortlessly. Complete with next generation hand wave technology means turning your lighting setup on/off has never been easier.
Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 6 micro connectable outputs you can easily run 6 separate LED areas or shelves.
Hand Sensor
Complete with a detectable hand sensor, turning your lights on/off has never been easier.
Power Consumption
Our PowerUp cabinet display LED PSU is rated at 100W.
Size
Ultra thin design at just 18mm depth for hidden installation. 165mm x 55mm x 18mm
Wiring
6 outputs with DuPoint terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our PowerUP LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 100W - 10% (90W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 4mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with IP20 rating are perfect for inside applications.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this PowerUp 100W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 6 output cabinet LED driver
IP Rating: IP20
Brand: PowerUp
Electrical
Power Range: 18W-100W
Input Voltage: 100-240V
Output Voltage: 24V
Output Current (A): 4.16A
Outputs: x6 micro connectors
Power Factor: 0.6
Efficiency: 83%
Dimensions
Width: 55mm
Height: 18mm
Length: 165mm
Installation
Mounting: x2 Screws
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
100W MeanWell Constant Voltage LED Driver
This 100W constant voltage power supply offers a professional, reliable power source for 24V LED lighting products. It's available in standard 24V, 12V along with 5V, 36V and 48V options.
Features
Universal AC Input / Full Range
Isolation class II, no F.G
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
100% full load burn-in test
High reliability, Low cost
Output
24V +/- connection for connection with 24V LED lamps, marker LEDs or LED tape lights.
Power Consumption
100W rated.
Size
Small design at just 22mm depth for hidden installation. 95mm x 45mm x 24mm
Wiring
2 core cable connected to +/- connectors
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our LED power supplies are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 100W - 10% (90W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
IP Rating
This LED supply is fully encapsulated with IP67 level rating.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this 100W super small constant voltage LED driver with a range of our single colour & seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
General
Product Type: Constant Voltage LED driver
IP Rating: IP67 encapsulated
Brand: MeanWell
Electrical
Output Wattage: 100W
Input Voltage: 90~264VAC
Output Voltage: 24V + / - connection
Power Factor: 0.6
Efficiency: 83%
Dimmable Type: No
Safety Standards: Design refer to TUV EN60950-1, EN61347-2-13
Output Voltage Options: Single
Dimensions
Width: 52mm
Height: 37mm
Length: 190mm
Installation
Mounting: x2 Screws at corners
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: White cardboard box
Net Weight: 190g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
This mini cutting tunable white LED tape allows for perfect cut and fit. Apply within retail window displays, watch & jewellery cabinets. Bright 19W/m, 24V.
10mm bright 6000K cool white LED tape. Seamless lighting made simple.

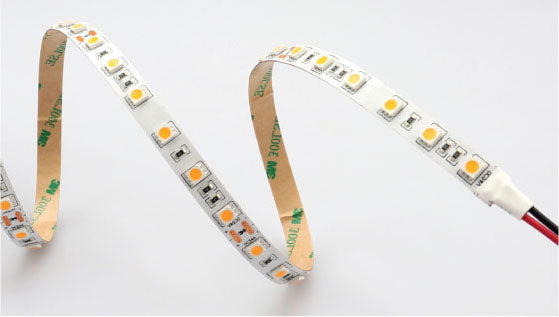

This 14.4 watt bright 6000K white (neutral white) LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality standard, drawing only 14.4 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 14.4-watt per meter LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size. We also have a variety of in stock lengths pre-made for ease of specification.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip light is available in several IP rating options ranging from IP20 at 10mm wide through to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This blisteringly bright LED tape comes with an IP20 rating for internal applications. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
Due to it's high brightness and heat output this strip is ideally suited for outdoor stage blinder strobe lighting applications. Note: These strips should not be left on for long periods of time without adequate heatsink or thermal management.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: 6000K neutral white
IP Rating: IP20 (internal)
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 14.4W
Input Voltage: 24V
Current (A): 0.6A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard), various lengths available.
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: XM Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
8mm 6000K cool white LED tape. Seamless lighting made simple.

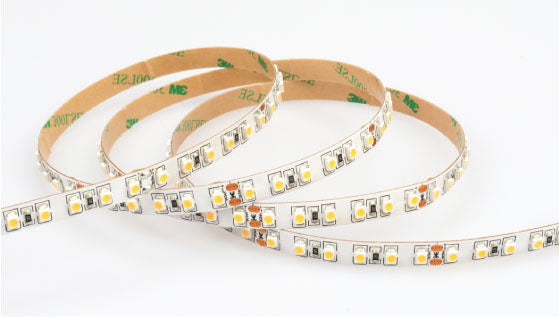

This 9.6 watt 6000K warm white (warmer) LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 120 3528 SMD branded LEDs and is manufactured to a high quality standard, drawing only 9.6 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 9.6-watt LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
This LED strip lights is available in both internal (IP20) and splash proof (IP65) rated options.
IP Rating Options
This bright LED tape comes in either IP20 (internal) or IP65 heat shrink / IP65 silicone gel coating for splash proof, water resistant applications. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
For commercial applications this strip light offers brilliant illumination suited for luxury resorts, restaurants, bars, hotel lobbies and for retail environments and window displays. If there is a need for slimline, bright, long lasting LED tape strips this product is a great consideration for architects, lighting designers, audio visual integrators and electrical professionals alike.
It’s also ideally suited for external residential garden spaces such as decking edge lighting, garden bars and steps as well as living rooms, kitchens and home cinemas.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: 6000K white (cool)
IP Rating: IP20 (internal), IP65 Heat Shrink / IP65 Silicone (splash resistant)
PCB Colour: White
Chip: 3528 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 9.6W
Input Voltage: 24V
Current (A): 0.6A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape / VHB bonding backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*Priced per meter. This flexible, high output RGBW LED tape light uses quality branded LEDs for excellent light performance. 14W/M (Max wattage potential). Typically supplied on a 5M reel (add qty x5), lengths include 100mm tail as standard.
60LED RGBW LED tape light. All in one colour, for fuller light visuals.
This 1-watt (4 in 1) RGBW (3000K) LED strip lighting is a continuous LED light source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED tape, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, emits up to 990 lumens per meter, while drawing only 14 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
RGBW offers all the advantages of RGB colour changing LED tapes with the added dimensions of a dedicated 3000K white chip. Ideal for applications where quality in colour, longevity and brightness is required.
Colour Rendering Index (CRI)
This slim LED ribbon is available in CRI>80.
Brightness (Lumen Output)
Ultra efficient as standard, this radiant LED strip light emits 990 (RGB+3000K) lumens per meter.
Light Diffusion
As standard our LED strips offer a smooth linear effect when illuminating any surface.
Optionally, you can use these LED tapes together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strips light source will be evenly diffused.
Wiring Example
Choose your length
Uprise’s 14-watt LED tape light, like our alternative bendable strip light series, comes in standard 5M reels and may be cut at every 100mm copper pads cut point. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is just 10mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This LED tape is available in IP20, IP65(H), IP65(S) and IP68. Feel free to contact us on 0116 406 2959 or email us via sales@upriseled.com to talk to an expert. We’ll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments
This slim LED tape provides excellent lighting for commercial applications, perfect for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGBW LED Tape
Colour: RGBW (RGB+3000K warm white)
IP Rating: IP20
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 990Lm/m (RGB+3000K)
Lumens/w: 70.71Lm/w (RGB+3000K)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 14W
Input Voltage: 12V
Current (A): 0.8A
Cable in: 100mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 5 Core Flat Cable
Mounting: 3M backing tape / VHB Bonding tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Year Warranty
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*5M Reel. A professional RGB digital LED tape strip that is single pixel addressable. Create beautiful artistic visuals for entertainment, leisure and fitness spin studios. 30LED/M.
*5M Reel. A professional 60 LED per meter RGB digital LED tape light. Pixel programmable, dynamic and versatile, this 18W/M LED strip is ideal for gym spin studios, clubs, bars and for stage backlighting or events. 5V.
This flexible, high output RGB LED tape light uses the highest quality Epistar LEDs for excellent light performance. 15W/M, 5M Reel.
10mm colour changing RGB LED tape. Beautiful colours that set the mood.
This 15-watt RGB LED tape light is a continuous LED lighting source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED ribbon, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, outputs up to 635.13 (RGB) lumens per meter, while consuming only 15 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
Our professional, long lasting RGB colour changing LED tapes are the standard in creating exciting, vibrant shades throughout your space. With millions of emotion inducing colours to choose from you get to set the scene. Ideal for commercial applications where fit and forget is a must.
We also supply RGBW and RGBTW colour changing LED tapes if added white visual effects are desired.
Colour Rendering Index (CRI)
This radiant LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this bright LED ribbon outputs 635.13 (RGB) lumens per meter.
Light Diffusion
When illuminating any surface, our flexible LED strips provide a seamless linear effect as standard. Our LED strips can be used in combination with our aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise’s 15-watt LED tape, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 50mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Simply enter your custom lengths during the online purchasing process, call us, or use our LED project configurator to add UP60-S5050RGB-10MM-15W-12V-5M and obtain an estimate in seconds.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED ribbon is just 10mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is available in the IP20 , IP52 , IP65H , IP65 , IP67 & IP67E versions. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
This LED tape provides excellent lighting for commercial applications, ideal for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGB LED Tape
Colour: RGB
IP Rating: IP20 / IP52 / IP65H / IP65 / IP67 / IP67E
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 635.13Lm/m (RGB)
Lumens/w: 44.11Lm/w (RGB)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 15W
Input Voltage: 12V
Current (A): 1.2A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 4 Core Flat Cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*Supplied on 5M Reel. This individually controllable RGBW (4000K) pixel LED tape offers fluid, exciting effects. Create full colour strobes, flows and pixel patterns easily. 5V
Specifications
Voltage: 5VSupplied Length: 5MWattage: 12W per meterLEDs per meter: 30IC Type: WS2811Cut Points: 33mmLED Spacings: 33mmColour: RGB-NWPCB Colour: WhitePCB Thickness: 2 OunceVoltage drop: 4M trail off (Power both ends)Data Flow: Arrow points away from data/power source.Cable: 3 core flat cableCable Colours: Red +, Black -, Yellow DataCut to length service: Available on request
Wiring Diagram
Our digital RGBW LED strip is a flexible full colour pixel LED strip light. It has amongst the widest range of uses out of all types of flex tape strips. Championing individually addressable pixels that can each be controlled with the widest gamut of colour, full RGBW. This means you can reach the full colour spectrum whilst also having precision control over every single LED. This level of control allows for a wide scope of both colour generation and kinetic visual effects. Animations such as roasting flames, night sky twinkles, sparkles, static and moving gradients along with cross fades, bounces, pulses, comets and even low resolution video to name a few examples.
Uprise's tried and tested digital LED strip is made to a high standard using the best components. We call this pioneer grade. Within the make up of our strip is a diffused LED offering superior colour mixing. Use this strip as a feature light within alcoves, bars, restaurants in the home for kitchen entertaining, lounges for relaxation or even in home cinemas for dramatic effect. Due to the intelligent range of colour our pixel strip is also ideal within custom lights boxes to improve mood and wellbeing. Studies show that introducing smart lighting that mimics the bodies natural circadian rhythm can improve emotional and psychological wellbeing.
Our Digital LED Strip 30 RGBW strip is available in two IP rated types.
IP20 - For internal non waterproof fit outs.
IP65 - For splash proof applications such as bars, clubs or other areas where splashes of water or liquid ingress may be present.
In addition our pixel LED strip comes is available in two PCB paint finishes, white or black.
White - Typical for everyday applications such as in coves, within aluminium profiles or within lights boxes. When in an enclosure white finish helps reflect the light to improve overall brightness and wash out of visual.
Black - This is ideal for areas that are finished in black and the desire is to only see the pixel LEDs. The result? An almost ghost like visual.
Should you require something brighter or a higher definition of pixel LEDs, we have the following products available.
Digital LED Strip RGBW 60 - Our 60LED per meter digitally addressable RGBW LED strip packs a serious punch. Consisting of of twice as many LEDs as our 30LED version it's ideal when you need extra brightness.
Q) Are these digital LED strips pixel mappable?A) Yes these can be pixel mapped via any leading control software.
Q) What is pixel mapping?A) Pixel mapping is when each LED is used as a controllable pixel in a larger grid or matrix. Imagine a lower resolution but bright display. Now imagine that display is a single yet flexible line, that's an addressable pixel LED strip. Pixel LEDs can come in many different product forms including batons, large domes, orbs and even IP rated nodes.
Q) How do I install and program an RGBW digital LED strip?A) Please our installation and setup guide.
Q) What do "channels" mean? I notice you mention each LED uses 4 channels, what does this actually mean?A) A channel is assigned to control different parameters also known as a (personality) of a light. Traditionally this could be a colour, rotation or strobe and have values of 0-255. In our case it's the 4 colours of each individual pixel LED, red, green, blue and white. 4 channel.
Q) What is sACN or Artnet?A) For more information on sACN or Artnet checkout art-net.org.uk
Q) What is DMX?A) DMX stands for digital multiplex. See this article for more information
Q) What is DMX universe 512?A) A DMX universe consists of 512 channels, remember how we answered what channels were before? Well a single universe is made up of 512 channels. This means that 1 dmx universe can control 512/3 (RGB) = 170 RGB pixels or 512/4 (RGBW) = 128 RGBW pixels.
Q) What power supply do I need to run these strips?A) This particular strip is 5v and consumes 12W/M or 60W per 5M supplied reel. You will require a 5V 100W / 200W / 320W or larger power supply.
Q) What controller do I need to control these strips?A) Feel to contact us on 0116 406 2959 to discuss your project needs, we can assist you in bring your ideas to life.
Q) How do I control these lights from my mobile or iPad?A) There are several ways of achieving this and it will depend on the overall goal of your project. Contact us today, we're here to help.
*Supplied on 5M reel. Flexible, cuttable, stickable and colourfully flowable. This bright 60 LED per meter RGBW (4000K) digital LED tape is ideal for creating artistic light visuals. 5V.
*Priced per meter. To order 5M you would add quantity 5, 1M qty 1, 2M qty 2 etc.. Made to measure lengths available on request. A bright white cob led tape light that offers seamless light throughout the strip. 12W per meter with a 2700K / 3000K / 4000K / 6500K temperature, it's ideal for cabinets or shelves. Contact us via sales@upriseled.com or on 0116 406 2959 to discuss your project today.
--
Seamless COB LED Tape 12W IP20
*Priced per meter. Supplied as 5M reel typically (Order x5 qty). Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by Uprise LED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 12 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 12W/M offering excellent efficiency and upto a respectable 1100 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 30,000+ hours of continuous use. 25mm cut points. 10mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (12W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal) / IP65 Heat Shrink (splash proof) (Available on request)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1000-1100lm/m
Lumens/w: 87.5lm/W
High CRI: 90+
Beam angle: 180°
Electrical
LED Wattage (Per meter): 12W
Input Voltage: 12v DC
Current (A): 1A/m
Cable in: 200mm 2 core (as standard)
Cable out: 200mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: Strong adhesive backing tape (Blue)
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
A white 480LED/M cob led tape light that offers seamless light throughout the strip. 5W per meter with a 2700K / 3000K / 4000K / 6000K temperature, it's ideal for cabinets or shelves.
--
Seamless COB LED Tape 5W (5M) IP20
*Priced per meter. Typically supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Seamless cob LED tape by UpriseMED. A revolutionary new PCB design mounted LED strip light with a uniform "micro dot" LED configuration for the most beautiful light line you've ever witnessed. Our 5 watts per meter flexible COB (Chip on-board) LED strip light provides a stunning flow of ambience throughout. Innovative cut of the cloth design means LEDs are closely knitted directly to the PCB substrate. A clever design that offers maximum efficacy and flexibility. This combined with a unique "bubble doming" silicone coating method ensures a stable, reliable solution for professional integrations. Lighting brilliance to put it simply.
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 5W/M offering excellent efficiency and upto a respectable 525 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 10mm wide. 12V. 2 core wiring.
Here at Uprise we aim to provide the utmost value and integrity throughout the entire supply process. From first point of call to happy result. That's why we ensure carefully selected high tolerance components are utilised. This means we've done our due diligence throughout the design and selection process ensuring premium quality throughout. High grade San'an LED chips have been utilised for superior quality in strip longevity and effect.
Specifications
General
Product Type: Seamless No Dot LED Tape (5W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal) / IP65 Heat Shrink (splash proof)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 525lm/m
Lumens/w: 105lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 5W
Input Voltage: 12v DC
Current (A): 0.42A/m
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 5M Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.

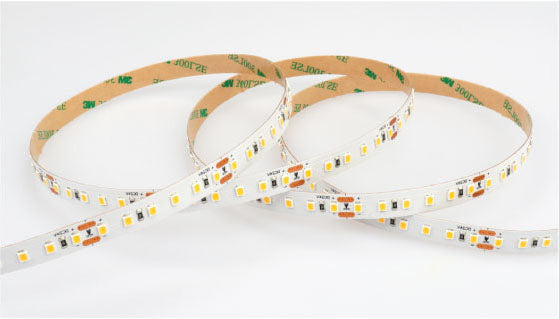

10mm roast warm white ultra bright LED tape. Seamless lighting made simple.
This 24 watt ultra bright 2300K white (roast warm) LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 120 2835 SMD branded LEDs and is manufactured to a high quality standard, drawing only 24 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 24-watt per meter LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size. We also have a variety of in stock lengths pre-made for ease of specification.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. Due to it's high brightness it requires an adequate heat sink for thermal management and is best set to 50% brightness. The benefit is a very bright visual that is built to last as the LEDs are only running at half capacity.
The LED strip light is available in several IP rating options ranging from IP20 at 10mm wide through to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This blisteringly bright LED tape comes with an IP65 heat shrink for splash proof, water resistant applications. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
Due to it's high brightness and heat output this strip is ideally suited for outdoor stage blinder strobe lighting applications. Note: These strips should not be left on for long periods of time without adequate heatsink or thermal management.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: 2300K white (deep roast warm)
IP Rating: IP65 Heat Shrink (splash resistant)
PCB Colour: White
Chip: 2835 SMD
LEDs per meter: 120LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 24W
Input Voltage: 24V
Current (A): 1A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard), various lengths available.
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: XM Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
10mm warmer white ultra bright LED tape. Seamless lighting made simple.
This 24 watt ultra bright 2700K white (roast warm) LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 120 2835 SMD branded LEDs and is manufactured to a high quality standard, drawing only 24 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 24-watt per meter LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size. We also have a variety of in stock lengths pre-made for ease of specification.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. Due to it's high brightness it requires an adequate heat sink for thermal management and is best set to 50% brightness. The benefit is a very bright visual that is built to last as the LEDs are only running at half capacity.
The LED strip light is available in several IP rating options ranging from IP20 at 10mm wide through to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This blisteringly bright LED tape comes with an IP65 heat shrink for splash proof, water resistant applications. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
Due to it's high brightness and heat output this strip is ideally suited for outdoor stage blinder strobe lighting applications. Note: These strips should not be left on for long periods of time without adequate heatsink or thermal management.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: 2700K white (deep roast warm)
IP Rating: IP65 Heat Shrink (splash resistant)
PCB Colour: White
Chip: 2835 SMD
LEDs per meter: 120LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 24W
Input Voltage: 24V
Current (A): 1A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard), various lengths available.
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: XM Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
10mm neutral white ultra bright LED tape. Seamless lighting made simple.
This 24 watt ultra bright 4000K white (neutral white) LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 120 2835 SMD branded LEDs and is manufactured to a high quality standard, drawing only 24 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 24-watt per meter LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size. We also have a variety of in stock lengths pre-made for ease of specification.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip light is available in several IP rating options ranging from IP20 at 10mm wide through to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This blisteringly bright LED tape comes with an IP65 heat shrink for splash proof, water resistant applications. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
Due to it's high brightness and heat output this strip is ideally suited for outdoor stage blinder strobe lighting applications. Note: These strips should not be left on for long periods of time without adequate heatsink or thermal management.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: 4000K neutral white
IP Rating: IP65 Heat Shrink (splash resistant)
PCB Colour: White
Chip: 2835 SMD
LEDs per meter: 120LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 24W
Input Voltage: 24V
Current (A): 1A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard), various lengths available.
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: XM Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Get a fully weather proofed (IP68), light line with zero hot spots.
Best in class for ultra sleek, spot free, weather proof exterior LED light lines.
IP68 casing for water proof / exterior lighting applications
Robust, bendable (top down) and durable.
Completely spotless for a seamless light line
Encased with clear silicone for superior light projection compared to other diffused lighting products such as neon flex.
Ultra thin at just at just 5mm in depth
Just 11mm wide
Ideal for exterior signage and letter illumination (cinemas), pond and water features, decking, architectural and landscaping projects.
Great for bathrooms, showers and kitchen applications where steam or water ingress may be present.
An IP68 fully waterproof white cob led tape light that offers seamless light throughout the strip. 9W per meter with a 2700K / 3000K / 4000K / 6000K temperature. Comes complete with feed in and out water proof connectors. Male/Female connector tails sold separately.
--
Waterproof Spotless Flexible COB LED Tape 9W (5M) IP68
*Priced per meter. Supplied as 5M reel as standard. Enterprise class quality with the latest in integrated LED technology.
Article - The Definitive Guide to COB LED Strip Lights
Wiring Example
Support
How to connect COB LED tape lights simply.
This 12V COB LED tape strip is just 9W/M offering excellent efficiency and upto a respectable 525 lumens per meter output. 480 LEDs per meter allow for a continuous, homogeneous illumination throughout the strip. Available colours include 2700K, 3000K, 4000K, 6000K.
Lifetime expectancy is 50,000 hours of continuous use. 25mm cut points. 11mm wide. 12V. 2 core wiring. Includes IP68 rated male and female pig-tail style connectors either end of strip.
Specifications
General
Product Type: IP68 waterproof seamless No Dot LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP68
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 525lm/m
Lumens/w: 105lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W
Input Voltage: 12v DC
Current (A): 0.42A/m
Cable in: 500mm IP68 pigtail (male screw style) 2 core heavy duty cable
Cable out: 500mm IP68 pigtail (female screw style) 2 core heavy duty cable
Dimensions
Width: 11mm
Width (End Caps): 12mm
Height: 5mm
Height (End Caps): 6mm
Length: 5m (as standard), other lengths available and can be made to measure.
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: Length as selected. Roll as standard.
Net Weight: 152g/Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 11mm and will fit into all LED profiles with an inside width of 11mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help.
This black finished master double door sensor offers simple on/off illumination when dual cabinet doors are opened and shut. It connects to the master output of our 12V cabinet LED driver range.
--

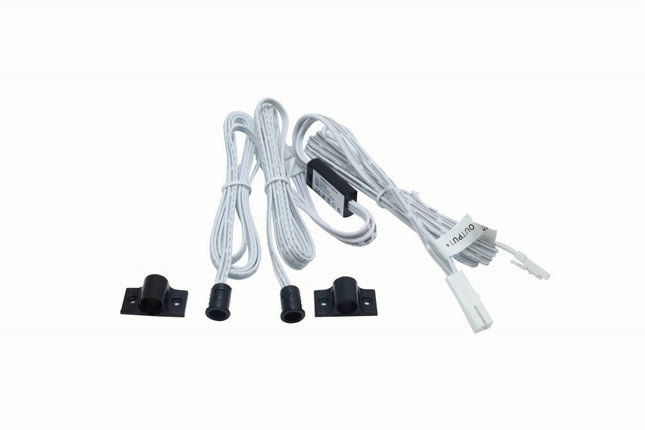

*In Stock UK - 12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Black)
12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (master all outputs dimming)
This double sensor switch consists of two inductive sensors which are can be switched on or off, without the need for a physical switch. It connects directly to a master output of our 12V Cabinet LED driver range. Rated for either 12V/24V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications
What is the operation of this 12/24V DC double sensor switch for cabinet/wardrobe doors?
The operation is simple, each sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V/24V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of 12V Cabinet LED driver and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number:
Product Type: 12/24V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12-24V DC
Max Output Current: 5A
Maximum Power: 60W (12V) 120W (24V)
Design
Material: PVC plastic
Finish: Black
Dimensions
Size: Ø 12 x 13 mm
Cutout: Ø 10 mm
Length: 170mm
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
[VIDEO] What is a 12V-24V LED double door micro sensor?
This black finished double door sensor offers simple on/off illumination when dual cabinet doors are opened and shut. Complete with two individual sensors for individual door sensing.
--
*In Stock UK - 12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Black)
12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Individual output dimming)
This double sensor switch consists of two inductive sensors which are can be switched on or off, without the need for a physical switch. It connects directly to an individual output of our Cabinet LED driver range. Rated for either 12V/24V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications
What is the operation of this 12/24V DC double sensor switch for cabinet/wardrobe doors?
The operation is simple, each sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V/24V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number:
Product Type: 12/24V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12-24V DC
Max Output Current: 5A
Maximum Power: 60W (12V) 120W (24V)
Design
Material: PVC plastic
Finish: Black
Dimensions
Size: Ø 12 x 13 mm
Cutout: Ø 10 mm
Length: 170mm
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
This black finished single door sensor switch offers simple on/off illumination when a single cabinet door is opened and shut. Complete with a single individual sensor for individual door sensing.
--
*In Stock UK - 12/24V DC Single Sensor Switch for Cabinet/Wardrobe Doors (Black)
12/24V DC Single Sensor Switch for Cabinet/Wardrobe Doors (Individual output dimming)
This single sensor switch consists of one inductive sensor which can be switched on or off, without the need for a physical switch. It connects directly to an individual output of our Cabinet LED driver range. It can also be wired in series to a standard 12V/24V power supply. Rated for either 12V/24V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications.
What is the operation of this 12/24V DC single sensor switch for cabinet/wardrobe doors?
The operation is simple, the sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V/24V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number: SDS-2C
Product Type: 5V/12V/24V DC black single sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 5V-24V DC
Max Output Current: 3A
Maximum Power: 60W (12V) 120W (24V)
Detection Range: < 6cm
Design
Material: PVC plastic
Finish: Black
Dimensions
Size: Ø 12 x 13 mm
Outer Flange Size: 10mm
Cutout hole: Ø 8 mm
Cutout Depth: 12mm
Total Length: 13mm
Total tail distance: 2.5M
Sensor Tail length: 1M
Extension Tail: 1.5M (To supply)
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Cutout hole: Ø 8 mm
Cutout Depth: 12mm
Guarantee
Certification: CE, UKCA, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
