This silver double door sensor switch works with 12V/24V LED supplies, LED tape & components. A simple, elegant pair of automatic switches for use in wardrobes, cabinet and displays.
12-24V Double Sensor Switch for Wardrobe or Cabinet Doors PDF--*In Stock UK - 12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Silver)
12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors
This double sensor switch consists of two inductive sensors which are can be switched on or off, without the need for a physical switch. Rated for either 12V/24V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications
What is the operation of this 12/24V DC double sensor switch for cabinet/wardrobe doors?
The operation is simple, each sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V/24V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
12-24V Double Sensor Switch for Wardrobe or Cabinet Doors PDF
Specifications
General
Part Number: UR-ZG-5C4
Product Type: 12/24V DC double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Unbranded
Electrical
Voltage: 12-24V DC
Max Output Current: 5A
Maximum Power: 60W (12V) 120W (24V)
Design
Material: Aluminium - PC
Finish: Silver/Chrome
Dimensions
Size: Ø 12 x 13 mm
Cutout: Ø 10 mm
Length: 170mm
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
A sleek, simple to setup touch dimmer sensor. Includes on/off and touch and hold dimming up and down to control system LED lights. Finished in chrome silver with blue illuminated halo when powered up.
--

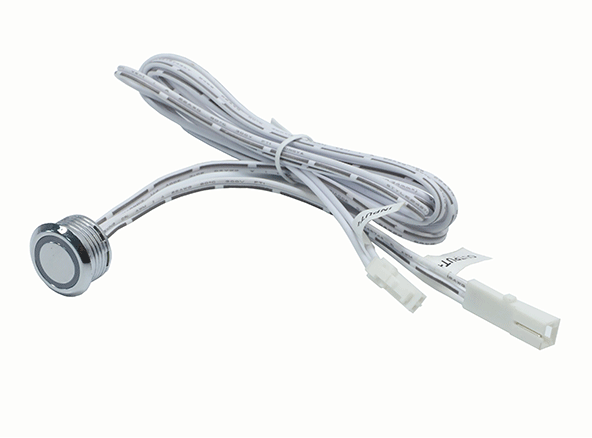

Mini Dimmable Touch Switch Sensor for LED Strips
A touch sensitive on-off micro dimmer switch that is simple to install. Simply click into one of our 12V / 24V plug and play cabinet LED drivers and press for on/off functionality. By gently touching the switch for a few seconds you can dim up/down system connected LED lights. When powered up it emanates with a low key, brilliant blue halo offering a stylish, more complete look.
This ready to connect mini light dimmer is ideal for kitchen cabinet lighting. Simply turn on/off and dim COB LED strip lights, Undercabinet lights and recessed spot lights with ease.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number:
Product Type: 12/24V touch on/off sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: Compatible with 12V-24V
Max Output Current: 5A
Maximum Power: 60W (5A in 12V / 2.5A in 24V)
Design
Material: Aluminium - PC
Finish: Silver/Chrome
Dimensions
Height: 13.5mm excluding cables
Width: 20mm Diameter including rim (outer flange)
Cutout: Ø 17.3 mm
Length: 170mm
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
UHD RGBW COB LED Tape. Redefining light.
The best "No Dot" RGBW LED tape on the market, it's lighting redefined. *Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure colour changing spot free light lines (when placed within any aluminium channel / LED profile) RGBW LED strip light solution.Create an ultra high definition "tron" style neon LED light line. Perfect for the tech enthusiast wanting to showcase state of the art kitchen cabinets, work tops and furnishings. The ideal complement to trending Anthracite style designs in cuboard, cabinets or walk-in wardrobes.
Wiring Diagram & Best Practises
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Vienna No Dot RGBW Kits - It's Seamless Lighting Made Simple
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Contact us for a fast quote today. We aim to quote within 1 hour. Feel free to call on 0116 406 2959, email at sales@upriseled.com or contact us for super fast response on WhatsApp: 07957 180 481.
Colour Temperatures
First and foremost this WRGB strip offers a dedicated 3000K warm white / 4000K neutral white / 6000K cool white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "spotless" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>90.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our UHD (Ultra High Definition) RGBW COB LED strip lights come equipped 1132 micro LEDs per meter offering a no spotting appearance. When used in conjunction with our extruded aluminium channels, generally known as LED profiles, you get a truly "seamless" effect. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Feed In Cable Tails
Uprise can solder any length of 5 core flat cable to your UHD RGBW seamless LED strip light. Simply let us know your project application and we'll advise the best way to achieve your desired result.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+4000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 1132LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K)
Lumens/w: N/A
CRI: >90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 20W (19.6 actual)
Input Voltage: 24V
Current (A): N/A
Cable in: 200mm 2 core (as standard)
Cable out: N/A
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 22.5mm
Cable: 5 core flat cable (20 AWG)
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll within antistatic silver bag (typical)
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
RGBCCT (Colour & 3000K-6000K) COB LED Tape. Beauty in light.
Working on a big or small project that requires custom lengths and expert advise? Send us an email via sales@upriseled.com or Whatsapp us details to 07957 180 481.
Inspired by the teachings of the Dalai Lama, this "no dot" RGBCCT LED strip light is one with everything. Clean whites, vibrants colours and stunning pastels.. Create a full colour, beautiful light line today.*Priced per meter, supplied with 200mm 6 core flat cable as standard. Contact us for made to measure seamless "no dot" (when placed within any aluminium channel / LED profile) RGBCCT LED strip light solution.
Create a beautiful light line that's seamless on the eye. Ideal for routed work tops, undercabinet lighting, within kitchens, accents, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Article – The Definitive Guide to COB LED Strip Lights
Colour Temperatures
It's RGBCCT, that means it R,G,B colour with Warm 3000K & Cool 6000K mixing, providing the most beautiful, full colour, spot free lighting result.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
Light Diffusion
Add this RGB, Dual White (3000K-6000K transitioning) LED strip light to any light channel, LED profile or aluminium extrusion for a truly "no dot" LED lighting result.When mounted within a routed hole via a professional joinery company or woodworker the low depth and make up of this strip offers minimal if any hot spotting at low groove depth. In some instances it can be mounted without an LED extrusion,use best judgement or contact us today to discuss your project.
Choose your length
This true full colour COB LED strip light can be purchased "made to measure" with longer length tails for ease of integration. It can also be purchased in various lengths online.
Application
This flexible RGBCCT COB LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless "no dot" COB RGBCCT LED Tape
Colour: RGBCCT (RGB Colour + 3000K-6000K transitioning)
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 840LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1170LM
Wave Length: R: 620nm, G: 540nm, B: 455nm
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 21W
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: N/A
Dimensions
Width: 12mm
Height: 2.7mm
Length: 5m (as standard)
Installation
Cut points: 35.71mm
Cable: 6 core flat cable (20 AWG)
Mounting: 3M backing tape / VHB backing tape (contact us)
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Update 13-10-22: Wattage changed from 18-watt per meter to 20-watts per meter (19.2W/m actual) to build in tolerances based on new information.- Stephen Watts
HD RGBW COB LED Tape. Light completion.
*Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure seamless "no dot" (when placed within any aluminium channel / LED profile) RGBW LED strip light solution.
Create a colour changing light line that's seamless on the eye. Ideal for undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
Wiring Diagram & Best Practises
[PDF] Branded - How to install 24V RGBW COB LED Tape Lights - 2 x 4M Lengths (840LED/M RGBW No Dot 24V)
[PDF] Unbranded - How to install 24V RGBW COB LED Tape Lights - 2 x 4M Lengths (840LED/M RGBW No Dot 24V)
Works well with
Wireless 5 in 1 CCT & RGBWW LED Remote Handset [Remote Handset]Smart Wireless 5 in 1 CCT & RGBWW LED Controller Receiver [Controller-Receiver]
Vienna No Dot RGBW Kits - It's Seamless Lighting Made Simple
6M 840LED No Dot RGBW 3000K COB LED Tape Kit With Wireless Handset
This 20-watt per meter RGBW COB LED strip is slim, flexible, offering excellent brightness and colour output. Utilising the latest in flip chip COB technology with a long expected life of 50K hours.
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGBW colour changing (5 wire) LED Strip LightSolder Cable to RGBW colour changing (5 wire) LED Strip Light
Colour Temperatures
This strip offers a dedicated 3000K warm white / 4000K neutral white / 6000K cool white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "no dot" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+4000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 840LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K)
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 20W (19.2 actual)
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 33.3mm
Cable: 5 core flat cable (20 AWG)
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Update 13-10-22: Wattage changed from 18-watt per meter to 20-watts per meter (19.2W/m actual) to build in tolerances based on new information.- Stephen Watts
*Priced per meter. This flexible, high output RGBW LED tape light uses the highest quality branded LEDs for excellent light performance. 19.2W/M (Max wattage potential). Typically supplied on a 5M reel (add qty x5), lengths include 500mm tail as standard.

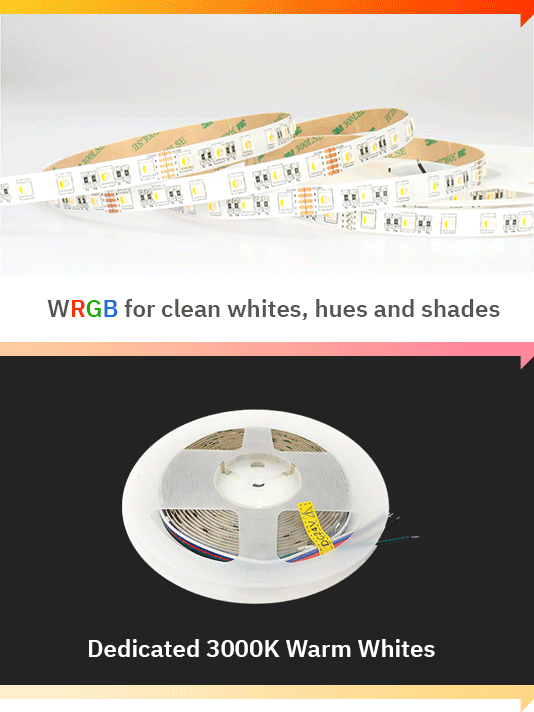

60LED RGBW LED tape light. All in one colour, for fuller light visuals.
This 20-watt (4 in 1) RGBW (2700K) LED strip lighting is a continuous LED light source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED tape, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, emits up to 1075.13 lumens per meter, while drawing only 20 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
RGBW offers all the advantages of RGB colour changing LED tapes with the added dimensions of a dedicated 2700K white chip. Also available in RGB + 3000K / 4000K / 6000K. Simply put this enterprise class RGBW LED tape light provides rich, vivid colours, washed out pastel hues and shades and along with a solid dedicated white option. Ideal for both high-end and general commercial applications where quality in colour, longevity and brightness is required.
We also supply RGB and RGBTW colour changing LED strips if added white visual effects are desired.
Colour Rendering Index (CRI)
This slim LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this radiant LED strip light emits 1075.13 (RGB+2700K) lumens per meter.
Light Diffusion
As standard our LED strips offer a smooth linear effect when illuminating any surface.
Optionally, you can use these LED tapes together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strips light source will be evenly diffused.
Wiring Example
Choose your length
Uprise’s 20-watt LED tape light, like our alternative bendable strip light series, comes in standard 5M reels and may be cut at every 100mm copper pads cut point. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is just 12mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This LED tape is available in IP20, IP65(H), IP65(S) and IP68. Feel free to contact us on 0116 406 2959 or email us via sales@upriseled.com to talk to an expert. We’ll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments
This slim LED tape provides excellent lighting for commercial applications, perfect for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGBW LED Tape
Colour: RGBW (RGB+2700K warmer white)
IP Rating: IP20 / IP65H / IP65S / IP68
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1075.13Lm/m (RGB+2700K)
Lumens/w: 56Lm/w (RGB+2700K)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 20W
Input Voltage: 24V
Current (A): 0.8A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 5 Core Flat Cable
Mounting: 3M backing tape / VHB Bonding tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Year Warranty, Upto 7 years.
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*Priced per meter. This flexible, high output RGBW LED tape light uses the highest quality branded LEDs for excellent light performance. 19.2W/M (Max wattage potential). Typically supplied on a 5M reel (add qty x5), lengths include 500mm tail as standard.
60LED RGBW LED tape light. All in one colour, for fuller light visuals.
This 20-watt (4 in 1) RGBW (4000K) LED strip lighting is a continuous LED light source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED tape, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, emits up to 1178.11 lumens per meter, while drawing only 20 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
RGBW offers all the advantages of RGB colour changing LED tapes with the added dimensions of a dedicated 4000K white chip. Also available in RGB + 2700K / 3000K / 6000K. Simply put this enterprise class RGBW LED tape light provides rich, vivid colours, washed out pastel hues and shades and along with a solid dedicated white option. Ideal for both high-end and general commercial applications where quality in colour, longevity and brightness is required.
We also supply RGB and RGBTW colour changing LED strips if added white visual effects are desired.
Colour Rendering Index (CRI)
This slim LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this radiant LED strip light emits 1178.11 (RGB+4000K) lumens per meter.
Light Diffusion
As standard our LED strips offer a smooth linear effect when illuminating any surface.
Optionally, you can use these LED tapes together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strips light source will be evenly diffused.
Wiring Example
Choose your length
Uprise’s 20-watt LED tape light, like our alternative bendable strip light series, comes in standard 5M reels and may be cut at every 100mm copper pads cut point. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is just 12mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This LED tape is available in IP20, IP65(H), IP65(S) and IP68. Feel free to contact us on 0116 406 2959 or email us via sales@upriseled.com to talk to an expert. We’ll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments
This slim LED tape provides excellent lighting for commercial applications, perfect for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGBW LED Tape
Colour: RGBW (RGB+4000K neutral white)
IP Rating: IP20 / IP65H / IP65S / IP68
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1178.11Lm/m (RGB+4000K)
Lumens/w: 59Lm/w (RGB+4000K)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 20W
Input Voltage: 24V
Current (A): 0.8A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 5 Core Flat Cable
Mounting: 3M backing tape / VHB Bonding tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Year Warranty, Upto 7 years.
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
This flexible, high output IP68 waterproof RGB LED tape light uses the highest quality Epistar LEDs for excellent light performance. 15W/M, 5M Reel.
12mm colour changing RGB LED tape. Beautiful colours that set the mood.
This 15-watt RGB LED tape light is a continuous LED lighting source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED ribbon, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, outputs up to 635.13 (RGB) lumens per meter, while consuming only 15 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
Our professional, long lasting RGB colour changing LED tapes are the standard in creating exciting, vibrant shades throughout your space. With millions of emotion inducing colours to choose from you get to set the scene. Ideal for commercial applications where fit and forget is a must.
We also supply RGBW and RGBTW colour changing LED tapes if added white visual effects are desired.
Colour Rendering Index (CRI)
This radiant LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this bright LED ribbon outputs 635.13 (RGB) lumens per meter.
Light Diffusion
When illuminating any surface, our flexible LED strips provide a seamless linear effect as standard. Our LED strips can be used in combination with our aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise’s 15-watt LED tape, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 50mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED ribbon is just 12mm wide (IP68) and also available in IP20 (10mm) for internal applications. An IP68 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is IP68. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
This LED tape provides excellent lighting for commercial applications, ideal for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGB LED Tape
Colour: RGB
IP Rating: IP68
PCB Colour: Black
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 635.13Lm/m (RGB)
Lumens/w: 44.11Lm/w (RGB)
CRI: >90
Beam angle: 120°
Electrical
LED Wattage (Per meter): 15W
Input Voltage: 12V
Current (A): 1.2A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 10mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 4 Core Flat Cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*Priced per meter. This flexible, high output RGBW LED tape light uses the highest quality branded LEDs for excellent light performance. 19.2W/M (Max wattage potential). Typically supplied on a 5M reel (add qty x5), lengths include 500mm tail as standard.
60LED RGBW LED tape light. All in one colour, for fuller light visuals.
This 20-watt (4 in 1) RGBW (3000K) LED strip lighting is a continuous LED light source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED tape, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, emits up to 1100.1 lumens per meter, while drawing only 20 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
RGBW offers all the advantages of RGB colour changing LED tapes with the added dimensions of a dedicated 3000K white chip. Also available in RGB + 3000K / 4000K / 6000K. Simply put this enterprise class RGBW LED tape light provides rich, vivid colours, washed out pastel hues and shades and along with a solid dedicated white option. Ideal for both high-end and general commercial applications where quality in colour, longevity and brightness is required.
We also supply RGB and RGBTW colour changing LED strips if added white visual effects are desired.
Colour Rendering Index (CRI)
This slim LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this radiant LED strip light emits 1100.1 (RGB+3000K) lumens per meter.
Light Diffusion
As standard our LED strips offer a smooth linear effect when illuminating any surface.
Optionally, you can use these LED tapes together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strips light source will be evenly diffused.
Wiring Example
Choose your length
Uprise’s 20-watt LED tape light, like our alternative bendable strip light series, comes in standard 5M reels and may be cut at every 100mm copper pads cut point. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is just 12mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This LED tape is available in IP20, IP65(H), IP65(S) and IP68. Feel free to contact us on 0116 406 2959 or email us via sales@upriseled.com to talk to an expert. We’ll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments
This slim LED tape provides excellent lighting for commercial applications, perfect for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGBW LED Tape
Colour: RGBW (RGB+3000K warm white)
IP Rating: IP20 / IP65H / IP65S / IP68
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1075.13Lm/m (RGB+3000K)
Lumens/w: 56Lm/w (RGB+3000K)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 20W
Input Voltage: 24V
Current (A): 0.8A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 5 Core Flat Cable
Mounting: 3M backing tape / VHB Bonding tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Year Warranty, Upto 7 years.
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
*Priced per meter, for IP68 (sealed) choose quantity x5 as supplied in 5M sealed reel. All lengths come with standard 500mm tail which can be extended on request.
This flexible, high output RGBW LED tape light uses the highest quality branded LEDs for excellent light performance. 19.2W/M (Max wattage potential), 5M Reel.
60LED RGBW LED tape light. All in one colour, for fuller light visuals.
This 20-watt (4 in 1) RGBW (4000K) LED strip lighting is a continuous LED light source that is both compact and flexible, making it perfect for a wide range of applications. This slim LED tape, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality, emits up to 1178.11 lumens per meter, while drawing only 20 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Colour Temperatures
RGBW offers all the advantages of RGB colour changing LED tapes with the added dimensions of a dedicated 4000K white chip. Also available in RGB + 2700K / 3000K / 6000K. Simply put this enterprise class RGBW LED tape light provides rich, vivid colours, washed out pastel hues and shades and along with a solid dedicated white option. Ideal for both high-end and general commercial applications where quality in colour, longevity and brightness is required.
We also supply RGB and RGBTW colour changing LED strips if added white visual effects are desired.
Colour Rendering Index (CRI)
This slim LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this radiant LED strip light emits 1178.11 (RGB+4000K) lumens per meter.
Light Diffusion
As standard our LED strips offer a smooth linear effect when illuminating any surface.
Optionally, you can use these LED tapes together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strips light source will be evenly diffused.
Wiring Example
Choose your length
Uprise’s 20-watt LED tape light, like our alternative bendable strip light series, comes in standard 5M reels and may be cut at every 100mm copper pads cut point. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip is just 12mm wide (IP20) and selectable up to an IP67 standard. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This LED tape is available in IP20, IP65(H), IP65(S) and IP68. Feel free to contact us on 0116 406 2959 or email us via sales@upriseled.com to talk to an expert. We’ll assist you to choose the right strip to apply.
See our IP rating charts here for additional information about the ideal strip for your application.
Environments
This slim LED tape provides excellent lighting for commercial applications, perfect for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGBW LED Tape
Colour: RGBW (RGB+4000K neutral white)
IP Rating: IP20 / IP65H / IP65S / IP68
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 1178.11Lm/m (RGB+4000K)
Lumens/w: 59Lm/w (RGB+4000K)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 20W
Input Voltage: 24V
Current (A): 0.8A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 100mm
Cable: 5 Core Flat Cable
Mounting: 3M backing tape / VHB Bonding tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Year Warranty, Upto 7 years.
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
RGBW COB LED Tape. Light completion.
Working on a big or small project that requires custom lengths and expert advise? Send us an email via sales@upriseled.com or Whatsapp us details to 07957 180 481.
*Priced per meter, supplied with 200mm 5 core flat cable as standard. Contact us for made to measure seamless "no dot" RGBW LED strip light solution.
Create a colour changing light line that's seamless on the eye. Ideal for undercabinet areas within kitchens, bedrooms or walk in wardrobes along with low profile coving, retail POS displays and more.
This 16-watt per meter RGBW COB LED strip is slim, flexible, offering excellent brightness and colour output. Utilising the latest in flip chip COB technology with a long expected life of 50K hours.
Article – The Definitive Guide to COB LED Strip Lights
Build Your Solution
Add corner joint or feed custom length feed in services below.
Solder Corner Cable to RGBW colour changing (5 wire) LED Strip LightSolder Cable to RGBW colour changing (5 wire) LED Strip Light
Colour Temperatures
This strip offers a dedicated 3000K warm white along with full RGB colour changing for millions of colour combinations. Generate beautiful pastel hues and shades to compliment your room scheme. When combined with an LED profile a "no dot" lighting result can be achieved.
Colour Rendering Index (CRI)
This versatile LED tape light is available in CRI>80.
Brightness (Lumen Output)
This bright COB LED strip produces 711.8lm/m (RGB+3000K+6000K).
Light Diffusion
When it comes to illuminating any area, our COB LED strip lights come equipped with a smooth linear appearance. These flexible LED strips can be used together with our extruded aluminium channels, generally known as LED profiles, if desired. Once LED tape strips are fitted into the profiles, the light source will be evenly distributed.
Choose your length
This full colour COB LED strip light can be purchased now in 1,2,3,4 5M increments with a 200mm tail. Or Uprise can cut your tape to exact sizes if you need specific lengths along with extended cables.
Application
This flexible COB LED ribbon is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED tape is available in several IP rating options ranging from IP20 at 12mm wide to an IP65 rating. A silicone gel IP65 rating offers LED strip lights protection against splashes of water. Due the makeup of the silicone gel coating this can ever so slightly affect the original colour of the strip. Newer generations of IP65 LED strips have become better.
IP Rating Options
This bright LED tape is available in the IP20 & IP65 versions. Contact us on 0116 406 2959 or send us a message at sales@uprisemed.com if you wish to talk to a lighting expert. We will guide you to select the correct type to apply.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Specifications
General
Product Type: Seamless COB RGBW LED Tape
Colour: RGB+3000K / RGB+6000K
IP Rating: IP20 / IP65
PCB Colour: White
Chip: COB (Chip on board) technology
LEDs per meter: 560LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 711.8Lm/m (RGB+3000K+6000K)
Lumens/w: N/A
CRI: >80
Beam angle: 180°
Electrical
LED Wattage (Per meter): 16W
Input Voltage: 24V
Current (A): N/A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 12mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points: 50mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 5 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 12mm and will fit into all LED profiles with an inside width of 12mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
This simple to connect 2500mm cob led tape kit comes with 24W 5 output plug and play driver, x5 2M cable with micro connectors and x5 COB tape to wire connectors. This allows for an adaptable LED setup within any space where a seamless lighting result is desired.
--
12V 2.5M COB LED Tape Kit With Driver, Click Fit Cables and Connectors
Kit Includes
x1 2.5M (2500mm) 8mm 12V COB LED tape light packed on reel.
x1 24W 12V plug and play cabinet style LED driver

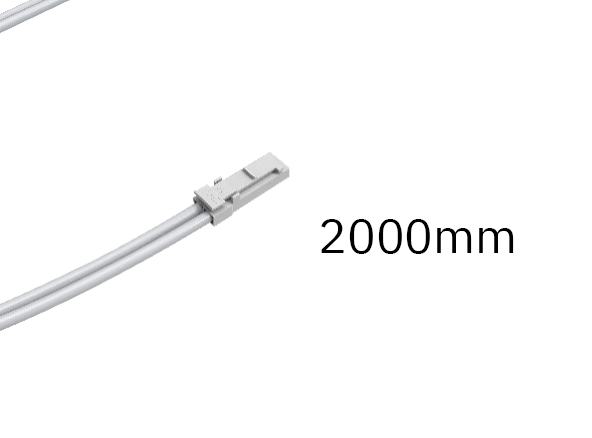

x5 2M (2000mm) micro connector to bare end extension cables. Allows quick connect to supplied driver.
x5 COB LED tape to 2 core cable 10mm wide connectors. These are ideal for connection to custom cut lengths from the 2.5M provided COB LED strip light.Micro Connector-2M-Cable > Connector > COB LED tape length (cut down to size)
x1 2M mains plugs with C7 type connector (plugs directly into cabinet LED driver).
Support
How to connect COB LED tape lights simply.
Specifications
COB LED Tape
Product Type: Seamless No Dot LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 900lm/m
Lumens/w: 80-120lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter): 9W
Input Voltage: 12v DC
Current (A): 0.75A/m
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm
Height: 2mm
Length: 2.5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 2.5M Roll as standard.
Net Weight: 152g/Roll
*Please Note: No more than 3 metres of COB LED tape should be connected to a single port. Upto 6 metres can be powered across two ports (powered both ends).
Article - The Definitive Guide to COB LED Strip Lights
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can I cut this COB LED strip to length?
Yes, it can be cut easily at every 25mm indicated cut point. Alternatively we can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
How do I connect an extension cable to the LED tape?
This LED tape kit comes with 10mm wide LED tape to 2 core cable connectors. Simply push the ends of tape into one side of the connector and the 2 core cable into the other. Once both are firmly in place clamp down the metal connection spokes with a pair of plyers. This results in a secure circuit. It's important to ensure the polarity of the + / - are correctly orientated, please check this.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help you get a finished result that lasts.
Special Trial Offer - Try Before You Begin. Limited number of kits available. Includes free shipping to UK Mainland. Limited to one per customer.This simple to connect 500mm 3000K warm white cob led strip kit comes with a 24W 5 output plug and play driver. It's ideal for trialling "no dot" lighting before you commence with a lighting project.
Wiring Setup: UK Mains Socket > UK Mains Plug (Inc C7 connector) > 24W Cabinet LED Driver (12V) > 12V 3000K "no dot" COB LED TapeIdeal for trade professionals, DIY'ers, lighting designers, joinery companies and great for product fit testing within home environments such as kitchens, bedrooms and bathrooms. Along with applications like cabinets, drawers, shelves, media units, walk in wardrobes and more.
--
12V 0.5M COB LED Tape Kit With Quick Connect Driver
Kit Includes
x1 0.5M (500mm) 8mm 12V IP65 (heatshrink) COB LED tape light packed on reel.
x1 24W 12V plug and play cabinet style LED driver
x1 2M Extension cable so you can see how easy it is to extend your length.
x1 2M mains plugs with C7 type connector (plugs directly into cabinet LED driver).
Support
How to connect COB LED tape lights simply.
Specifications
COB LED Tape
Product Type: Seamless No Dot LED Tape (9W)
Colour: Warmer White (2700K) / Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating: IP20 (Internal)
PCB Colour: White
Chip: COB (Chip on board) Flip Chip Technology
LEDs per meter: 480LEDS
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 900lm/m
Lumens/w: 80-120lm/W
High CRI: 90
Beam angle: 180°
Electrical
LED Wattage (Per meter based on 5M run length): 9WFor Actual Wattages: Download Wattage & Driver Parameters Sheet .csv
Input Voltage: 12v DC
Current (A): 0.75A/m
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 8mm
Height: 2mm
Length: 2.5m (as standard)
Installation
Cut points: 25mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Packaging
Packaging: 2.5M Roll as standard.
Net Weight: 152g/Roll
*Please Note: No more than 3 metres of COB LED tape should be connected to a single port. Upto 6 metres can be powered across two ports (powered both ends).
Article - The Definitive Guide to COB LED Strip Lights
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can I cut this COB LED strip to length?
Yes, it can be cut easily at every 25mm indicated cut point. Alternatively we can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
How do I connect an extension cable to the LED tape?
This LED tape kit comes with 10mm wide LED tape to 2 core cable connectors. Simply push the ends of tape into one side of the connector and the 2 core cable into the other. Once both are firmly in place clamp down the metal connection spokes with a pair of plyers. This results in a secure circuit. It's important to ensure the polarity of the + / - are correctly orientated, please check this.
What aluminium LED extrusions can I fit this into?
This product is 8mm and will fit into all LED profiles with an inside width of 8mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I've purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we're here to help you get a finished result that lasts.
This black finished double door sensor offers simple on/off illumination when dual cabinet doors are opened and shut. Complete with two individual sensors for individual door sensing.
--
*In Stock UK - 12V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Black)
12V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Individual output dimming)
This double sensor switch consists of two inductive sensors which are can be switched on or off, without the need for a physical switch. It connects directly to an individual output of our 12V Cabinet LED driver range. Rated for either 12V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications
What is the operation of this 12V DC double sensor switch for cabinet/wardrobe doors?
The operation is simple, each sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number: DDS-2C-B
Product Type: 12V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Connection
Sensors: x2 Black Micro Sensors
Head Cable Distance: 1.5M - 3 Pin Connector > 110mm 3 core flat cable > Central Processor > x1 500mm Male Connector / x1 500mm Female Connector
Product Type: 12V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Electrical
Voltage: 12V DC
Max Output Current: 5A
Maximum Power: 60W (12V)
Design
Material: PVC plastic
Finish: Black
Dimensions
Outer Flange: Ø 12 mm
Cutout: Ø 10-11 mm
Depth: 11mm
Installation
Mounting: Surface mount, x2 screws for sensor holders. Slip in/out. Or cutout hole mount.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: Plastic bag
Net Weight: 90
A sleek, simple to setup touch dimmer sensor. Includes on/off and touch and hold dimming up and down to control system LED lights. Finished in chrome silver with blue illuminated halo when powered up.
--
Mini Dimmable Touch Switch Sensor for LED Strips
A touch sensitive on-off micro dimmer switch that is simple to install. Simply click into one of our 12V plug and play cabinet LED drivers and press for on/off functionality. By gently touching the switch for a few seconds you can dim up/down system connected LED lights. When powered up it emanates with a low key, brilliant blue halo offering a stylish, more complete look.
The micro connector can also be cut off revealing a positive and negative wiring cores (2 core flat cable), indicated as white (+) /grey dotted line (-) which can be wired in series to your LED circuit.
This ready to connect mini light dimmer is ideal for kitchen cabinet lighting. Simply turn on/off and dim COB LED strip lights, Undercabinet lights and recessed spot lights with ease.
* LED Strip, light sources and other accessories not included.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number:
Product Type: 12V touch on/off sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: Compatible with 12V
Max Output Current: 5A
Maximum Power: 60W (5A in 12V)
Design
Material: Aluminium - PC
Finish: Silver/Chrome
Dimensions
Height: 13.5mm excluding cables
Width: 20mm Diameter including rim (outer flange)
Cutout: Ø 17.3 mm
Length: 170mm
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
Question: Does this touch dimmer switch remember it's setting on mains power on/off
Answer: No, it does not remember the last saved setting if the power source is turned on and off or vice versa. It will only remember the dimmer level if the system is always turned on.
13mm bright 4000K neutral white LED tape. Seamless lighting made simple.
This 14.4 watt bright 4000K white (neutral white) LED strip light is a roll-out LED lighting source that is both compact and flexible, making it ideal for a wide range of applications. This slim LED ribbon, which uses 60 5050 SMD branded LEDs and is manufactured to a high quality standard, drawing only 12 watts per meter. Life expectancy of this luminous LED tape is 50,000 hours of continuous use.
Light Diffusion
As standard our LED strip lights offer a smooth linear effect when illuminating any surface. Optionally, you can use these LED strip lights together with our aluminium extrusions, also known as LED profiles. Fitted within profiles, the LED strip light source will be evenly diffused.
Wiring Example
Choose your length
This 14.4-watt per meter LED tape may be purchased in standard 5M reels and cut at every 100mm soldered (copper coloured) part of the circuit. Uprise can cut your tape to size if you need specific lengths, whatever size. We also have a variety of in stock lengths pre-made for ease of specification.Call us on 0116 406 2959 or email us sales@upriseled.com with your requirements.
Application
This LED tape light is suitable for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED strip light is available in several IP rating options ranging from IP20 at 10mm wide through to an IP67 rating. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This blisteringly bright LED tape comes with an IP67 rubber casing for splash proof, water resistant applications. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
Due to it's high brightness and heat output this strip is ideally suited for outdoor stage blinder strobe lighting applications. Note: These strips should not be left on for long periods of time without adequate heatsink or thermal management.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED strip lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: Single Colour LED Tape
Colour: 4000K neutral white (4000K)
IP Rating: IP67 Heat Shrink (splash resistant)
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 60LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
CRI: CRI80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 14.4W
Input Voltage: 24V
Current (A): 0.6A
Cable in: 500mm 2 core (as standard)
Cable out: 500mm 2 core (as standard)
Dimensions
Width: 13mm
Height: 2mm
Length: 5m (as standard), various lengths available.
Installation
Cut points: 100mm
Cable: 2 core flat cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 1 Years
Packaging
Packaging: XM Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED strip lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 13mm and will fit into all LED profiles with an inside width of 13mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
13mm IP67 colour changing RGB LED tape. Scenic colours with added splash resistant protection.
A roll-out LED lighting source that’s slim and super flexible, this 7.2-watt RGB LED tape light is ideal for a wide range of uses. Incorporating 30 5050 SMD branded LEDs and engineered to a high quality standard, this high lumen LED ribbon emits upto 316.08 (RGB) lumens (per meter), consuming just 7.2 watts a meter. Life expectancy of 50,000 hours continued use is typical.
Colour Temperatures
Our professional, long lasting RGB colour changing LED tapes are the standard in creating exciting, vibrant shades throughout your space. With millions of emotion inducing colours to choose from you get to set the scene. Ideal for commercial applications where fit and forget is a must.
We also supply RGBW and RGBTW colour changing LED tapes if added white visual effects are desired.
Colour Rendering Index (CRI)
This radiant LED ribbon is available in CRI>90.
Brightness (Lumen Output)
Ultra efficient as standard, this bright LED strip light outputs 316.08 (RGB) lumens per meter.
Light Diffusion
When illuminating any surface, our flexible LED strips provide a seamless linear effect as standard. Our LED strips can be used in combination with our aluminium channels, commonly known as LED profiles. The light source of the LED strips will be evenly dispersed when they are fitted within profiles.
Wiring Example
Choose your length
Uprise’s 7.2-watt LED tape, like our other bendable strip light series, comes in standard 5M reels and may be cut at each 167mm soldered (copper coloured) segment. If you require specific lengths, large or small, we can cut your tape to length.
Application
This flexible LED strip light is ideal for fitouts within cabinet displays, under pelmets, shelves, signage and within coves.
The LED ribbon is just 13mm wide (IP67) and also available in IP20 (10mm) for internal applications. An IP67 rating provides full dust and low immersion protection. It can be used, when water resistance is needed, within bathrooms, external areas or water features.
IP Rating Options
This bright LED tape is IP67. Contact us on 0116 406 2959 or send us a message at sales@upriseled.com if you wish to talk to a lighting expert. We will guide you to select the right strip to apply.
Check our IP rating charts here for additional information about which strip is suitable for your application.
Environments
This LED tape provides excellent lighting for commercial applications, ideal for resorts, restaurants, bars, hotel lobbies and retail spaces and window displays. This LED ribbon is well suited to architects, light engineers, AV integrators and electrical specialists when there is a requirement for slim, bright, long lasting LED strips.
It is particularly suited for outside garden areas such as edge lights, garden bars and steps, living rooms, kitchens and home movies.
Quality Assurance
Uprise believes in long term value, that’s why our enterprise class LED tape lights use premium grade, long lasting components. Colour consistency and uniformity is a project must, so all our LED strip lights are batched for overall peace of mind.
Looking to dim your LED tape lights, Uprise offers a comprehensive range of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. You can also check out our new Dim to Warm & Seamless COB flexible LED strips for beautiful visual aesthetics and end dimming results.
Specifications
General
Product Type: RGB LED Tape
Colour: RGB
IP Rating: IP67
PCB Colour: White
Chip: 5050 SMD
LEDs per meter: 30LEDs
LED Life: 70% @ 50,000 Hours
Brand: Uprise
Light Characteristics
Lumens/m: 316.08Lm/m (RGB)
Lumens/w: 43.9Lm/w (RGB)
CRI: >80
Beam angle: 120°
Electrical
LED Wattage (Per meter): 7.2W
Input Voltage: 24V
Current (A): 0.3A
Cable in: 150mm 2 core (as standard)
Dimensions
Width: 13mm
Height: 2mm
Length: 5m (as standard)
Installation
Cut points:
Cable: 4 Core Flat Cable
Mounting: 3M backing tape
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Packaging
Packaging: 5M Roll
Net Weight: 152g / Roll
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
Can you custom cut this strip to length?
We can custom cut your LED tape lights, Neon Flex and LED extrusion profiles to exact specification. Contact us for more information.
What aluminium LED extrusions can I fit this into?
This product is 10mm and will fit into all LED profiles with an inside width of 10mm and above.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
A 0.15M (150mm) extension cable with plug and play micro connector that works with our cabinet LED driver range.
Features & Benefits
1x 150mm input cable with male micro connector one end and bare wires the other end.
Smaller sleeker connector design than other 150mm cables for a tidier fitout.
We supply various LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
Plugs into multi-output style cabinet LED driver system. Ideal for DIY or professional kitchen, walk-wardrobes, cabinet or shelving installations.
A 1M (1000mm) extension 5 core flat cable length. Ideal for extending the cable tail of any of our RGBW seamless or standard LED tape lengths to 2M (2000mm). Cut to length with bare ends revealed ready for connection.
A 2.5M (2500mm) extension 5 core flat cable length. Ideal for extending the cable tail of any of our RGBW seamless or standard LED tape lengths to 2.5M (2500mm). Cut to length with bare ends revealed ready for connection.
24W 5 Output Cabinet Display LED Driver 12V
This 5 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 12V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 5 micro connectable outputs you can easily run 5 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 24W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 136mm x 54mm x 18.5mm
Wiring
5 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 12V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 24W - 10% (21.6W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 54mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 12V 24W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 5 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-24W
Input Voltage: 200-240V
Output Voltage: 12V +/- 5%
AC Input Current: 0.36A
3A Port: 5
Outputs: x5 micro connectors
Wattage: 24W
Voltage: 12V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V 2 core single colour LED tape strip or 12V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
Wiring (Add components)
Mains Source > 2M C7 Mains Lead > 24W Cabinet Driver > Sensor > COB LED Tape
24W 5 Output Cabinet Display LED Driver 12V
*Includes x1 black coloured 2M (2000mm) UK mains plug to C7 kettle lead.
This 5 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 12V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 5 micro connectable outputs you can easily run 5 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 24W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 136mm x 54mm x 18.5mm
Wiring
5 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 12V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 24W - 10% (21.6W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 54mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 12V 24W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 5 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-24W
Input Voltage: 200-240V
Output Voltage: 12V +/- 5%
AC Input Current: 0.36A
3A Port: 5
Outputs: x5 micro connectors
Wattage: 24W
Voltage: 12V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V 2 core single colour LED tape strip or 12V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
