This plug & play silver recessed LED spot light is ideal for kitchen cabinet and furniture displays. It provides a 3000K warm white light temperature and consumes just 1.5W of power. Easy setup & economic.
--

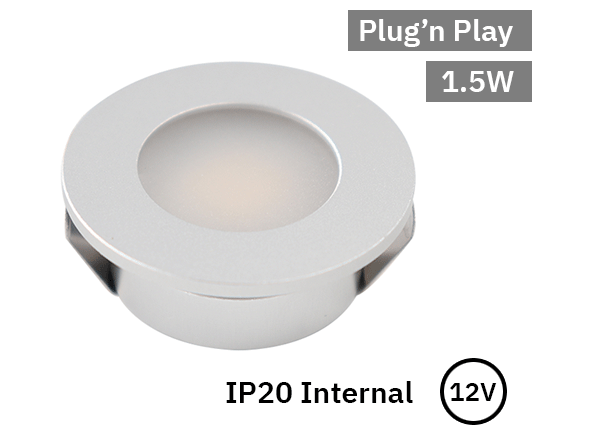

3000K Silver Recessed Spot Light with 2000mm tail. 12V
A sleek, plug & play low profile recessed spot light that's ideal for cabinet illumination. Finished in silver with a 3000K colour temperature it provides great working light for kitchen surfaces. At just 1.5W energy consumption it's an eco friendly micro LED downlight that's built to last. 12V rated.
Product Compatibility
This product works well with our range plug & play 12V cabinet LED drivers
24W 6 Output Cabinet LED Driver (12V) With Mains Lead60W 6 Output Cabinet LED Driver (12V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: RD30-MS-12
Colour Temperature: 3000K warm white
Product Type: Recessed Cabinet LED Downlight / Spotlight
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12V DC
Power Consumption: 1.5W (12V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Anodized Silver (Top), Stainless Steel (Bottom)
Dimensions
Outer flange: Ø 35mm diameter
Cutout hole: Ø 30mm (spring clip mounted)
Cutout hole: Ø 28mm (No spring clip mounted)
Depth: 12mm
Installation

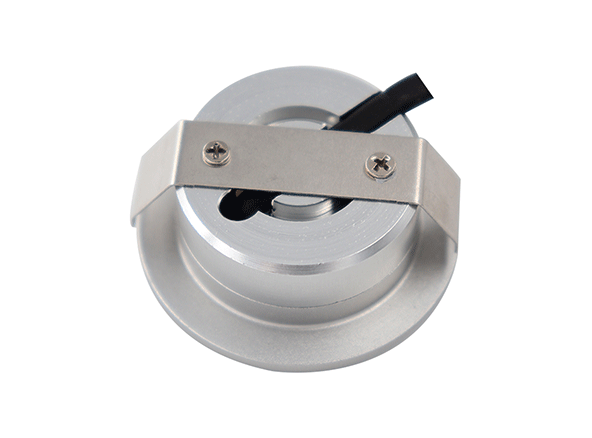

Mounting: Recessed spring clip, x2 screws spring clip holders.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
Wiring (Add components)
Mains Source > 2M C7 Mains Lead > 24W Cabinet Driver > Sensor > COB LED Tape
24W 5 Output Cabinet Display LED Driver 12V
*Includes x1 black coloured 2M (2000mm) UK mains plug to C7 kettle lead.
This 5 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 12V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 5 micro connectable outputs you can easily run 5 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 24W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 136mm x 54mm x 18.5mm
Wiring
5 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 12V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 24W - 10% (21.6W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 54mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 12V 24W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 5 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-24W
Input Voltage: 200-240V
Output Voltage: 12V +/- 5%
AC Input Current: 0.36A
3A Port: 5
Outputs: x5 micro connectors
Wattage: 24W
Voltage: 12V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V 2 core single colour LED tape strip or 12V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
[VIDEO] How can I extend the cable easily between COB LED strips?[VIDEO] What size 12V-24V micro connector cable lengths are available?
*In stock UK for next day delivery or same day collection (Lutterworth, Leicestershire).
This sleek cable allows you to extend the lighting cable attached to a multi-output cabinet LED driver module. Please get in touch if you require any support with additional extension cable.
Features & Benefits
1x Male/Female output extension cable supplied
Smaller sleeker design than other LED extension cables for a tidier fitout.
This LED light extension cable is used to achieve a longer run from your light source to your driver.
These extension cables can also be joined together to create even longer lengths to your lights.
We supply various LED lights, Strip Lights, Spot Lights and plug & play LED driver kits, please search our store or call us on 0116 406 2959 or email us at sales@upriseled.com for more further project completion support.
A 2M (2000mm) / 3M (3000mm) / 4M (4000mm) / 5M (5000mm) extension cable with plug and play female (input) and male (output) micro connectors that works with our cabinet LED driver range
A sleek, simple to setup touch dimmer sensor. Includes on/off and touch and hold dimming up and down to control system LED lights. Finished in chrome silver with blue illuminated halo when powered up.
--
Mini Dimmable Touch Switch Sensor for LED Strips
A touch sensitive on-off micro dimmer switch that is simple to install. Simply click into one of our 12V / 24V plug and play cabinet LED drivers and press for on/off functionality. By gently touching the switch for a few seconds you can dim up/down system connected LED lights. When powered up it emanates with a low key, brilliant blue halo offering a stylish, more complete look.
This ready to connect mini light dimmer is ideal for kitchen cabinet lighting. Simply turn on/off and dim COB LED strip lights, Undercabinet lights and recessed spot lights with ease.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number:
Product Type: 12/24V touch on/off sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: Compatible with 12V-24V
Max Output Current: 5A
Maximum Power: 60W (5A in 12V / 2.5A in 24V)
Design
Material: Aluminium - PC
Finish: Silver/Chrome
Dimensions
Height: 13.5mm excluding cables
Width: 20mm Diameter including rim (outer flange)
Cutout: Ø 17.3 mm
Length: 170mm
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
This black finished single door sensor switch offers simple on/off illumination when a single cabinet door is opened and shut. Complete with a single individual sensor for individual door sensing.
--
*In Stock UK - 12/24V DC Single Sensor Switch for Cabinet/Wardrobe Doors (Black)
12/24V DC Single Sensor Switch for Cabinet/Wardrobe Doors (Individual output dimming)
This single sensor switch consists of one inductive sensor which can be switched on or off, without the need for a physical switch. It connects directly to an individual output of our Cabinet LED driver range. It can also be wired in series to a standard 12V/24V power supply. Rated for either 12V/24V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications.
What is the operation of this 12/24V DC single sensor switch for cabinet/wardrobe doors?
The operation is simple, the sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V/24V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number: SDS-2C
Product Type: 5V/12V/24V DC black single sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 5V-24V DC
Max Output Current: 3A
Maximum Power: 60W (12V) 120W (24V)
Detection Range: < 6cm
Design
Material: PVC plastic
Finish: Black
Dimensions
Size: Ø 12 x 13 mm
Outer Flange Size: 10mm
Cutout hole: Ø 8 mm
Cutout Depth: 12mm
Total Length: 13mm
Total tail distance: 2.5M
Sensor Tail length: 1M
Extension Tail: 1.5M (To supply)
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Cutout hole: Ø 8 mm
Cutout Depth: 12mm
Guarantee
Certification: CE, UKCA, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
This black finished master double door sensor offers simple on/off illumination when dual cabinet doors are opened and shut. It connects to the master output of our 12V cabinet LED driver range.
--
*In Stock UK - 12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Black)
12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (master all outputs dimming)
This double sensor switch consists of two inductive sensors which are can be switched on or off, without the need for a physical switch. It connects directly to a master output of our 12V Cabinet LED driver range. Rated for either 12V/24V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications
What is the operation of this 12/24V DC double sensor switch for cabinet/wardrobe doors?
The operation is simple, each sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V/24V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of 12V Cabinet LED driver and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number:
Product Type: 12/24V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12-24V DC
Max Output Current: 5A
Maximum Power: 60W (12V) 120W (24V)
Design
Material: PVC plastic
Finish: Black
Dimensions
Size: Ø 12 x 13 mm
Cutout: Ø 10 mm
Length: 170mm
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
[VIDEO] What is a 12V-24V LED double door micro sensor?
This black finished double door sensor offers simple on/off illumination when dual cabinet doors are opened and shut. Complete with two individual sensors for individual door sensing.
--
*In Stock UK - 12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Black)
12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Individual output dimming)
This double sensor switch consists of two inductive sensors which are can be switched on or off, without the need for a physical switch. It connects directly to an individual output of our Cabinet LED driver range. Rated for either 12V/24V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications
What is the operation of this 12/24V DC double sensor switch for cabinet/wardrobe doors?
The operation is simple, each sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V/24V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number:
Product Type: 12/24V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12-24V DC
Max Output Current: 5A
Maximum Power: 60W (12V) 120W (24V)
Design
Material: PVC plastic
Finish: Black
Dimensions
Size: Ø 12 x 13 mm
Cutout: Ø 10 mm
Length: 170mm
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
This plug & play silver recessed LED spot light is ideal for kitchen cabinet and furniture displays. It provides a 4000K neutral white light temperature and consumes just 1.5W of power. Easy setup & economic.--4000K Silver Recessed Spot Light with 2000mm tail. 12V
A sleek, plug & play low profile recessed furniture LED spot light that's ideal for cabinet illumination. Finished in silver with a 4000K colour temperature it provides great working light for kitchen surfaces. At just 1.5W energy consumption it's an eco friendly micro LED downlight that's built to last. 12V rated.
Product Compatibility
This product works well with our range plug & play 12V cabinet LED drivers
24W 6 Output Cabinet LED Driver (12V) With Mains Lead
60W 6 Output Cabinet LED Driver (12V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: RD40-MS-12
Colour Temperature: 4000K neutral white
Product Type: Recessed Cabinet LED Downlight / Spotlight
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12V DC
Power Consumption: 1.5W (12V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Anodized Silver (Top), Stainless Steel (Bottom)
Dimensions
Outer flange: Ø 35mm diameter
Cutout hole: Ø 28mm (spring clip mounted)
Depth: 12mm
Installation
Mounting: Recessed spring clip, x2 screws spring clip holders.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
60W 7 Output Cabinet Display LED Driver 12V
*Includes x1 white coloured 1M (1000mm) UK mains plug to C7 kettle lead.
This 7 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 60W capacity and 7 micro connectors upto x7 12V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 7 micro connectable outputs you can easily run 7 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 204mm x 56mm x 18.5mm
Wiring
7 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 12V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (54W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 4mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with IP20 rating are perfect for inside applications.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this PowerUp 100W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 7 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-60W
Input Voltage: 200-240V
Output Voltage: 12V +/- 5%
AC Input Current: 0.36A
3A Port: 7
5A Port: 1
Outputs: x7 micro connectors
Wattage: 60W
Voltage: 12V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V 2 core single colour LED tape strip or 12V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.

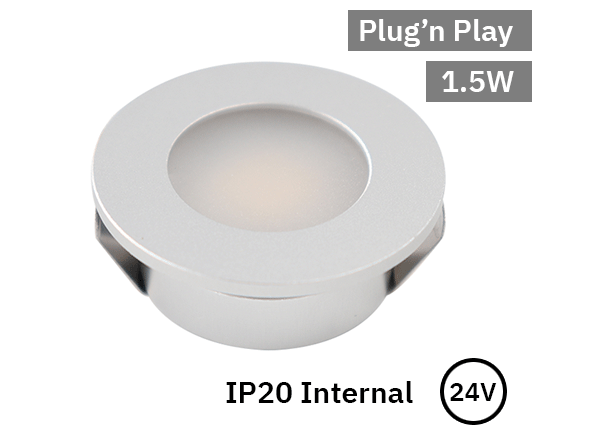

This plug & play silver recessed LED spot light is ideal for kitchen cabinet and furniture displays. It provides a 4000K neutral white light temperature and consumes just 1.5W of power. Easy setup & economic.--6000K Silver Recessed Spot Light with 2000mm tail. 24V
A sleek, plug & play low profile recessed furniture LED spot light that's ideal for cabinet illumination. Finished in silver with a 6000K colour temperature it provides great working light for kitchen surfaces. At just 1.5W energy consumption it's an eco friendly micro LED downlight that's built to last. 24V rated.
Product Compatibility
This product works well with our range plug & play 24V cabinet LED drivers
30W 6 Output Cabinet LED Driver (24V) With Mains Lead
60W 6 Output Cabinet LED Driver (24V) With Mains Lead
100W 6 Output Cabinet LED Driver (24V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: RD60-MS-24
Colour Temperature: 6000K cool white
Product Type: Recessed Cabinet LED Downlight / Spotlight
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 24V DC
Power Consumption: 1.5W (24V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Anodized Silver (Top), Stainless Steel (Bottom)
Dimensions
Outer flange: Ø 35mm diameter
Cutout hole: Ø 28mm (spring clip mounted)
Depth: 12mm
Installation
Mounting: Recessed spring clip, x2 screws spring clip holders.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
This plug & play silver recessed LED spot light is ideal for kitchen cabinet and furniture displays. It provides a 4000K neutral white light temperature and consumes just 1.5W of power. Easy setup & economic.--6000K Silver Recessed Spot Light with 2000mm tail. 12V
A sleek, plug & play low profile recessed furniture LED spot light that's ideal for cabinet illumination. Finished in silver with a 6000K colour temperature it provides great working light for kitchen surfaces. At just 1.5W energy consumption it's an eco friendly micro LED downlight that's built to last. 12V rated.
Product Compatibility
This product works well with our range plug & play 12V cabinet LED drivers
24W 6 Output Cabinet LED Driver (12V) With Mains Lead
60W 6 Output Cabinet LED Driver (12V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: RD60-MS-12
Colour Temperature: 6000K cool white
Product Type: Recessed Cabinet LED Downlight / Spotlight
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 12V DC
Power Consumption: 1.5W (12V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Anodized Silver (Top), Stainless Steel (Bottom)
Dimensions
Outer flange: Ø 35mm diameter
Cutout hole: Ø 28mm (spring clip mounted)
Depth: 12mm
Installation
Mounting: Recessed spring clip, x2 screws spring clip holders.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
This plug & play silver recessed LED spot light is ideal for kitchen cabinet and furniture displays. It provides a 4000K neutral white light temperature and consumes just 1.5W of power. Easy setup & economic.--4000K Silver Recessed Spot Light with 2000mm tail. 24V
A sleek, plug & play low profile recessed furniture LED spot light that's ideal for cabinet illumination. Finished in silver with a 4000K colour temperature it provides great working light for kitchen surfaces. At just 1.5W energy consumption it's an eco friendly micro LED downlight that's built to last. 24V rated.
Product Compatibility
This product works well with our range plug & play 24V cabinet LED drivers
30W 6 Output Cabinet LED Driver (24V) With Mains Lead
60W 6 Output Cabinet LED Driver (24V) With Mains Lead
100W 6 Output Cabinet LED Driver (24V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: RD40-MS-24
Colour Temperature: 4000K neutral white
Product Type: Recessed Cabinet LED Downlight / Spotlight
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 24V DC
Power Consumption: 1.5W (24V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Anodized Silver (Top), Stainless Steel (Bottom)
Dimensions
Outer flange: Ø 35mm diameter
Cutout hole: Ø 28mm (spring clip mounted)
Depth: 12mm
Installation
Mounting: Recessed spring clip, x2 screws spring clip holders.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
This plug & play silver recessed LED spot light is ideal for kitchen cabinet and furniture displays. It provides a 3000K warm white light temperature and consumes just 1.5W of power. Easy setup & economic.--3000K Silver Recessed Spot Light with 2000mm tail. 24V
A sleek, plug & play low profile recessed furniture LED spot light that's ideal for cabinet illumination. Finished in silver with a 3000K colour temperature it provides great working light for kitchen surfaces. At just 1.5W energy consumption it's an eco friendly micro LED downlight that's built to last. 24V rated.
Product Compatibility
This product works well with our range plug & play 24V cabinet LED drivers
30W 6 Output Cabinet LED Driver (24V) With Mains Lead
60W 6 Output Cabinet LED Driver (24V) With Mains Lead
100W 6 Output Cabinet LED Driver (24V) With Mains Lead
PDF & Downloads
Specifications
General
Part Number: RD30-MS-24
Colour Temperature: 3000K warm white
Product Type: Recessed Cabinet LED Downlight / Spotlight
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: 24V DC
Power Consumption: 1.5W (24V)
Cable: 2 core white + / grey white - tail with micro connector for plug & play.
Design
Material: Aluminium - PC
Finish: Anodized Silver (Top), Stainless Steel (Bottom)
Dimensions
Outer flange: Ø 35mm diameter
Cutout hole: Ø 28mm (spring clip mounted)
Depth: 12mm
Installation
Mounting: Recessed spring clip, x2 screws spring clip holders.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 50g
This silver double door sensor switch works with 12V/24V LED supplies, LED tape & components. A simple, elegant pair of automatic switches for use in wardrobes, cabinet and displays.
12-24V Double Sensor Switch for Wardrobe or Cabinet Doors PDF--*In Stock UK - 12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Silver)
12/24V DC Double Sensor Switch for Cabinet/Wardrobe Doors
This double sensor switch consists of two inductive sensors which are can be switched on or off, without the need for a physical switch. Rated for either 12V/24V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications
What is the operation of this 12/24V DC double sensor switch for cabinet/wardrobe doors?
The operation is simple, each sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V/24V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
12-24V Double Sensor Switch for Wardrobe or Cabinet Doors PDF
Specifications
General
Part Number: UR-ZG-5C4
Product Type: 12/24V DC double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Unbranded
Electrical
Voltage: 12-24V DC
Max Output Current: 5A
Maximum Power: 60W (12V) 120W (24V)
Design
Material: Aluminium - PC
Finish: Silver/Chrome
Dimensions
Size: Ø 12 x 13 mm
Cutout: Ø 10 mm
Length: 170mm
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
Certification: CE, RoHS
Warranty: 3 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
60W 7 Output Cabinet Display LED Driver 24V
*Includes x1 black coloured 2M (2000mm) UK mains plug to C7 kettle lead.
This 7 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 60W capacity and 7 micro connectors upto x6 24V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 7 micro connectable outputs you can easily run 7 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 204mm x 56mm x 18.5mm
Wiring
7 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (54W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 4mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with IP20 rating are perfect for inside applications.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this PowerUp 100W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 7 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-60W
Input Voltage: 200-240V
Output Voltage: 24V +/- 5%
AC Input Current: 0.36A
3A Port: 7
5A Port: 1
Outputs: x7 micro connectors
Wattage: 60W
Voltage: 24V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
24W 5 Output Cabinet Display LED Driver 24V
*Includes x1 black coloured 2M (2000mm) UK mains plug to C7 kettle lead.
This 5 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 24V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 5 micro connectable outputs you can easily run 5 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 24W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 136mm x 54mm x 18.5mm
Wiring
5 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 24W - 10% (21.6W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 54mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 24V 24W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 5 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-24W
Input Voltage: 200-240V
Output Voltage: 24V +/- 5%
AC Input Current: 0.36A
3A Port: 5
Outputs: x5 micro connectors
Wattage: 24W
Voltage: 24V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
24W 5 Output Cabinet Display LED Driver 12V
This 5 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 12V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 5 micro connectable outputs you can easily run 5 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 24W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 136mm x 54mm x 18.5mm
Wiring
5 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 12V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 24W - 10% (21.6W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 54mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 12V 24W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 5 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-24W
Input Voltage: 200-240V
Output Voltage: 12V +/- 5%
AC Input Current: 0.36A
3A Port: 5
Outputs: x5 micro connectors
Wattage: 24W
Voltage: 12V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V 2 core single colour LED tape strip or 12V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
60W 7 Output Cabinet Display LED Driver 12V
Note: This driver requires a UK/Euro/US C7 Mains lead.This 7 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 60W capacity and 7 micro connectors upto x7 12V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 7 micro connectable outputs you can easily run 7 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 204mm x 56mm x 18.5mm
Wiring
7 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 12V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (54W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 4mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with IP20 rating are perfect for inside applications.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this PowerUp 100W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 7 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-60W
Input Voltage: 200-240V
Output Voltage: 12V +/- 5%
AC Input Current: 0.36A
3A Port: 7
5A Port: 1
Outputs: x7 micro connectors
Wattage: 60W
Voltage: 12V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 12V 2 core single colour LED tape strip or 12V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
24V 5 Output Constant Voltage Furniture LED Driver 24W Max With Sensor Dimmable.
*Does not include UK mains plug to C7 kettle lead.
This 5 multi-port slimline cabinet LED driver by Uprise offers quick and simple connection to single colour LED tape lights. An integral part to any LED light project.
Ideal for areas where space is limited and a thin LED power source is required. With it’s 24W capacity and 5 micro connectors upto x5 24V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 5 multi-port outputs allowing you to easily run 5 separate LED lights.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 24W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 136mm x 54mm x 18.5mm
Wiring
5 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 24W - 10% (21.6W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 54mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this Uprise 24V 24W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Colour consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 5 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-24W
Input Voltage: 200-240V
Output Voltage: 24V +/- 5%
AC Input Current: 0.36A
3A Port: 5
Outputs: x5 micro connectors
Wattage: 24W
Voltage: 24V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
60W 7 Output Cabinet Display LED Driver 24V
Note: This driver requires a UK/Euro/US C7 Mains lead.This 7 output, slimline cabinet LED driver by Uprise offers quick and simple PowerUp to single colour LED tape lights. Ideal for areas where space is limited and a thin LED power source is required. With it’s 60W capacity and 7 micro connectors upto x6 24V LED products / LED tape strips can be connected effortlessly. Compatible with next generation hand wave sensors as well as single and double door sensors means turning your lighting setup on/off has never been easier. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Outputs
With 7 micro connectable outputs you can easily run 7 separate LED areas or shelves.
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18.5mm depth for hidden installation. 204mm x 56mm x 18.5mm
Wiring
7 outputs with micro connection terminals. Keep wiring tidy and professional.
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (54W) to build in a safety buffer.
Application
A thin and functional LED driver that’s best suited for fitouts within cabinet displays, under pelmets, shelves, signage and within coves. It’s also suited for many other applications whereby space is limited and multiple lengths of LED strips are desired.
The driver is only 4mm wide and standard IP20 rated. This provides complete protection against solid items over 12.5mm like finger touch. LED strip lights with IP20 rating are perfect for inside applications.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create a stunning, continuous visual aesthetic within the home, add beauty to your walk in wardrobes, designer cabinets, or prestigious wine racks by combining this PowerUp 100W LED driver with a range of our seamless cob LED tape lights.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Uprise offers a wide variety of wall & DMX controllers, receivers and Dali, 0-10v dimmers, Triac Dimming (Mains) and alternatives. For splendid visual aesthetics and end dimming results, you can also view the Dim to Warm & Seamless COB flexible LED strip
Specifications
General
Product Type: 7 output cabinet LED driver
IP Rating: IP20
Brand: Uprise
Electrical
Power Range: 18W-60W
Input Voltage: 200-240V
Output Voltage: 24V +/- 5%
AC Input Current: 0.36A
3A Port: 7
5A Port: 1
Outputs: x7 micro connectors
Wattage: 60W
Voltage: 24V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch
Dimensions
Width: 54mm
Height: 18.5mm
Length: 136mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 3 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 0116 406 2959 or email us at sales@uprisemed.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
This black finished double door sensor offers simple on/off illumination when dual cabinet doors are opened and shut. Complete with two individual sensors for individual door sensing.
--
*In Stock UK - 12V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Black)
12V DC Double Sensor Switch for Cabinet/Wardrobe Doors (Individual output dimming)
This double sensor switch consists of two inductive sensors which are can be switched on or off, without the need for a physical switch. It connects directly to an individual output of our 12V Cabinet LED driver range. Rated for either 12V LED strip lights for a complete integrated solution within kitchen cabinets, wardrobes and walk in wardrobes, display cabinets and other furniture / shelf fitout applications
What is the operation of this 12V DC double sensor switch for cabinet/wardrobe doors?
The operation is simple, each sensor acts as a contactless switch allowing for automatic turn on/off of any connected LED tape light or 12V LED accessory. When movement is detected by opening or closing a left/right door of a cabinet or wardrobe the sensor will illuminate (on) or power down (off).
This sleek, beautifully finished solution offers a simple and automatic way to light on/off within the home or commercial space.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number: DDS-2C-B
Product Type: 12V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Connection
Sensors: x2 Black Micro Sensors
Head Cable Distance: 1.5M - 3 Pin Connector > 110mm 3 core flat cable > Central Processor > x1 500mm Male Connector / x1 500mm Female Connector
Product Type: 12V DC black double sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Electrical
Voltage: 12V DC
Max Output Current: 5A
Maximum Power: 60W (12V)
Design
Material: PVC plastic
Finish: Black
Dimensions
Outer Flange: Ø 12 mm
Cutout: Ø 10-11 mm
Depth: 11mm
Installation
Mounting: Surface mount, x2 screws for sensor holders. Slip in/out. Or cutout hole mount.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: Plastic bag
Net Weight: 90
A sleek, simple to setup touch dimmer sensor. Includes on/off and touch and hold dimming up and down to control system LED lights. Finished in chrome silver with blue illuminated halo when powered up.
--
Mini Dimmable Touch Switch Sensor for LED Strips
A touch sensitive on-off micro dimmer switch that is simple to install. Simply click into one of our 12V plug and play cabinet LED drivers and press for on/off functionality. By gently touching the switch for a few seconds you can dim up/down system connected LED lights. When powered up it emanates with a low key, brilliant blue halo offering a stylish, more complete look.
The micro connector can also be cut off revealing a positive and negative wiring cores (2 core flat cable), indicated as white (+) /grey dotted line (-) which can be wired in series to your LED circuit.
This ready to connect mini light dimmer is ideal for kitchen cabinet lighting. Simply turn on/off and dim COB LED strip lights, Undercabinet lights and recessed spot lights with ease.
* LED Strip, light sources and other accessories not included.
Product Compatibility
This product works well with our range of cabinet LED drivers and seamless COB LED tape lights.
PDF & Downloads
Specifications
General
Part Number:
Product Type: 12V touch on/off sensor switch for kitchen cabinets, walk in wardrobes, retail displays
Use: Indoor
IP Rating: IP20
Brand: Uprise
Electrical
Voltage: Compatible with 12V
Max Output Current: 5A
Maximum Power: 60W (5A in 12V)
Design
Material: Aluminium - PC
Finish: Silver/Chrome
Dimensions
Height: 13.5mm excluding cables
Width: 20mm Diameter including rim (outer flange)
Cutout: Ø 17.3 mm
Length: 170mm
Installation
Mounting: Surface, x2 screws for sensor holders. Slip in/out.
Guarantee
Certification: CE, RoHS
Warranty: 2 Years
Life Span: 30,000 Hours
Packaging
Packaging: White cardboard box
Net Weight: 90g
Question: Does this touch dimmer switch remember it's setting on mains power on/off
Answer: No, it does not remember the last saved setting if the power source is turned on and off or vice versa. It will only remember the dimmer level if the system is always turned on.
POWERUP 60W Constant Voltage Furniture LED Driver (24V)
Note: This driver requires a UK/Euro/US C7 Mains lead.This 60W cabinet LED driver can power 24V LED products including no dot LED strip lights. The value innovation comes when combined with our 1UP (GO) 6CH LED control box that allows for 6 output LED control and syncronous dimming via a single channel remote handset. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Compatible system products
6 Way Controller Receiver: 6CH Single Colour Wifi Connectable Controller Receiver (12V-24V)Remote Handset: Single Colour Remote Control 4 Zone (Black)
Outputs
Single output
6 outputs for LED accessories when combined with 1UP (GO) or 2UP wireless LED control boxes (allows for remote handset / phone app control). Ideal for cabinet shelves or kitchen feature lighting.
Features
100-240VAT Input
Single channel (1) constant voltage output, Maximum total output 60W
Ultra slimline design, light weight and high efficiency
Over-load / Short circuit protection
Suited for indoor (internal) LED lighting applications
5 Year, 50,000 hour warranty as standard
Applications
Cabinets, Shelves, Walkin-wardrobes, Integrated Light lines, Undercabinet Lighting
Coving, Architectural features,
Residential - Kitchens, Bedrooms, Conservatories, Home AV, Media Units,
Commercial - Retail, window displays, Hotel, lobbies, conference rooms,
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18mm depth for hidden installation. 164mm x 55mm x 18mm
Wiring
Mains > UK Mains Plug to C7 connector > PWR-UP-60-24
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V COB LED strip lights, marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed 60W - 10% (54W) to build in a safety buffer.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create an easy, fast setup for any environment. Just click and connect this plug and play system to create stunning, continuous LED light aesthetics.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Specifications
General
Product Type: Constant voltage furniture LED driver
IP Rating: IP20
Brand: POWERUP
Electrical
Power Range: 18W-60W
Input Voltage: 200-240V
Output Voltage: 24V +/- 5%
AC Input Current: 0.36A
Wattage: 60W
Voltage: 24V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch / Wood Sensor (Hidden sensor)
Dimensions
Width: 55mm
Height: 18mm
Length: 164mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
6CH Single Colour Wifi Connectable Controller Receiver (12V-24V)
This optional accessory 6CH single colour controller is compatible with either our 60W 12V (PWR-UP-60-12) / 24V (PWR-UP-60-24) cabinet LED driver. It allows for 6 way distribution and synchronises via wifi smart app / RF remote handset control. Download Cabinet LED Drivers Q&A Sheet PDF for more support.
Connections
Compatible Connections for PWR-UP-60-24 / PWR-UP-60-12
6 outputs for LED accessories
Features
6 connector port outputs for LED accessories
Sensor Port for wide array of sensor options
Single colour Remote Handset compatibility with easy match key setup.
Dimming via Handset / App
Applications
Cabinets, Shelves, Walkin-wardrobes, Integrated Light lines, Undercabinet Lighting
Coving, Architectural features,
Residential - Kitchens, Bedrooms, Conservatories, Home AV, Media Units,
Commercial - Retail, window displays, Hotel, lobbies, conference rooms,
Connectable Accessories
Connect a hand wave, touch, or even a single door or double sensor (inline or master).
Power Consumption
This cabinet LED driver is rated at 60W.
Size
Ultra thin design at just 18mm depth for hidden installation. 53mm (60mm inc connector) x 55mm x 18mm
Wiring
Mains > UK Mains Plug to C7 connector > PWR-UP-60-24 / PWR-UP-60-12 > 1UP (GO) > LED Accessories
Testing
100% full load age testing, consistent with world lighting safety standards.
Circuit Protection
Open circuit, short circuit, overload and overheating protection.
Standards
All of our Uprise LED drivers are TUV/CE/SAA/ETL/FCC approved.
Choose your lengths
This product is compatible with all our 24V COB LED strip lights, marker LED downlights, cabinet pad downlights, seamless cob and single colour LED tape lights. Simply decide the lengths required and ensure that the total wattage across all lengths when totalled does not exceed the connected power supply e.g 60W - 10% (54W) to build in a safety buffer.
IP Rating
This LED supply is IP20 rated and suitable for internal applications.
Environments
Create an easy, fast setup for any environment. Just click and connect this plug and play system to create stunning, continuous LED light aesthetics.
Quality Assurance
Uprise believes in long-term value, which is why our enterprise class LED tape lights include high-quality, long lasting components. Color consistency and uniformity are important for the right finish for all our LED strips.
Specifications
General
Product Type: Constant voltage furniture LED driver
IP Rating: IP20
Brand: POWERUP
Electrical
Power Range: 18W-60W
Input Voltage: 200-240V
Output Voltage: 24V +/- 5%
AC Input Current: 0.36A
Wattage: 60W
Voltage: 24V
Surge Protection: 1.5Kv
Sensor Connectivity
Sensor Port: PHB 2.0
Sensor Compatibility: Hand Wave Sensor / Touch Sensor / Single Door Switch / Double Door Switch / Wood Sensor (Hidden sensor)
Dimensions
Width: 55mm
Height: 18mm
Length: 164mm
Installation
Mounting: x2 Screws
Guarantee
Certification / Standards: CE, SELV, RoHS, UKCA
Warranty: 5 Years
Packaging
Packaging: White cardboard box
Net Weight: 375g
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. You will be provided with a quotation, wiring diagram and support documentation to help get the result you deserve.
What style of LED tape lights is this compatible with?
This driver is compatible with any 24V 2 core single colour LED tape strip or 24V LED source such as lamps, battens or marker LEDs. Contact us for more information.
How can I buy?
You either buy individual components online or call us on 07957 180 481 or email us at sales@upriseled.com and a member of our team will help you with your project.
What support will I receive once I’ve purchased?
Our aim is to ensure you get an end result that you are completely satisfied with, we’re here to help.
High quality, simple to fit micro spot lights that are ideal for undercabinet lighting. Compatible with our plug and play LED drivers, range of sensor switches and 2M extension cables. Quick fit for speedy result!
